Fakty
founded in Paris
% subsidiary of Wieland-Werke AG
in Cluses
warehouses in Marne-la-Vallée (77), Cluses (74), Jarnac (16) and Yzengremer (80)
Lokalizacje
Globalna bliskość, na którą możesz liczyć

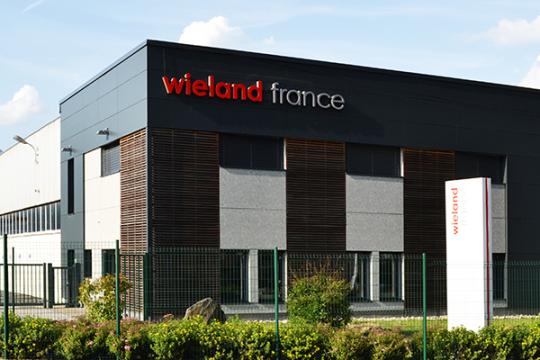

Wieland France SAS
Wieland France SAS
30 Av. de la Colombière
74950
Scionzier
France

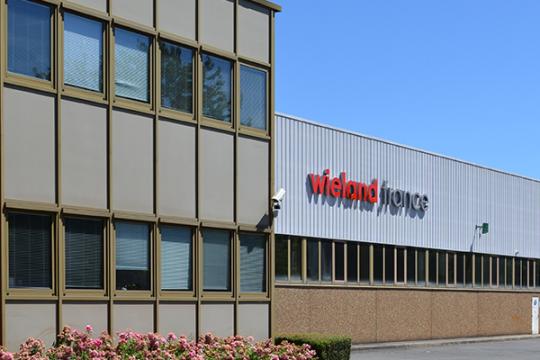

Wieland France SAS | Croissy-Beaubourg
Wieland France SAS
1 rue Léon Jouhaux, PA Pariest
77183
Croissy-Beaubourg
France

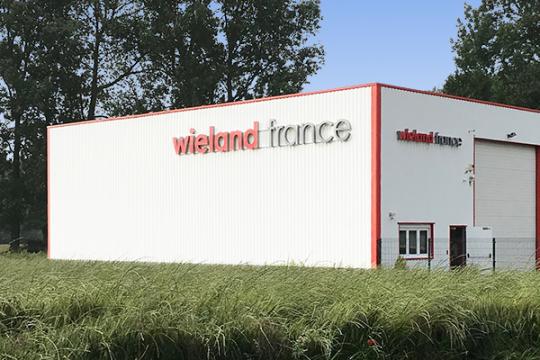

Wieland France SAS | Yzengremer
Wieland France SAS
4 rue des Quatre Vents
80520
Yzengremer
France
Wieland France SAS | Jarnac
Wieland France SAS
65 avenue d'Ecosse
16200
Jarnac
France
Asortyment produktów
Nasze produkty w skrócie
Grupy produktów
Headline
Powrót do asortymentu produktówDrut
Pręty
ecoline®: rozwiązania bezołowiowe
Cooperage strips
Linus® vine stakes
Other range of vine stakes
Planting stakes
Tresslising wires
Accessories
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS | Norma JIS |
---|---|---|---|---|
Z12 | CuZn35Pb2 | CW601N | C34200 / C34500 | |
Z21 | CuZn38Pb2 | CW608N | C3713 | |
Z23 | CuZn36Pb3 | CW603N | C36000 | |
Z32/Z33 | CuZn39Pb3 | CW614N | C38500 |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
eco M58® | CuZn42 | CW510L | - |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
eco SW1® | CuZn21Si3P | CW724R | C69300 |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
N31 | CuNi7Zn39Pb3Mn2 | CW400J | - |
Materiały
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
K41 | CuNi1Pb1P* | - | C19150 / C19160 |
KC1 | CuPb1P | CW113C | C18700 |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS | Norma JIS |
---|---|---|---|---|
Z11 | CuZn35Pb1 | CW600N | C34000 | |
Z12 | CuZn35Pb2 | CW601N | C34200 / C34500 | |
Z14 | CuZn37Pb2 | CW606N | C35300 | |
Z21 | CuZn38Pb2 | CW608N | C3713 | |
Z23 | CuZn36Pb3 | CW603N | C36000 | |
Z29 | CuZn39Pb2 | CW612N | C37700 | |
Z31/Z41/Z48 | CuZn40Pb2 | CW617N | C38000 | |
Z32/Z33 | CuZn39Pb3 | CW614N | C38500 | |
Z40 | CuZn43Pb2Al | CW624N | - | |
Z43 | CuZn33Pb1AlSiAs | CW725R | - | |
Z45/Z46 | CuZn36Pb2As | CW602N | C35330 |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
eco M58® | CuZn42 | CW510L | - |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
S40 | CuZn37Mn3Al2PbSi | CW713R | C67420 |
eco SW1® | CuZn21Si3P | CW724R | C69300 |
eco SZ2® | CuZn36Si1P | CW726R | C68370 |
eco SZ3® | CuZn40SiP | - | - |
eco SZ4® | CuZn42 | CW510L | - |
eco SZ5® | CuZn40 | CW509L | C27450 |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
B09/B10 | CuSn8 | CW453K | C52100 |
B44/B45 | CuSn4Pb4Zn4 | CW456K | C54400 |
eco BS4® | CuSn5NiPS* | - | - |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
U33 | CuAl10Ni5Fe4 | CW307G | C63000 |
Learn more about
Wieland ecoline
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS | Norma JIS |
---|---|---|---|---|
K19 | Cu-DHP | CW024A | C12200 | C1220 |
K32 | Cu-ETP | CW004A | C11000 | C1100 |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
Z30 | CuZn39Pb2 | CW612N | C37700 |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS | Norma JIS |
---|---|---|---|---|
M10 | CuZn10 | CW501L | C22000 | C2200 |
M15 | CuZn15 | CW502L | C23000 | C2300 |
M37 | CuZn37 | CW508L | C27200 | C2720 |
Wieland | Oznaczenie materiału EN | Norma EN | Norma ASTM UNS |
---|---|---|---|
N12 | CUNi12Zn24 | CW403J | C75700 |
Available materials
Wieland | EN | EN-Nr. | UNS |
K08 | Cu-OFE | CW009A | C10100 |
K12 | Cu-HCP | CW021A | C10300 |
K20 / K21 / K28 | Cu-DHP | CW024A | C12200 |
K30 | Cu-OF | CW008A | C10200 |
K65 | CuFe2P | CW107C | C19400 |
L10 | CuNi10Fe1Mn | CW352H | C70600 |
L30 | CuNi30Mn1Fe | CW354H | C71500 |
Formy dostawy
- Cewki z uzwojeniem poziomym: 100 kg, 150 kg, 300 kg, 530 kg
- Odcinki proste
- Pierścienie
Dostępne materiały
Wieland | EN | EN-Nr. | UNS |
K20 / K21 / K28 | Cu-DHP | CW024A | C12200 |
Dostępne materiały
Wieland | EN | EN-Nr. | UNS |
K20 / K21 / K28 | Cu-DHP | CW024A | C12200 |
K65 | CuFE2P | CW107C | C19400 |
Strips available in the following sizes
Thicknesses: 1.6 to 5 mm
Widths: 25 to 90 mm
Other qualities and other dimensions on request
A true reference in trellising, our Linus® range ensures you the best selection of profiles and notching systems to meet the requirements of your specifications (structure, productivity, mechanization).
Linus® posts are entirely produced with S250GD-standard steels and continuously hot-dip coated with Galfan® (95% zinc and 5% aluminum).
For nonstandard lengths and specific notches, please contact us.
Row post Linus® Optinus
- Steel thicknesses: 1.5 mm and 1.8 mm
- Steel quality: S250GD
- Galfan/Hot dip galvanization
- Linus® Certified marking
- Hybrid notches
Download the technical data sheet
Row post Linus® Vignus
- Steel thicknesses: 1.5 mm and 1.8 mm
- Steel quality: S250GD
- Galfan/Hot dip galvanization
- Linus® Certified marking
- Hybrid notches
Download the technical data sheet
Row post Linus® 5094 Lift
- Steel thicknesses: 1.5 mm and 1.8 mm
- Steel quality: S250GD
- Galfan/Hot dip galvanization
- Linus® Certified marking
- N + Lift notches
End post Linus® 5395
- Steel thicknesses: 1.5 mm and 1.8 mm
- Steel quality: S250GD
- Galfan/Hot dip galvanization
- Linus® Certified marking
- Hole every 10 cm
The profiled posts in this range are available in Z275, ZAM, Immersion galvanization or in CORTEN steel.
Row post Picpal
- Thicknesses 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- H/N/U notches
Download the technical data sheet
Row post Palis
- Thickness 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- H/N/U notches
Download the technical data sheet
Row post ER3030
- Thickness 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- Post with latches/exterior latches
Download the technical data sheet
Row post ER4332
- Thickness 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- Post with latches/exterior latches
Download the technical data sheet
Row post ER5035
- Thickness 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- Post with latches/exterior latches
Download the technical data sheet
Short cut post
- Thickness 1.8 mm, 2 mm, and 2.5 mm
- DX51 steel
- Z275 coating
- To be installed with stainless-steel V rod
Download the technical data sheet
End post Palis 50×53
- Thickness 2 mm
- DX51 steel
- Z275 coating/immersion
- Drilling every 10 cm
Download the technical data sheet
End post Palis 55×41
- Thickness 2 mm
- DX51 steel
- Z275 steel
- Drilling every 10 cm
Download the technical data sheet
Galvanized U16 planting stake
- Wide section for better stability
- Thicknesses 1.2 mm/1.5 mm/
1.8 mm - All lengths on request
Download the technical data sheet
Galvanized P8 planting stake
- Closed profile for better resistance
- Thickness 1 mm
- All lengths on request
Download the technical data sheet
Galvanized notched planting stake
- Galvanized steel diameter 7mm
- Strong resistance
- Other diameters and lengths on request
Download the technical data sheet
Linfil
- High-performance vine wire with Galfan® coating (zinc + aluminum) for a longer life.
- Higher tensile strength and breaking load than richly galvanized wires.
- Low elongation to reduce maintenance times.
Download the technical data sheet
Fil inox
- 18/8.5 stainless-steel wire for exceptional durability
- Breaking load 1350 N/mm²
- Max. elongation 3%
- Work-hardened or annealed stainless steel (anchoring)
Download the technical data sheet
To complete and easily upgrade your trellising, Wieland offers you a wide range of accessories that can be adapted to its products or customized:
- Staples for planting stakes
- Adapters for synthetics wires
- Chains
- Setting system for wires
- Spreaders
- Punching tools
- Stainless-steel pins
- Elevation system
Other special and custom-made accessories on request
