| ASTM-UNS No. | Wieland Designation | EN Designation | EN No. | JIS No. | Data Sheet | ||
|---|---|---|---|---|---|---|---|
| C10100 | K08 | Cu-OFE | CW009A | - | download | ||
| C10300 | K12 | Cu-HCP | CW021A | - | download | ||
| C12200 | K20/K21/K28 | Cu-DHP | CW024A | - | - | ||
| C10200 | K30 | Cu-OF | CW008A | - | download | ||
| C70600 | L10 | CuNi10Fe1Mn | CW352H | - | - | ||
| C71500 | L30 | CuNi30Mn1Fe | CW354H | - | - | ||
| C19400 | K65 | CuFe2P | CW107C | - | download |
Wieland smooth industrial tubes are available in multiple copper and copper alloy grades. Depending on the application, the portfolio covers tubes for CO₂ refrigeration systems, refrigeration and air-conditioning applications, freshwater systems, forming applications and solar thermal absorbers.

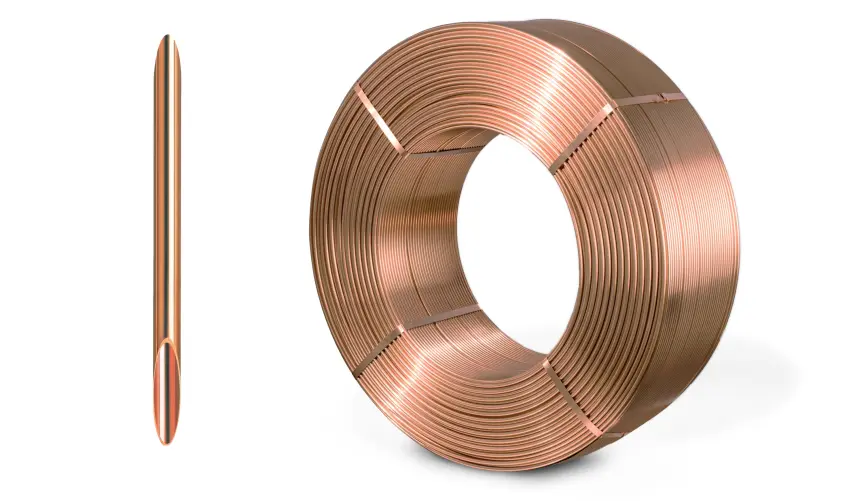

Different product variants are available with specific surface, forming, cleanliness, pressure resistance and delivery characteristics. Tubes can be supplied as level wound coils, straight lengths or rings, depending on the selected material and product quality.
Sustainable and efficient are two keywords that have become increasingly important, especially in refrigeration. Increased environmental awareness in society and industry has led to a renaissance of natural refrigerants, especially CO₂. Wieland supports this development with a tube system that meets the high requirements of CO₂ as a refrigerant.
cuproclima stands for high-quality seamless inside smooth or innergrooved copper tubes in level wound coils for the refrigeration and air-conditioning industries. The specified quality and inspection criteria exceed existing requirements of standards such as EN 12735-2 and ASTM.
cuproclean copper tubes are designed with an ultra-clean inner surface for industrial applications. The production process removes carbon film, resulting in higher reliability, longer life and reduced maintenance costs.
cuproclean is suitable for all freshwater applications. Copper offers versatility, excellent formability and good processing properties. cuproclean copper tubes are also available in combination with other qualities such as cuproform.
cuproform tubes are high-formable copper tubes. In boiler manufacture, for example, tubes may be formed by expanding, bending, upsetting and beading. Industrial copper tubes from conventional production do not always meet these high demands, which can make additional fittings from other materials necessary and increase production steps and costs.
cuproform is designed for applications where exceptional forming properties are required.
solarclean copper tubes are designed with a high-purity outer surface for solar thermal applications. In the manufacturing process of solar heat absorbers, requirements vary depending on the application. The solarclean® family offers different tube qualities for optimized fabrication.
solarclean® classic - The particularly clean tube surface supports a high-quality weld. This can save at least one cleaning operation or an extensive pre-treatment of the components to be welded.
solarclean® HP - Designed for heat pipes in vacuum tube collectors. The highest surface cleanliness on the tube outside and inside prevents contamination of the heat transfer medium in the heat pipe and supports system efficiency.
solarclean® plus - Improved forming properties for the fabrication of meander-shaped absorber tubes facilitate the setting of bending machines and increase process reliability. solarclean® plus provides super-clean tube surfaces and substantially improves the ultrasonic welding process.
solarclean® eco - The cost-effective alternative for laser welding of absorber plate and tubing with sufficient cleanliness.
solarclean® SL - Like solarclean classic, solarclean SL ensures super-clean tube surfaces. Depending on fabrication needs, solarclean can also be ordered in straight lengths.
| Materials | Conditions | Delivery Forms | Coil Weights | Available Dimensions | |
| K65® | K65 | soft and hard | Level wound coils or straight lengths | 100 kg, 150 kg, 300 kg | 5 - 28 mm for LWC; 5 - 110 mm for straight lengths |
| cuproclima® | Cu-DHP | Soft and extra soft | Level wound coils only | 100 kg, 150 kg, 300 kg | 4–28 mm, wall thicknesses on request |
| cuproclean® | Cu-DHP | Soft | Level wound coils | 100 kg, 150 kg, 300 kg | 6–28 mm, wall thicknesses on request |
| cuproform® | Cu-DHP | Soft and extra soft | Layer-wound coils and straight lengths | 100 kg, 150 kg, 300 kg, 530 kg | 6–28 mm for LWC; 6–64 mm for straight lengths |
| solarclean® | Cu-DHP | Hard, hard relaxed, half-hard | Layer-wound coils and straight lengths | 100 kg, 150 kg, 300 kg, 530 kg | 6–15 mm; wall thicknesses 0.3–1.2 mm |
Wieland smooth industrial tubes are used in refrigeration, air-conditioning, freshwater, forming and solar thermal applications. Depending on the selected product variant, the tubes are suitable for high-pressure CO₂ systems, heat exchangers, cooling ceilings, boilers or solar heat absorbers.
