cuprotherm® - Copper Tubes for Underfloor Heating and Surface Heating Systems

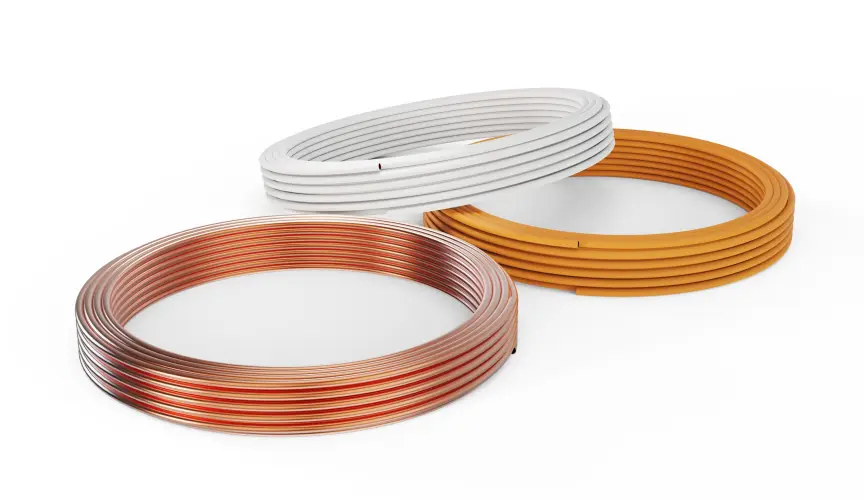

cuprotherm copper tubes combine the thermal conductivity of copper with system-ready design for underfloor and surface heating installations. Three variants cover every application: cuprotherm CTX-R for flexible sanitary and heating use, cuprotherm.plus for coated underfloor heating, and cuprotherm.blank for mastic asphalt screeds. All variants are based on seamlessly drawn Cu-DHP copper tube to EN 1057.

Additional information

Overview Product Variants Typical Applications

Why copper is the right choice for surface heating

Surface heating tubes are embedded in screed or wall construction for decades – with no option for replacement. The material must remain dimensionally stable under constant thermal cycling, stay fully diffusion-tight to prevent oxygen ingress, and transfer heat efficiently to the floor surface above.

Copper meets all three requirements without compromise: it is 100% diffusion-tight, thermally superior to polymer alternatives, and retains its mechanical properties across the full operating temperature range up to 95°C. cuprotherm tubes conform to EN 1057 and carry the quality mark.

Key Benefits

100% diffusion-tight – no oxygen ingress, no system sludge
High thermal conductivity for efficient heat transfer
Long service life – compatible with all standard screed types
Conforms to EN 1057, quality mark confirmed

Cuprotherm® Variants – The Right Tube For Every Installation

cuprotherm CTX^® – for flexible heating and cooling applications

›

cuprotherm CTX tubes are copper tubes with a firmly adhering coating. Their structure makes them easy to process and gives them a level of flexibility that is unusual for metal tubes. CTX tubes are a technically high-quality and economically interesting solution with an attractive price per meter under stable conditions, supporting reliability in planning.

Fields of application

Heating
Cooling
Radiator connection
Rainwater harvesting systems
Ground collectors, water/glycol
Concrete core activation

Technical features

Flexible copper tube made of pure copper Cu-DHP
Temper: soft R220 according to EN 1057
Firmly adhering coating made of PE-RT
Fire behavior: EN 13501-1, class E
Color of coating: white, similar to RAL 9010, pure white
Temperature application range: up to 100 °C

cuprotherm.plus – for surface heating and cooling

›

cuprotherm is Europe’s most frequently installed copper underfloor heating system. The long service life of cuprotherm copper tubes supports durable surface heating systems. Due to the high thermal conductivity of copper, efficient use in this application is also economically beneficial in the long term.

The orange coating provides mechanical and chemical protection from the outside and allows the cuprotherm tube to expand unhindered in length when temperature changes occur.

Fields of application

Surface heating and cooling
Wall heating
Industrial surface heating
Sports floor heating

Technical properties

Design according to EN 1057
Fire resistance: EN 13501-1-E
Building material class: DIN 4102 - A1
With quality mark
Diffusion rate: 0.00 mg/m²*d after 50 years

cuprotherm.blank – for mastic asphalt and clay plaster applications

›

cuprotherm.blank is the bare copper tube variant for cuprotherm applications. The bare copper tube withstands high temperatures and is therefore the first choice for applications with mastic asphalt.
