Rotor Bars

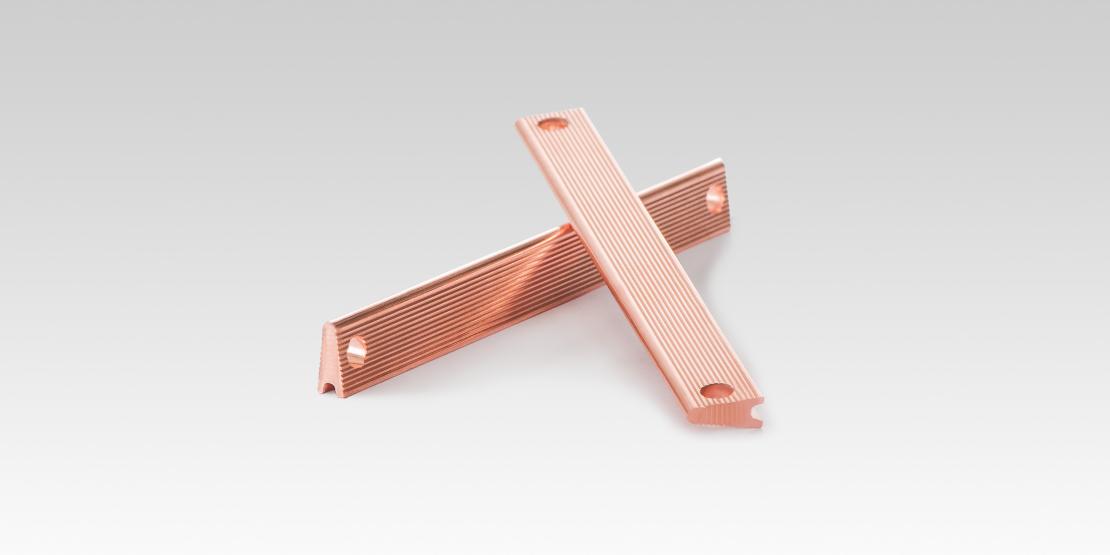

Wieland offers you ready-to-install copper rotor bars of consistently high quality at maximum cost efficiency. This is guaranteed by our fully automated processes across the entire value stream.

In addition, the rotor bars can be manufactured in complex geometries, varying lengths, straight or twisted, and with or without notches. This enables unique rotor designs - from development to series product - from the smallest sample batch to mass production.

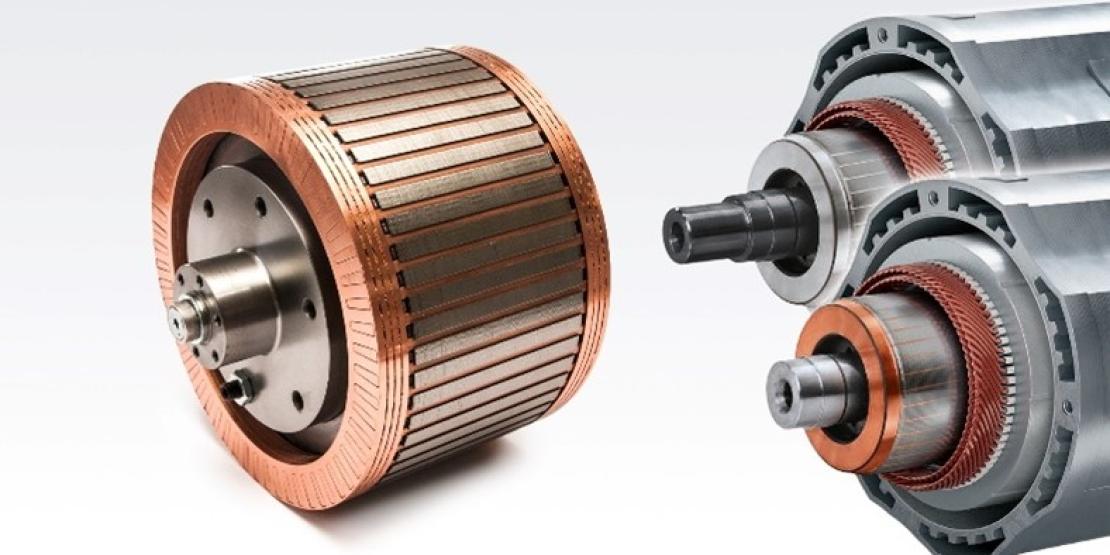

Wieland manufactures rotors in copper and aluminum for highly efficient induction motors. This enables you to meet the increasing need for energy efficiency and economy without the need for rare earth minerals.
We also offer engineering support during the development of your application-specific design. Furthermore, Wieland offers two different processes to produce rotors to meet your individual requirements. Both processes offer manufacturing with a very high degree of material filling without air inclusions, and we can draw on a wide range of experience from prototypes to series production.

Materials

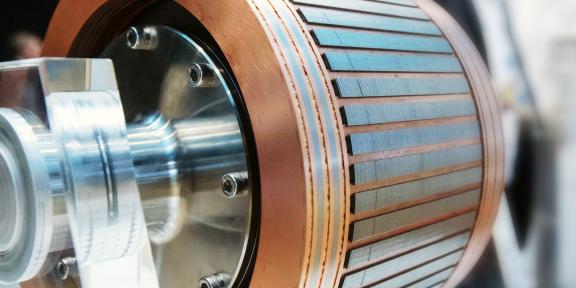

The fabricated Wieland copper rotor is a new and innovative design, which is designed according to your requirements. Due to the disc-shaped design of the short-circuit ring, different materials can be combined individually, and fulfill the requirements for higher power densities and rotation speeds.

Additionally, the fabricated design has a higher mechanical strength and enables a very scalable, flexible, and economical approach for rotor production.

Overview of possible materials:
(All copper-based materials are produced in-house and are available in various strength levels)

Properties	Wieland K10	Wieland K14	Wieland K75
Application	Rotor bar	Short circuit ring	Short circuit ring
Density [g/cm³]	8,94	8,94	8,88
Electrical Conductivity [MS/m]	≥58,6	≥58	≥48
Tensile strength R_m[MPa]	200 – 350	220 – ≥360	430 – 640
Hardness [HV]	35 – 115	45 – ≥110	130 – 200
Datasheet	Download	Download	Download

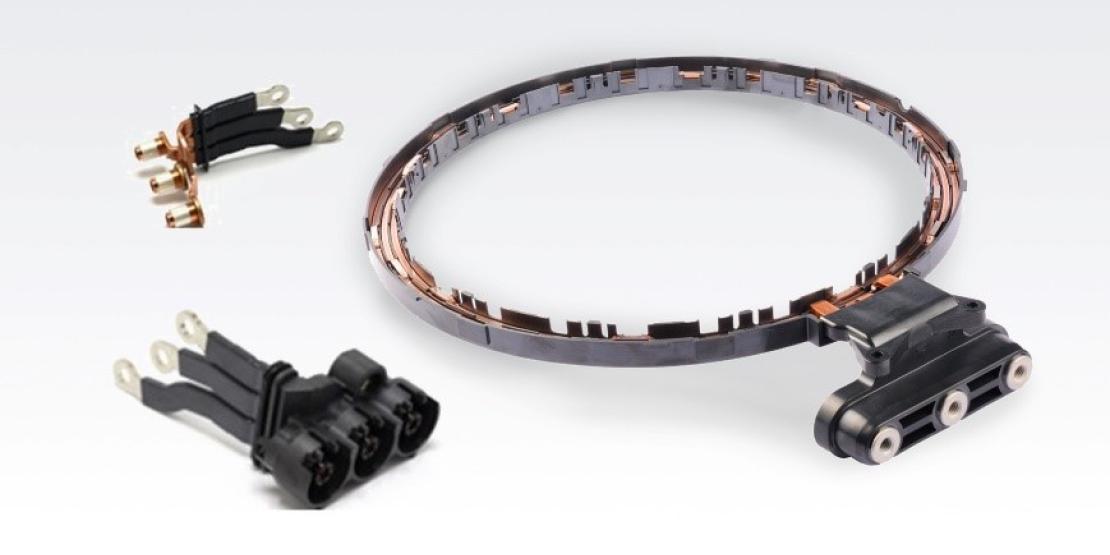

Wieland's high-voltage components are hybrid components in which plastics are combined with copper alloys. With our distinctive knowledge in stamping, forming, laser welding, plastic injection molding, and automation; Wieland is already a long-standing component supplier in the field of e-mobility.
We offer individual solutions and support in development by taking DFM (= Design for Manufacturing) into account and can also offer prototypes from our prototype shop. We are happy to accompany you through all sample phases up to series production.

Materials

Connector Units & Overmolded Busbars

For contacting in the electric drive train or between the battery and the electric machine, Wieland offers you a wide variety of designs (e.g. fully overmolded; assembled) of ready-to-install connector units and overmolded busbars. The design of these is based on your requirements, which enables contacting in the tightest of spaces.
To evaluate your design and the corresponding requirements, please contact us via the contact address below.

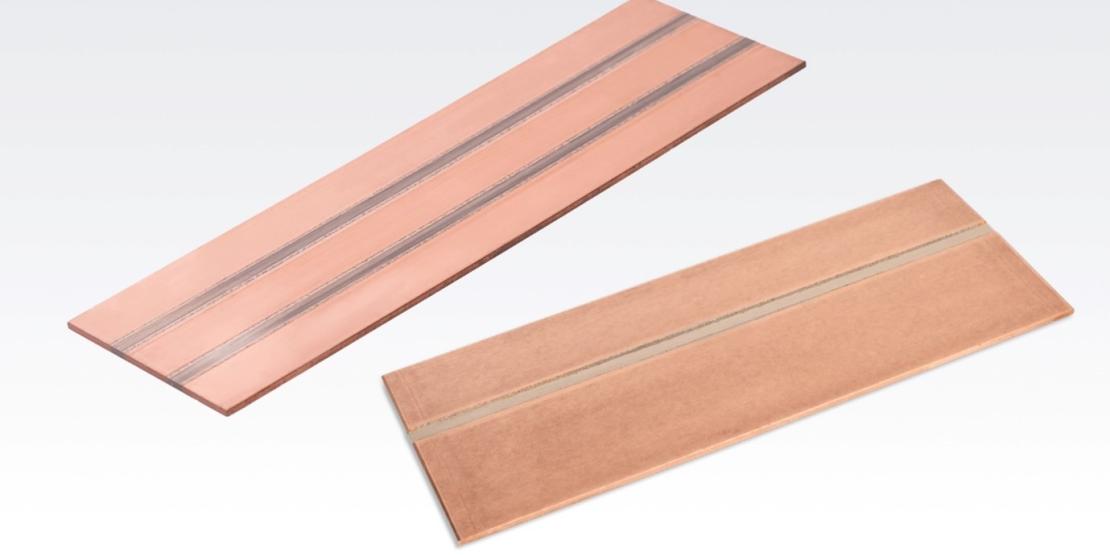

The electron beam welded multi-metal strip can consist of up to five alloys. The stripes are also available in various dimensions, plated, or unplated. Large quantities of our multi-metal strips are supplied on coils. However, the delivery of piece sheet metal for prototypes is also possible.
We carry out all process steps in-house, and because of this we can find the best alloy combination for your application. Our offerings don’t end at only using our alloys. We also can evaluate using materials and alloys from other manufacturers.

Materials

With the use of our specially developed resistance alloys, electron beam welded multi-metal strips are ideal as pre-material for shunts.

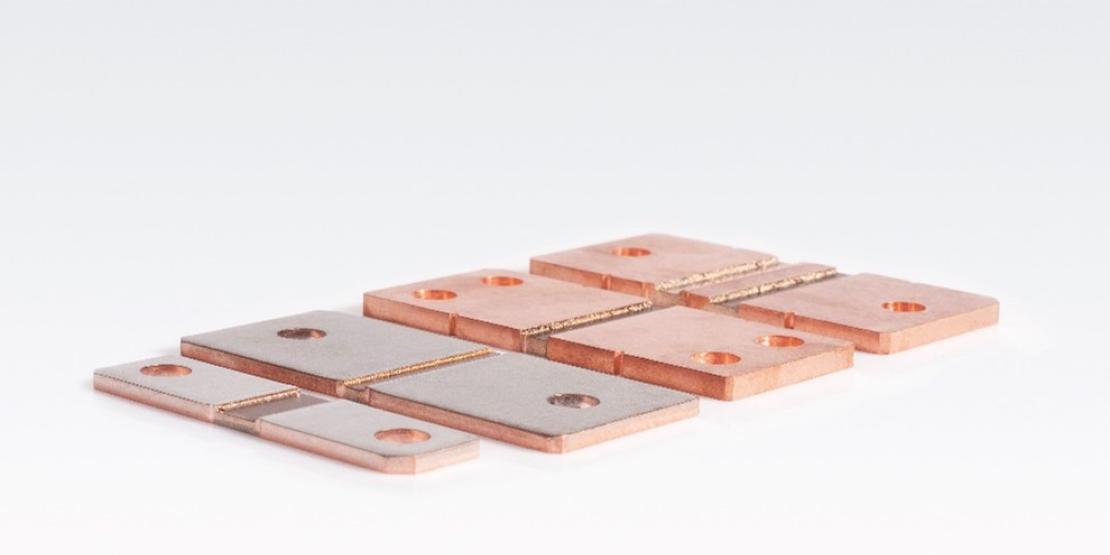

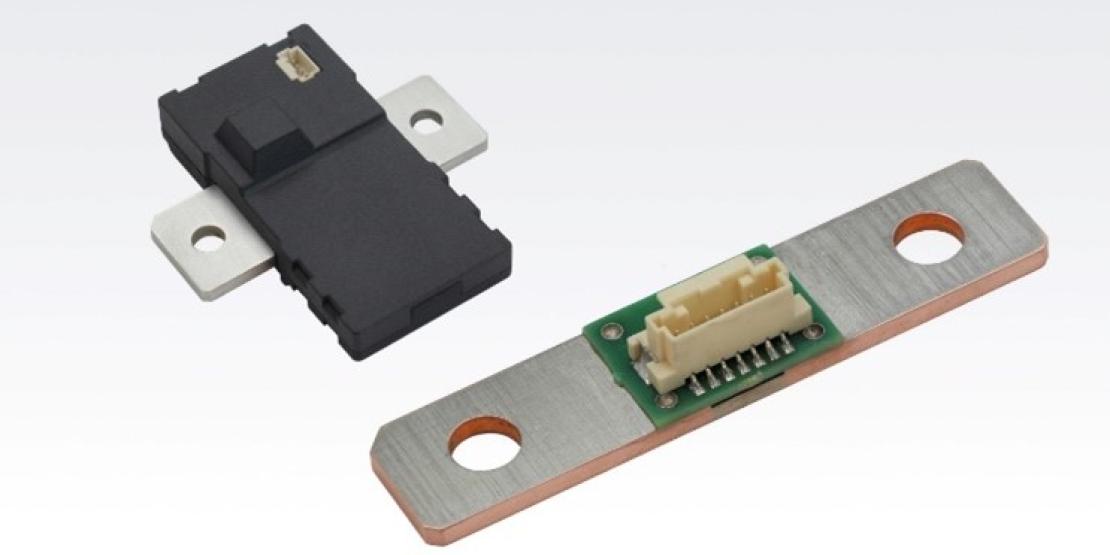

Shunt resistors provide highly accurate and reliable current measurement over a wide temperature range, leading to a better battery management. Shunts are manufactured from an electron beam welded multi-metal strip using our specially developed resistor alloys.
Wieland offers shunts in various standard dimensions as well as customized designs. For this purpose, development, sample, and series production are located in-house.

Materials

Our standard shunts are designed according to uniform sizes and resistance values.

Currently, the Wieland portfolio includes the following basic shunts.

Variant	Length [mm]	Width [mm]	Power Rating [W]	Resistance values [µΩ]
W6918	69	18	36	50, 100
W8518	85	18	36	50, 100
W8420	84	20	36	50, 100
W8436	84	36	50	25, 50
W8536	85	36	50	25, 50

View our datasheets to learn more

Please enter your contact information. You will be redirected to the download page.

The future is connected, electric and autonomous. With high-precision, shunt-based current sensors of QULECTRA, you can create the perfect conditions for precise current measurements. Make the future safe by using demand-oriented monitoring and reliable battery management.

QULECTRA is a joint venture of Wieland-Werke AG based in Ulm and Munich Electrification GmbH based in Munich. The two companies share a multi-year partnership in the provision of battery management systems with shunt-based precision resistors. With QULECTRA, the two companies are taking the next step in the development of best-in-class current sensors that point the way to a sustainable future.

More information about QULECTRA and its products can be conveniently found on the QULECTRA-Website.

Optimised heat transfer for your shell-and-tube heat exchanger

The enhanced surface tubes made by Wieland Thermal Solutions have been optimized for use as condenser or evaporator tubes in shell-and-tube heat exchangers used in the refrigeration and air-conditioning industry. These can be designed to be much more compact, saving you energy, installation space, and materials.

Your advantages at a glance

Significantly higher heat transfer coefficients than smooth or low finned tubes
More compact and lighter heat exchangers
Significantly reduced filling quantities of e.g. refrigerants
Highest efficiencies due to smallest temperature differences
Precise thermal design with ThermalX

Optimized heat transfer for your shell-and-tube heat exchanger

The enhanced surface tubes made by Wieland Thermal Solutions have been optimized for use as condenser or evaporator tubes in shell-and-tube heat exchangers used in the refrigeration and air-conditioning industry. These can be designed to be much more compact, saving you energy, installation space and materials.

Materials

Thanks to their functional surface enhancements, the outsides of the GEWA-C and Turbo-C tubes offer optimal drainage performance for condensed refrigerants. Coupled with an ideally matched inner tube surface, optimum heat transfer coefficients can be achieved. GEWA and TURBO Condenser Tubes are available with outer and inner surfaces adapted for specific needs of your application.

GEWA

C5 – For highest performance and efficiency
C+SL/LW – For weight optimized alternatives as a "drop-in" solution
CLF – For seawater & applications with increased fouling tendency
CPL – For applications with high fouling tendency

TURBO

C – The original condenser tube
CSL – Efficient and lightweight
CLF – For low fouling applications
NCT – For large capacity chillers
CPT – High efficiency in ferrous alloys

Our Materials

We offer you a broad portfolio of materials and can expand our offerings at any time to meet your specific needs regarding thermal conductivity, mechanical properties, or corrosion resistance. Enhanced surface tubes made by Wieland Thermal Solutions are already available in copper, copper-nickel, brass, carbon steel, stainless steel, and titanium.

You can find more product information here

GEWA-B
GEWA-PB
GEWA-C

For extreme efficiency in a variety of applications

Low-finned tubes are a reliable solution for controlling the temperature of gases and liquids, or for evaporating and condensing refrigerants. Thanks to their larger heat transfer surface area, they offer considerable potential to save in terms of materials and fill volumes. The wide range of dimensions offered by Wieland Thermal Solutions makes these products perfect for a broad scope of applications in the refrigeration and air conditioning industry, for oil/gas coolers in machinery and plant engineering, and for intermediate vapor superheaters in process engineering.

Your advantages at a glance

Proven solution in a wide range of applications
Increased heat transfer surface compared to plain tubes
Material savings due to reduced tube length
Filling quantity reduction due to higher efficiency

Materials

GEWA-K tubes offer a greater outer surface area compared to plain tubes. This is ideal for scenarios where the heat transfer surface coefficients vary significantly between the shell tube and the inner tube.

Our Materials

We offer you a broad portfolio of materials and can expand our offering at any time to meet your specific needs regarding thermal conductivity, mechanical properties, or corrosion resistance. Low-finned tubes made by Wieland Thermal Solutions are already available in copper, copper-nickel, brass, carbon steel, stainless steel, and titanium.

You can find more product information here

GEWA-K/KS
S/T Trufin & TurboChil in Steel
S/T Trufin & TurboChil in Titanium

For compact coils and bent shapes

Medium-high finned tubes feature a significantly larger heat transfer surface area compared to plain tubes. They are ideal for compact and high-performance coils and shell-and-tube heat exchangers. Wieland medium-high finned tubes are a proven and robust solution for water heaters, storage tanks, refrigerant condensers, oil coolers, gas coolers or safety heat exchangers and more.

Your advantages at a glance

High surface enlargement compared to plain tubes
Ideal for compact and robust heat exchangers
Excellent bending properties and processability
Availability of various dimensions, internal structures and materials

Materials

GEWA-D finned tubes made of copper and copper alloys are available in a wide range of sizes and withstand the highest mechanical and thermic stress. They are specially made for the individual geometries of complex heat exchangers. Copper offers the highest heat conductivity of all technical metals. It is superior in processing, hygienic and a corrosion resistant solution.

GEWA-D finned tubes made of aluminium are specifically used in light-weight applications. Aluminium combines highest ductility with reasonable heat conductivity.

GEWA-D finned tubes made of carbon steel can be used in applications such as solid-fuel boilers or storage tanks. The significantly enlarged surface area compared to plain tubes allows compact solutions. Ready to install heat exchangers can be an interesting alternative solution for heat exchangers made of costly materials.

GEWA-D medium-high finned tubes made of stainless steel can be used for condensing boilers or domestic hot water applications. Due to the enlarged outside heat transfer surface area the required tube length can be reduced and thus costly material can be saved.

Our Materials

We offer the widest range of material in the industry and can extend it on request in case of special requirements for heat conductivity, mechanical properties or corrosion resistance. Medium-high finned tubes from Wieland Thermal Solutions are available in copper, copper-nickel, aluminium and carbon steel as well as in stainless steel in limited range.

You can find more information here

Data sheet GEWA-D
Higher efficiency in buffer tanks

For highest efficiency in controlling the temperature of gases and liquids

High-finned tubes have a much greater outer surface area than smooth tubes. This allows for particularly compact designs. Thanks to their high, thin fins, these tubes perform particularly well in the heating and cooling of liquids and gases, making them an excellent choice for applications in heating technology, as well as in machinery and plant engineering.

Your advantages at a glance

Highest surface enlargement compared to plain tubes (up to factor 18)
Enables particularly compact and robust designs
Available in straight lengths or as coiled heat exchanger
Also available as bimetallic version GEWA-HB

Materials

GEWA-H tubes are available in a wide variety of sizes, either in straight sections or as coiled heat exchangers. They are primarily used as heat exchangers in gas boilers and as oil and gas coolers in applications related to machinery and plant engineering.

Our Materials

We offer you a broad portfolio of materials and can expand our offering at any time to meet your specific needs regarding thermal conductivity, mechanical properties, or corrosion resistance. High-finned GEWA-H tubes made by Wieland Thermal Solutions are already available in copper, copper-nickel and aluminum.

In the GEWA-HB tube materials like carbon steel, stainless steel, titanium or almost any other material like brass and nickel can be used for the inner tube.

You can find more information here

Data sheet GEWA-H

For absolutely reliable media separation with best thermal contact

Safety tubes are used for economical and safe heat transfer. The double wall tubes feature defined leakage paths for the absolutely reliable separation of fluids. For your individual requirements concerning fluid dynamics, we decide on the most suitable surface structure. Our GEWA-safe tubes are a reliable and safe choice for applications such as the direct heating of drinking water using critical fluids as in heating technology or for controlling the temperature of sensitive chemical processes.

GEWA-safe tubes are available in copper and copper alloys and provide safe drinking water heating in heat pumps, heat recovery systems, heat transfer stations and are used for transformer cooling.

Your advantages at a glance

Reliable | Trust in reliable media separation through the double-tube system with defined leakage spaces.
Efficient | Use direct and safe heat transfer of the media involved.
Highest system availability | Detect leaks at an early stage and eliminate them during scheduled maintenance.
Compact and economical | Reduce material costs and equipment requirements.

Our Materials

We offer you a broad portfolio of materials and can expand our offering at any time to meet your specific needs regarding thermal conductivity, mechanical properties, or corrosion resistance. GEWA-safe double wall tubes are available in copper and copper-nickel.

You can find more information here

GEWA-safe double-wall tubes

In coaxial heat exchangers, fluids are ideally conducted in counter-flow directions. The Wieland WKE and WKC series have been optimized for the condensation or evaporation of refrigerants and are used in reciprocating chillers and heat pumps.

Your advantages at a glance

High specific power due to optimized inner tubes
Flow guidance in counterflow
Insensitive to frost
Low fouling tendency
Long service life
Reversible operation possible
Standard designs from stock

You can find more information here

Data sheet WKC | WKE
Our wholesaler for standard heat exchanger

Calculate your coaxial heat exchanger directly online:
ThermalX

WRK finned tube heat exchangers are suitable for efficient direct condensation and evaporation in heat pump buffer tanks. The inner grooved surface of the used finned tubes optimize the heat transfer. Thus highest COP-values are possible even with smallest temperature differences.

Your advantages at a glance

Efficient: Highest COP values due to direct integration of the heat exchanger in the storage tank
Filling volume optimized: Smallest refrigerant volumes due to compact design
Easy handling: Easy replacement and maintenance

You can find more information here

Data sheet WRK
Our wholesaler for standard heat exchanger

Hygienic and compact: Wieland Safety Heat Exchangers are ideal for the direct heating of water for domestic use by condensing the refrigerant within the tank. The double-walled model offers additional safety against contamination and complies with the guidelines for ensuring the quality of drinking water.

4 good reasons for the Wieland safety heat exchanger series

Cost-effective | Benefit from higher performance with the lowest refrigerant and material consumption!
Efficient | Achieve the highest COP values according to DIN EN 16147 by installing the heat exchanger directly in the storage tank.
Safe | Rely on absolutely reliable media separation through double tubes
Easy handling | Reduce your effort for installation and replacement.

You can find more information here

More about direct condensation in the storage tank
Data sheet Safety Heat Exchanger
Our wholesaler for standard heat exchanger

Storage heating, circulation heating of domestic water, protecting solid fuel boilers from overheating, or controlling the temperature of oils and emulsions: With our WRW series of heat exchangers, you are putting your trust in highly developed, compact solutions that are ready to install.

Your advantages at a glance

Compact design due to high thermal conductivity of copper combined with increased heat transfer area
Proven corrosion resistance
Retrofittable due to compact spiral design
Standard designs from stock

You can find more information here

Data sheet WRW
Our wholesaler for standard heat exchanger

Figure out with us the best heat exchanger design for your heat-transfer challenge

The requirements of heat exchangers are as diverse as their applications - this is why nine out of ten heat exchangers we deliver, are customized to our clients' needs. Together with you, we develop innovative heat exchanger concepts that clearly set you apart from other manufacturers in terms of efficiency, compact design and service life: from customized fittings for optimum installation through to the complete heat exchanger design in the material that best suits your application. For challenging operations like the use of natural refrigerants, e.g. in transcritical CO2 systems (R744) with high operating pressures up to 130 bar, or for applications with propane (R290), ammonia (R717) and water (R718), we serve you with our knowledge from the very beginning of your design.

Our offer

Together we clarify your heat-transfer and design challenge,
we design the best solution using our CAD heat-transfer and forming technology know-how,
we create functional prototypes and
measure their performance at our in-house thermal engineering laboratory,
supporting you from the design of the prototype through to series production.

Your application

We are delivering customized solutions to fulfill your requirements – less refrigerant volume and material usage, a very compact design for your special construction space or higher safety aspects. With this flexibility we are well prepared for your special applications, for example the use of natural high pressure refrigerants or the advancement of an ambitious laser gas cooling.

Your benefits at a glance

Solution for your specific heat-transfer challenge
Compact solutions using as little material as possible
Ready-to-install solutions for your trouble-free series production
Optimal thermal characteristics at low pressure drops
Engineering and manufacturing from a single source

Our materials

Depending on your requirements regarding corrosion resistance, thermal conductivity as well as mechanical and processing properties, we choose the most suitable material.

You can find more product information here
Customized Heat Exchangers
Safety heat exchanger for domestic hot water heat pump

Design your S&T heat exchangers directly online:
ThermalX

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K08	Cu-OFE	CW009A	C10100
K12	Cu-HCP	CW021A	C10300
K18/K32	Cu-ETP	CW004A	C11000
K20/K21/K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200

Wieland	EN Designation	EN No.	ASTM UNS-No.
K41	CuNi1Pb1P*	-	C19150 / C19160
K52	CuNi2Si	CW111C	C70260
K53	CuNi2SiS*	-	-
K54	CuNi2SiCr*	-	C81540
K60	CuCr1Zr	CW106C	C18150
K61	CuCr1Zr	CW106C	C18200
K65	CuFe2P	CW107C	C19400
K81	CuSn0,15	CW117C	C14415
KC1	CuPb1P	CW113C	C18700
eco KS2^®	CuSP	CW114C	C14700

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z14	CuZn37Pb2	CW606N	C35300
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z29	CuZn39Pb2	CW612N	C37700
Z31/Z41/Z48	CuZn40Pb2	CW617N	C38000
Z32/Z33	CuZn39Pb3	CW614N	C38500
Z40	CuZn43Pb2Al	CW624N	-
Z43	CuZn33Pb1AlSiAs	CW725R	-
Z45/Z46	CuZn36Pb2As	CW602N	C35330

Wieland	EN Designation	EN No.	ASTM UNS-No.
L10/L13/L15	CuNi10Fe1Mn	CW352H	C70600
L30	CuNi30Mn1Fe	CW354H	C71500

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M10	CuZn10	CW501L	C22000	C2200
M15/M16/M17	CuZn15	CW502L	C23000
M30/M34	CuZn30	CW505L	C26000	C2600
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37/M38	CuZn37	CW508L	C27200	C2720
eco M43^®	CuZn38As	CW511L	C27453
eco M57^®	CuZn42	CW510L	-
eco M58^®	CuZn42	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
S40	CuZn37Mn3Al2PbSi	CW713R	C67420
eco S34^®	CuZn34Mn2SiAlNi*	-	C67340
eco ST2	CuZn35Sn1P	CW727R	-
eco ST3	CuZn29Si1SnP	CW729R	-
eco ST4	CuZn42	CW510L	-
eco SW1^®	CuZn21Si3P	CW724R	C69300
eco SW5^®	CuZn21Si3P	CW724R	C69300
eco SZ2^®	CuZn36Si1P	CW726R	C68370
eco SZ3^®	CuZn40SiP	CW728R	-
eco SZ4^®	CuZn42	CW510L	C28500
eco SZ5^®	CuZn40	CW509L	C27450
ecobrass SW4	CuZn21Si3P	CW724R	C69305

Wieland	EN Designation	EN No.	ASTM UNS-No.
B06	CuSn6	CW452K	C51900
B09/B10	CuSn8	CW453K	C52100
B12/B21	CuSn8P/CuSn8	CW459K/CW453K	C52100
B44/B45	CuSn4Pb4Zn4	CW456K	C54400
BV9	CuSn6	CW452K	C51900
eco BS4^®	CuSn5NiPS*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
U35	CuAl10Ni5Fe4	CW307G	C63020
U36	CuAl11Fe6Ni6	CW308G	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
N22	CuNi12Zn24	CW403J	C75700
N29	CuNi18Zn20	CW409J	-
N31	CuNi7Zn39Pb3Mn2	CW400J	-
N32	CuNi12Zn30Pb1	CW406J	-
N37	CuNi18Zn19Pb1	CW408J	-
N48	CuNi12Zn38Mn5Pb2	CW407J	-
eco N59^®	CuNi9Zn41FeMn	-	-

Wieland manufactures solid and hollow copper sections in a wide range of sizes. Featuring contours close to the final geometry, these sections help you obtain your finished parts in just a few operations. Together with you, we develop complex sections of copper from the draft to the initial prototypes to series production.

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K12	Cu-HCP	CW021A	C10300
K16	Cu-ETP1	CW003A	-
K18/K32	Cu-ETP	CW004A	C11000
K20/K21/K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200
KA1	CuAg0,10P	CW016A	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco ST2	CuZn35Sn1P	CW727R	-
eco ST3	CuZn29Si1SnP	CW729R	-
eco ST4	CuZn42	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
N22	CuNi12Zn24	CW403J	C75700

Materials

W5006
W5000

The closer the input stock approaches the end product, the higher the efficiency of downstream machining. The Wieland E5006 precision hexagon rod fulfils these expectations in a quite special way: It presents the precise outer contours of a workpiece. Unlike machined multiedge cross sections, drawn edged rods are characterised by extremely smooth, plane, and compacted surfaces. Moreover, they lend the workpiece a continuous grain structure of high impact toughness. Obvious material savings are yet another benefit.

Learn more
W5006 precision brass rods

The Wieland WICONNEC brand offers a range of copper materials in the form of rods and wires that are ideal for machined sockets and pins for plug connectors. This material portfolio also offers brass materials in addition to specially developed copper alloys for complex turned plug connectors.

WICONNEC

Wieland ecoline is our answer to enable your future business: the lead-free product line fulfills your individual needs for an efficient production and future oriented product development. And is, of course, compliant with the latest requirements of legislative directives on lead-free materials.

Learn more about
Wieland ecoline

From Europe’s largest copper alloy foundry in Vöhringen/Iller (Germany), we can offer you far in excess of a hundred different copper materials. These include not only a wide range of continuous castings like tubes and rods, but also shaped rods and sections of complex geometries. At the same time, our flexibility ensures the prompt realisation of your special custom wishes.

Materials

Cast Alloy

Wieland	EN Designation	EN No.	ASTM UNS-No.
G05	CuSn5Zn5Pb5-C-GC	CC491K	-
G07/G08	CuSn7Zn4Pb7-C	CC493K	-
G10	CuSn10-C	CC480K	-
G12/G13	CuSn12-C	CC483K	-
G21	CuSn10Pb10-C-GC	CC495K	-
G91	CuSn11Pb2-C-GC	CC482K	-
GA1	CuSn11Pb2-C-GC	CC481K	-
GD1	CuSn5Zn5Pb2-C-GC	CC499K	-
eco GS1^®	CuSn4Zn2PS-C-GC*	-	-

Wieland hot stamping rods

Good forging results can be obtained only when all links in the process chain have been matched to each other to the optimal effect. With Wieland hot stamping rods you are offered a forging stock which comprehensively fulfils these requirements. Your benefits: uniform dark surface for reproducible processing properties, tight diameter tolerances in the drawn size range, and hence precise configuration of the slug weight.

Materials

Special brass

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco SW1^®	CuZn21Si3P	CW724R	C69300
ecobrass SW4	CuZn21Si3P	CW724R	C69305

Learn more
Strips for connector
Hot dip tinned copper and copper-alloy strip
Strip for semiconductor packages

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
K09	Cu-OFE	CW009A	C10100	C1011
K11	Cu-OF	CW008A	C10200
K12	Cu-HCP	CW021A	C10300
K14	Cu-PHC	CW020A	C10300
K19	Cu-DHP	CW024A	C12200	C1220
K32	Cu-ETP	CW004A	C11000	C1100

Wieland	EN Designation	EN No.	ASTM UNS-No.
K65	CuFe2P	CW107C	C19400
K80	CuFe0,1P*	-	C19210
K81	CuSn0,15	CW117C	C14415

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K57	CuNi1Co1Si*	-	C70350
K73	CuNi1ZnSi*	-	C19005
K75	CuCrSiTi*	-	C18070
K76	CuNiSiP*	-	C19010
K78	CuNi2Co1Si	-	C70350
K82	-	-	C15100
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M42	CuZn42	CW510L	-
M42	CuZn42	CW510L	-
Z21	CuZn38Pb2	CW608N		C3713
Z30	CuZn39Pb2	CW612N	C37700

Wieland	EN Designation	EN No.	ASTM UNS-No.
L49	CuNi9Sn2	CW351H	C72500
L96	CuNi9Sn6	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M05	CuZn5	CW500L	C21000	C2100
M10	CuZn10	CW501L	C22000	C2200
M15	CuZn15	CW502L	C23000	C2300
M20	CuZn20	CW503L	C24000	C2400
M30	CuZn30	CW505L	C26000	C2600
M33	CuZn33	CW506L	C26800	C2680
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37	CuZn37	CW508L	C27200	C2720
M38	CuZn37	CW508L	C27200	C2720

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
S12	CuSn3Zn9	CW454K	C42500	C4250
S23	CuZn23Al3Co	CW703R	C68800

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
B14	CuSn4	CW450K	C51100
B15	CuSn5	CW451K	C51000
B16	CuSn6	CW452K	C51900
B18	CuSn8	CW453K	C52100	C5212
B31	CuSn2Fe0,1P*	-	C50715

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
N12	CUNi12Zn24	CW403J	C75700
N17	CuNi18Zn27	CW410J	C77000	C7701
N18	CuNi18Zn20	CW409J	C76400	C7521
N39	CuNi12Zn25Pb1	CW404J	C79200
N41	CuNi7Zn37Pb1	-	-

For decades, tin coatings produced by the process known as "hot-dip tinning" have ensured the reliable performance of billions and billions of connectors in industrial, automotive and communication electronics.

Learn more
Hot-dip tinned copper and copper alloy strip
WebSeminar Hot-dip tinned copper and copper alloy strip

Special products for the manufacture of power transistors and complex plug connectors. Components no longer need to be assembled from two or more punched parts, but can consist of the one part punched from the multi-gauge strip – efficient and of homogeneous quality!

Learn more
Multi-gauge strip

We can offer you a wide range of materials, geometries, and surface qualities to choose from. Many geometries are available from our sheets stores.

Learn more
Copper alloy sheets and plates

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K57	CuNi1Co1Si*	-	C70350
K73	CuNi1ZnSi*	-	C19005
K75	CuCrSiTi*	-	C18070
K76	CuNiSiP*	-	C19010
K82	-	-	C15100
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M42	CuZn42	CW510L	-
Z21	CuZn38Pb2	CW608N		C3713
Z30	CuZn39Pb2	CW612N	C37700

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M05	CuZn5	CW500L	C21000	C2100
M10	CuZn10	CW501L	C22000	C2200
M15	CuZn15	CW502L	C23000	C2300
M20	CuZn20	CW503L	C24000	C2400
M30	CuZn30	CW505L	C26000	C2600
M33	CuZn33	CW506L	C26800	C2680
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37	CuZn37	CW508L	C27200	C2720
M38	CuZn37	CW508L	C27200	C2720

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
B14	CuSn4	CW450K	C51100
B15	CuSn5	CW451K	C51000
B16	CuSn6	CW452K	C51900
B18	CuSn8	CW453K	C52100	C5212

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
N12	CUNi12Zn24	CW403J	C75700
N17	CuNi18Zn27	CW410J	C77000	C7701
N18	CuNi18Zn20	CW409J	C76400	C7521
N39	CuNi12Zn25Pb1	CW404J	C79200
N41	CuNi7Zn37Pb1	-	-

Available materials

Wieland	EN	EN-Nr.	UNS
K08	Cu-OFE	CW009A	C10100
K12	Cu-HCP	CW021A	C10300
K20 / K21 / K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200
K65	CuFe2P	CW107C	C19400
L10	CuNi10Fe1Mn	CW352H	C70600
L30	CuNi30Mn1Fe	CW354H	C71500

Delivery forms

Level wound coils: 100 kg, 150 kg, 300 kg, 530 kg
Straight lengths
Rings

Materials

K65 - Sustainable and efficient

Sustainable and efficient – two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO₂. Wieland supports this turnaround with a tube system that meets the high requirements of CO₂ as a refrigerant.

Wieland K65 tubes have been designed for CO₂ applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO₂. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).

All Wieland K65 tubes are available in the soft condition (R300/O61) to ensure excellent bending / flaring and collaring properties.

Wieland K65 tubes are offered from stock in two pressure ranges, 80 bar and 120 bar, and in dimensions ranging from 3/8” up to 2-1/8”.

Moreover, K65 tubes are also available in individual dimensions and different delivery forms.
For industrial processing, in particular CO₂ heat exchanger (evaporator / gas cooler) manufacturing, level wound coils (LWC) are offered.

More K65 products in other categories

Your benefits

Pressure resistance tailormade to your needs
Cost reduction through weight reduction
Proven processing technology: brazing instead of welding!
Excellent heat transfer
Design according to EN 14276 - TUEV or UL certification on demand

Typical applications

Components of R744 refrigeration systems
Fin coil heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers )
Shell and tube heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)

Technical properties

Material: K65
Conditions: soft R300/O61 and hard R420/H80
Delivery form: Level wound coils or straight lengths
Coil weights: 100 kg, 150 kg, 300 kg
Available dimensions: 5 - 28 mm for LWC; 5 - 110 mm for straight lengths
Usual standards: EN 12735-1 / EN 14276 / ASTM B 1017

Further information

cuproclima

For high-quality seamless inside smooth or innergrooved copper tubes in level-wound coils for the refrigeration and air-conditioning industries. The specified quality and inspection criteria exceed the existing requirements of standards (e. g. EN 12735-2, ASTM).

Your benefits

longer run time for machines when uncoiling tubes
reduced scrap for finished products
reduced set-up time
detection of even smaller surface defects on the tubes
possible malfunctions of finished equipment during pressure testing are reduced
fewer impurities in the refrigerant circuit.

Fields of application

air-cooled heat exchangers for the air-conditioning and refrigeration industry
evaporators
condensers
heat exchangers
air coolers

Technical Properties

Materials Cu-DHP
Conditions soft and extra soft
Delivery form level wound coils only
Coil weights 100 kg, 150 kg, 300 kg
Available dimensions 4 - 28 mm, wall thicknesses on request

Copper tubes with ultra clean inner surface for industrial applications

Our innovative production process for cuproclean tubes removes carbon film. This results in higher reliability, longer life and reduced maintenance costs.It is suitable for all fresh water applications. Copper offers outstanding versatility and is characterized by excellent formability as well as good processing properties. cuproclean copper tubes are also available in combination with other qualities such as cuproform.

Your benefits

ultra-clean tube surface free from carbon film
highest reliability and longer life also in fresh water applications
best corrosion resistance
carbon film test according to EN 1057 and confirmation in the certificate

Fields of application

cooling ceilings
solar water heating systems
heat generators

Technical properties

Materials Cu-DHP
Conditions Soft
Delivery form Level wound coils
Coil weights 100 kg, 150 kg, 300 kg
Available dimensions 6 - 28 mm, wall thicknesses on request

High formable copper tubes

In boiler manufacture, for example the tubes may be formed by: expanding, bending, upsetting and beading. Industrial copper tubes from conventional production do not always meet these high demands. Therefore, it is often necessary to use additional fittings made from other materials. This results in further production steps and consequently higher production costs.

Your benefits

no special fittings necessary; this results in lower costs of production
higher added value in your production
exceptional forming properties – 80% expansion of the tube end tested and certified on the inspection certificate
less scrap with very high deformation

Fields of application

Connecting pieces, e.g. especially for boilers

Technical properties

Materials Cu-DHP
Conditions soft and extra soft
Delivery form Layer-wound coils and straight lengths
Coil weights 100 kg, 150 kg, 300 kg, 530 kg
Available dimensions 6 - 28 mm for LWC; 6 - 64 mm for straight lengths

Copper tubes with high-purity outer surface for solar thermal applications

In the process of manufacturing solar heat absorbers requirements vary depending on the application. In the solarclean family you will find the most suitable copper tube quality for your optimized fabrication.

solarclean classic
The particularly clean tube surface ensures a high quality weld. You can therefore save at least one cleaning operation or an extensive pre-treatment of the components to be welded.

solarclean HP
For heat pipes in vacuum tube collectors - highest surface cleanliness on tube outside and inside prevents contamination of the heat transfer medium in the heat pipe and yet ensures the efficiency of the system.

solarclean plus
Improved forming properties for the fabrication of meander-shaped absorber tubes facilitate the setting of the bending machines and increase process reliability. solarclean_plus ensures super clean tube surfaces substantially improving the ultrasonic welding process.

solarclean eco
The cost-effective alternative for laser welding of absorber plate and tubing with sufficient cleanliness.

solarclean SL
Like solarclean classic, solarclean SL ensures superclean tube surfaces. Depending on your fabrication needs, you can also order solarclean in straight lengths.

Technical properties

Materials Cu-DHP
Conditions hard, hard relaxed, half-hard
Delivery form Layer-wound coils and straight lengths
Coil weights 100 kg, 150 kg, 300 kg, 530 kg
Available dimensions 6 - 15 mm; wall thicknesses 0.3-1.2 mm

Available materials

Wieland	EN	EN-Nr.	UNS
K20 / K21 / K28	Cu-DHP	CW024A	C12200
L10	CuNi10Fe1Mn	CW352H	C70600
K65	CuFe2P	CW107C	C19400

Materials

K65 - Sustainable and efficient

two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO₂. Wieland supports this turnaround with a tube system that meets the high requirements of CO₂as a refrigerant.

Wieland K65 tubes have been designed for CO₂applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO₂. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).

Innergrooved K65 tubes for manufacturing of CO₂heat exchangers (evaporator / gas cooler) are available in individual dimensions. These are delivered in level wound coils (LWC) or straight lengths alternatively.

Wieland K65 tubes are also available from stock in standard dimensions.

More K65 products in other categories

Your benefits

Pressure resistance tailormade to your needs
Cost reduction through weight reduction
Proven processing technology: brazing instead of welding!
Excellent heat transfer
Design according to EN 14276 - TUEV certification on demand

Typical applications

Fin coil heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)
Shell and tube heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)

Technical properties

Materials: K65
Conditions: soft R300/O61 and hard R420/H80
Delivery form: Level wound coils or straight lengths
Coil weights: 100 kg, 150 kg, 300 kg
Available dimensions: 5 - 16 mm
Usual standards: EN 12735-1 / EN 14276 / ASTM B 1017

Further information

cuprofin-Standard

Wieland cuprofin-Standard tubes are effiecient heat exchanger tube that are suitable for one and two-phased flow as well as for evaporation and condensation. This enables the flexible production of efficient and compact heat exchangers. There is no need to keep a stock of different specialized tube types.

Your benefits

improved heat transfer due to fin structure on the inside of the tube
compact heat exchanger construction
reduced material input
Internal structure suitable for evaporation, condensation and single-phase heat transfer

cuprofin-standard is also available in superclean quality and as a microgroove tube.

Fields of application

Finned heat exchangers for the refrigeration/air conditioning industry
Evaporator
Condensers
Recooler
Air Cooler
Tube bundle injection evaporator
Heat exchangers in the form of coiled elements (e.g. container heating and cooling)

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin

cuprofin-C tubes for condensors

Wieland cuprofin-C Tubes are highly efficient heat transfer tubes for the tube-side condensation of refrigerants. Depending on the fluid used, the fins on the inside of the tube are optimized for high performance with low material usage. They enable the design of highly efficient and compact heat exchangers.

Your benefits

optimized heat transfer due to adapted fin structure on the inside of the tube
compact heat exchanger construction
reduced refrigerant charge
reduced material input

cuprofin-C is also available in superclean quality and as microgroove tube.

Fields of application

Finned heat exchangers, especially condensers
Heat exchangers in the form of coiled elements (e.g. container heating)

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin-C

cuprofin-E tubes for evaporators

Wieland cuprofin-E tubes are highly efficient heat transfer tubes for the tube-side evaporation of refrigerants in finned heat exchangers. The fins on the inside of the tubes are designed for optimum performance during flow boiling and the lowest possible pressure drop for a wide range of refrigerants.

Your benefits

optimized heat transfer due to adapted fin structure on the inside of the tube
compact heat exchanger construction
extremely low pressure drop
reduced material input

cuprofin-E is also available in superclean quality and on requiry as a microgrooved tube.

Fields of application

Finned heat exchangers, especially evaporators

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin-E

cuprofin-EDX tubes for injection

cuprofin-EDX are highly efficient and stable heat exchanger rubes for Injection evaporator in tube bundle design.

Your benefits

optimized heat transfer and very low pressure drop
compact heat exchanger construction
reduced material input

cuprofin-EDX is also available in superclean quality and on request as a microgroove tube.

Fields of applications

Tube bundle injection evaporator

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg, 530 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin-EDX

cuprofin-G tubes for single-phase heat transfer

Wieland cuprofin-G Tubes are highly efficient heat transfer tubes, especially designed for recooling systems and air coolers. The fins on the inside of the tubes are optimized for single-phase heat transfer of aqueous media such as water-glycol mixtures. This enables the production of efficient and compact heat exchangers.

Your benefits

optimized heat transfer through adapted fin structure on the inside of the tube
compact heat exchanger construction
low pressure drop
reduced material input

cuprofin-G is also available in superclean quality.

Fields of application

Finned heat exchanger with single-phase heat transfer
Recooler
Air cooler

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin-G

cuprofin-L10 tubes for seawater applications

Wieland cuprofin-L10 tubes are efficient heat transfer tubes which are particularly suitable for applications with seawater and other salt water as well as in their surroundings (e.g. coastal areas). The material CuNi10Fe1Mn (Wieland L10) is highly resistant to corrosion and erosion in these fluids. Compared to stainless steels the thermal conductivity of L10 is higher by a factor of approx. 3.

Your benefits

improved heat transfer due to fin structure on the inside of the tube
compact heat exchanger construction
reduced material input
highly resistant to corrosion and erosion

cuprofin-L10 is also available in superclean quality.

Fields of application

Finned and bundle tube heat exchangers that are operated with seawater or other saltwater, or installed in coastal areas

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359.
- VdTÜV 420/6, 420/7

Further Information

cuprofin-L10

microgroove - Small diameter, high performance

With microgroove technology you build your heat exchanger with maximum efficiency and maximum compactness.

Your benefits

reduced refrigerant charge
Increased efficiency of the heat exchanger
compact heat exchanger construction
reduced material input
reduced investment costs

microgroove is also available in superclean quality.

Fields of application

Highly efficient finned heat exchangers
Evaporator
Condensers

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

microgroove

Available materials

Wieland	EN	EN-Nr.	UNS
K20 / K21 / K28	Cu-DHP	CW024A	C12200

Materials

For a more sustainable future in construction.

With its 100 % share of recycled material, the cuprolife copper tube makes a sustainable difference, and thus makes a significant contribution to the advancement of building and construction as well as building services.

Every cuprolife tube from Wieland is manufactured in keeping with the mass balance approach – using a process with 100 % recycled copper. As the starting point when verifying cuprolife, TÜV SÜD tested the procedure for calculating the 100 % recycled content*.

The new standard in copper tubes: cuprolife^®.

Thanks to cutting-edge manufacturing techniques, cuprolife tubes exceed even the highest requirements. Optimal efficiency and reliability are guaranteed along with an exceptional service life. cuprolife tubes are universally usable. cuprolife is permanently in stock and can be supplied in any size from 6 x 1 mm to 159 x 3 mm.

Fields of application

Domestic hot and cold water supply
Heating
Gas
Liquid gas
Heating oil / biofuel oil B10
Solar systems
Rainwater
Industrial compressed air
Sprinkler systems
Firefighting systems

Technical features

100 % recycled copper*
Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification: DV-7204AU2106 (6 to 159 mm outside diameter)
Universal use in a range of finely differentiated dimensions
Optimum availability and compatibility with a wide range of fittings
Maximum operating temperature at 10 bar operating pressure: 250 °C (applies to dimensions up to DN 150)
Fire resistance: EN 13501-1 – A1 (nonflammable)
Dimensions according to DVGW GW 392 (6 to 159 mm) with closed tube ends
For optimal drinking water hygiene

*Mass balance approach, based on ISO 14021, verified by TÜV SÜD.

Learn more

Reliable for all areas of home installation

For many years, installers have been relying on SANCO branded copper tubes. The tubes are very reliable, suitable for all areas of domestic installation and have more than proven their worth in practice. Whether drinking water supply (hot and cold), heating systems, oil, gas and liquid gas supplies as well as thermal solar systems: Wieland SANCO tubes are always the right choice and, of course, covered by the relevant regulations.

Technical features

Patented manufacturing process: SANCO tubes are significantly better than required by standards and regulations.
Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 159 mm outside diameter).
Universal use in a range of finely differentiated dimensions
Optimum availability and compatibility with a wide range of fittings
Maximum operating temperature: 250 °C
Fire resistance: EN 13501-1-A1 (non-flammable)
Dimensions according to DVGW GW 392 (12 to 159 mm) with closed tube ends
For optimal drinking water hygiene
Wide range of certifications available, such as Kitemark, Afnor, KIWA, DVGW and many others

Fields of application

Domestic hot and cold water supply
Heating systems
Gas and oil services for heating and cooking
Solar systems
Rainwater
Industrial compressed air
Sprinkler and Fire-fighting-systems
Further applications in consultation with our technical advisory service

WICU

WICU tubes a have a mill-applied protective coating. They are therefore suitable for concealed installation under plaster or in environments with an aggressive atmosphere, and for installation outdoors, either above or below ground.

Technical features

Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 42 mm outside diameter).
Protective coating conforms to EN 13349 and DIN 30672-1 class B
Reduction of condensation
Fire resistance: EN 13501-1-E
Color of coating: light gray
Temperature range up to 100 °C

Fields of application

Domestic hot and cold water supply
Heating systems
Gas and oil services for heating and cooking
Rainwater
Industrial compressed air
Further applications in consultation with our technical advisory service

WICU Flex

WICU Flex is a plumbing tube with a flexible coating for rapid installation. The coating consists of closed-cell PE foam covered by a structured protective film. WICU Flex is supplied in coils for rapid connection to manifolds etc. and for underfloor installations.

Technical properties

Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 22 mm outside diameter)
CFC/FKW-free polyethylene foam (PE) with a
PE structural foil
Sound insulation: DIN 4109 - A1
Thermal conductivity of the insulation layer according to DIN 52613:
= 0.040 W/mK at 40 °C
Fire resistance: N 13401-1-E
Color of coating: white
Temperature application range: up to 100 °C

Fields of application

Connecting tubes
Domestic hot and cold water supply
Central heating systems

cuprotherm CTX

cuprotherm CTX tubes are copper tubes with a firmly adhering coating. Due to their structure, they are very easy to process and are characterized by a flexibility so far unknown for metal tubes. CTX tubes are a technically high-quality and at the same time economically interesing solution: They offer an attractive price per meter for copper tubes at stable conditions, and are therefore also convincing in terms of reliability in planning.

Technical features

Flexible copper tube made of pure copper Cu-DHP
Temper: soft R220 according to EN 1057 with firmly adhering coating made of PE-RT
Fire behavior EN 13501-1, class E
Color of the coating: white, similar to RAL 9010 (pure white)
Temperature application range: up to 100 °C

Fields of application

Heating
Cooling
Radiator connection
Rainwater harvesting systems
Ground collectors (water/glycol)
Concrete core activation

cuprotherm.plus

cuprotherm is Europe's most frequently installed copper underfloor heating system, and for good reason. The outstandingly long service life of cuprotherm copper tubes will make you forget about surface heating for decades after it has been installed. Due to the highest thermal donductivity in technical materials, efficient use for this application is also good for the wallet in the long run.

The orange coating provides mechanical and chemical protection from the outside and allows the cuprotherm tube to expand unhindered in length when the temperature changes.

Technical properties

Design according to EN 1057
Fire resistance: EN 13501-1-E
Building material class: DIN 4102 - A1
With quality mark
Diffusion rate: 0.00 mg/m²*d after 50 years

Fields of application

Surface heating and cooling
Wall heating
Industrial surfaceheating
Sports floor heating

cuprotherm.blank

cuprotherm is Europe's most frequently installed copper underfloor heating system, and that for good reasons. The oustandingly long service life of cuprotherm copper tubes will make you forget about surface heating for decades after it has been installed. Due to the highest thermal conductivity in technical materials, efficient use for this application is also good for the wallet in the long run.

The bare copper tube also withstands high temperatures and is therefore the first choice in applications with mastic asphalt.

Technical properties

Design according to EN 1057
Fire resistance: EN 13501-1-A1 (non-flammable)
With quality mark
Diffusion rate: 0.00 mg/m²*d after 50 years

Fields of application

Underfloor heating with mastic asphalt screed
Wall heating with clay plaster

Available materials

Wieland	EN	EN-Nr.	UNS
K20 / K21 / K28	Cu-DHP	CW024A	C12200
K65	CuFE2P	CW107C	C19400

Materials

cuprofrio.plus

Wieland branded copper tubes cuprofrio and cuprofrio.plus have a high level of internal cleanliness due to the individually closed tube ends and are suitable for refrigerants according to EN 12735-1.
cuprofrio tubes can be easily processed on site and conform to high quality standards with their extremely clean and dry inner surface. Close tube ends ensure the required quality even during storage and transportation.

learn more

cuprofrio.plus

cuprofrio.plus-tubes are insulated on the outside, which prevents nearly all water condensation on the outer surface of the tube.

Your benefits

clean and dry inside surface
standard dimensions available from stock
good processing, easy joining, very easy to unwind and bend
resistant, colour-fast insulation ensures consistent material properties in all weather conditions
prevention of condensation water through insulating layer
supplier traceability through signature
compliance with Pressure Equipment Directive 97/23/EC

Fields of application

cuprofrio is suitable for technical gases and liquids, for example in

chillers
air-conditioning and refrigeration units
heat exchangers

learn more

cuprofrio – refrigeration

Wieland branded copper tubes cuprofrio and cuprofrio.plus have a high level of internal cleanliness due to the individually closed tube ends and are suitable for refrigerants according to EN 12735-1.
cuprofrio tubes can be easily processed on site and conform to high quality standards with their extremely clean and dry inner surface. Close tube ends ensure the required quality even during storage and transportation.

learn more

Your benefits

clean and dry inside surface
closed tube ends in order to maintain cleanliness
supplier traceability through signature
standard dimensions available from stock
good processing, easy joining, very easy to unwind and bend
tube quality according to EN 12735-1
compliance with Pressure Equipment Directive 2014/68/EU

Fields of application

cuprofrio is suitable for technical gases and liquids, for example in

chillers
air-conditioning and refrigeration units
heat exchangers

Forms of delivery

Coils (pancakes)
Straight lengths of 5 m

learn more

cupromed – medical gas supply

The seamless drawn cupromed copper tube is used for refrigeration/air conditioning as well as for medical gas supply units according to EN ISO 7396-1. cupromed tubes in straight lengths meet the requirements according to EN 13348 and those according to EN 12735-1.

Your benefits

clean and dry inside surface
closed tubes ends keep the surface clean
supplier traceability through signature
standard dimensions available from stock
good processing, easy joining, very easy to unwind and bend
standard tube quality according to EN 12735-1
compliance with Pressure Equipment Directive 2014/68/EU
Requirements according to the PED/Pressure Equipment Directive 2014/68/EU

Fields of applications

cupromed is suitable for the transportation of technical gases and liquids as well as medical gas and vacuum in

medical gas supply units
refrigeration and air conditioning units

cuprogeo – geothermal energy

The seamless drawn cuprogeo tube is used for geothermal energy production. cuprogeo is designed for the use of refrigerants and gases for direct evaporation in heat pumps. The advantage of this application is that high performance can be achieved with suitable heat pumps.

Your benefits

clean and dry inner surface
supplier traceability through signature
tube protected by an outside surface coating
standard tube quality according to EN 12735-1
requirements comply with the Pressure Equipment Directive 2014/68/EU

Fields of application

geothermal energy
refrigeration equipment and heat exchangers
geothermal heat pumps with direct evaporation

K65 - Sustainable and efficient

two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO2. Wieland supports this turnaround with a tube system that meets the high requirements of CO2 as a refrigerant.

Wieland K65 tubes have been designed for CO2 applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO2. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).
Wieland K65 tubes are offered from stock in two pressure ranges, 80 bar and 120 bar, and in dimensions ranging from 3/8” up to 2-1/8”.

All Wieland K65 tubes are available in the soft condition (R300/O61) to ensure excellent bending / flaring and collaring properties.

Other dimensions and delivery forms such as level wound coils are offered for industrial processing, in particular manufacturing of CO2 heat exchangers (evaporator/gas cooler).

More K65 products in other categories

Your benefits

Cost reduction through weight reduction
Proven processing technology: brazing instead of welding!
Economical and safe installation of regrigeration systems with up to 120 bar operation pressure
Excellent heat transfer
Design according to EN 14276

Typical applications

Pipelines for refrigeration systems, in particular for CO2 refrigerant, with an operation pressure of up to 120 bar

Technical properties

Material: K65
Operation pressure: 80 bar and 120 bar
Condition: soft R300/O61
Delivery form: straight lengths of 5 m
Available dimensions: 9,52 - 53,97 mm (3/8" - 2-1/8")
Tube ends: closed
Usual standards: EN 14276 / EN 12735-1

Further information

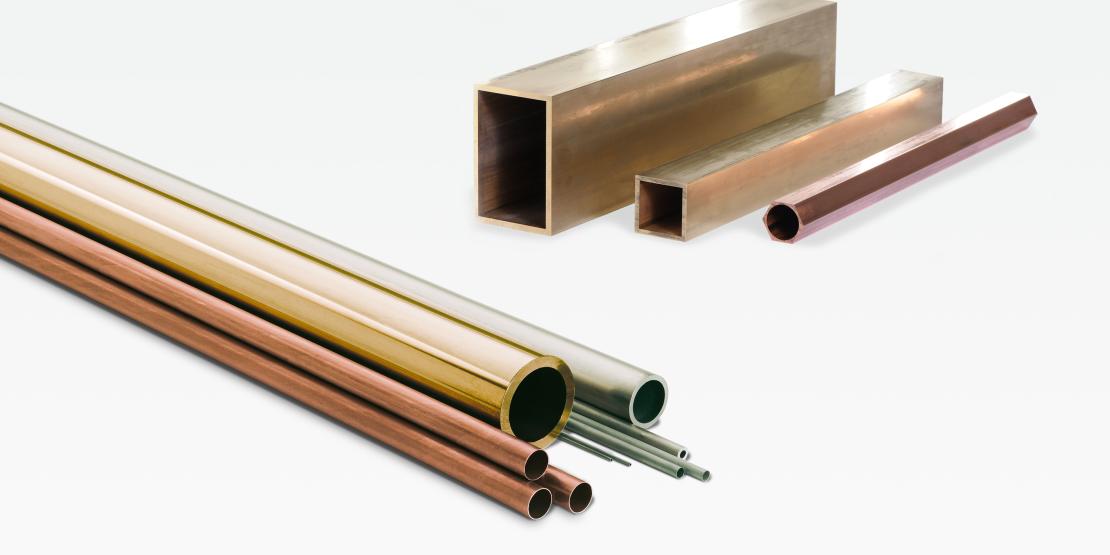

From the broad spectrum of our alloy portfolio, we manufacture tubes to customer specifications and the highest quality standards in accordance with individual requirements for a wide range of applications.

We manufacture alloy tubes in straight lengths for you. We can supply almost any dimension in a wide range of alloys, from 3 mm outside diameter to large-diameter tubes with an outside diameter of approx. 320 mm. All tubes are drawn seamless, high precision and constant properties are a matter of course.
We would be pleased to work out the optimum solution for your application together with you.

You do not need a round tube but a profile tube? - Please contact us! With our interdisciplinary team of experts we will find a solution.

Materials

What is a profile tube?
Profile tubes are manufactured from round pressed or also drawn tubes. Depending on the requirements, the final shape is produced by cold forming in various processing steps.
produced. This makes sectional tubes a sensible, cost-effective addition to conventional
extruded profiles.
Complex geometries, thin walls, high precision.

Areas of application
Wieland sectional tubes made of copper materials are mainly used in industries that place special demands on the material and have to ensure high reliability of the end product
reliability of the end product: These include electronics and electrical engineering, the sanitary industry or architecture.
Other possible applications for our profile tubes are in model making, medical technology, automotive engineering and the manufacture of writing instruments or musical instruments. In particular
For foundry applications, Wieland also manufactures large, square or round profile tubes for ingot molds.

Dimensions
Production is carried out according to your drawing.
Profile tubes can be manufactured from round tubes with a diameter of 5 mm up to a diameter of 230 mm. Depending on the alloy or diameter, the wall thickness may be
can be selected between 0.1 mm and 15 mm. The inner cross-section must be at least 5 mm2 and the smallest diameter of the circumscribed circle at least
5 mm. The ratio of the largest circumscribing circle to the smallest wall thickness must not exceed 125:1. We supply profiled tubes up to 10 m long, in exceptional cases up to
in exceptional cases up to 18 m.

Materials
Starting materials for sectional tubes are primarily copper materials or lead-free brasses. Depending on the application, other material groups may also be used:

leaded machining brasses
special alloys
tin bronzes
New silver

The good cold formability of the material extends the design possibilities for the
in the design of the sectional tubes.
Depending on the application and the resulting requirements on the material
on the material, the profiles can be designed in different strength states
from soft to hard;

We will be pleased to advise you on our alloys and dimensions

We manufacture seamless tubes with outer diameters up to 320 mm. They are suitable for electrical engineering and telecommunications, heat transfer and apparatus engineering.
Low-alloy copper materials with higher strength serve as brake line tubes in motor vehicles.

We have specialties such as dezincification-resistant materials in our range, and alloys with high wear resistance, as used in crude oil production.

Handrails, shower bars, towel rails, handgrip elements, water inlets and outlets, drains, decorative claddings: For these and many other products, the metal
The metal goods industry uses tubes made of copper alloys for these and many other products.

Safely protected !
The packaging

By choosing the right packaging, your individual needs for transport, storage and processing can be taken into account.
Thus, the excellent product quality is preserved and a comfortable processing is made possible.
Based on our experience, we offer you proven packaging materials - we are also happy to find an individual solution.

Each package is labeled on the front side to ensure clear identification and traceability.

Sustainable by conviction:
Wieland uses reusable packaging for the most part to protect the environment.
This also benefits you - you save disposal costs.

Typical packaging forms for tubes and profile tubes in straight lengths

Our ball bearings are available as

Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Angular contact thrust ball bearings
Four point contact ball bearing

Description		Rm N/mm²	HB2,5/62,5
Brass	Z49 – CuZn40Pb2	≥380	80-120
Brass	S38 – CuZn40Al1Pb	≥415	95-133
Brass	Z51 – CuZn39Pb1Al	≥390	90-120
Brass (lead-free)	SC6 – leadfree	≥500	≥105
Aluminiumbronze wrought (lead-free)	U39 – CuAl10Ni5Fe4	≥650	-
Aluminiumbronze casted (lead-free)	U44 – CuAl10Fe5Ni5-GZ	≥650	≥150

Our roller bearings are available as

Cylindrical roller bearings
Needle roller bearings
Tapered roller bearings
Spherical roller bearings
Thrust bearings (cylindrical-, needle-, tapered-, or spherical roller)

Description		Rm N/mm²	HB2,5/62,5
Brass	Z49 – CuZn40Pb2	≥380	80-120
Brass	S38 – CuZn40Al1Pb	≥415	95-133
Brass	Z51 – CuZn39Pb1Al	≥390	90-120
Brass (lead-free)	SC6 – leadfree	≥500	≥105
Aluminiumbronze wrought (lead-free)	U39 – CuAl10Ni5Fe4	≥650	-
Aluminiumbronze casted (lead-free)	U44 – CuAl10Fe5Ni5-GZ	≥650	≥150

We manufacture our products both bare and coated on our own systems. Also, rolled products can be delivered dry or oiled. For improved resistance to oxidation, our products are passivated as standard.

Materials

The surface quality depends greatly on the roughness. We offer the following roughnesses as standard:

	Maximum value Special tolerance (µm)		Maximum value Special tolerance I (µm)		Maximum value Special tolerance II (µm)
Thickness (mm)	Ra	Rmax	Ra	Rmax	Ra	Rmax
0.1 - 0.4	0.25	2	0.18	1.4	0.13	1
0.4 - 1.0	0.25	2	0.2	1.6	0.18	1.4
1.0 - 1.5	0.5	2	-	-	0.2	1.6
1,5 - 3,0	0,3	3	*	*	*	*

Modification possible due to alloy or thickness

If you wish the end products to fulfil high visual requirements, we can offer you a range of special qualities to choose from:

for mirror finishing
for electrolytic polishing
for etching
bright rolled
mirror finish rolled
free of flow lines

These special products set certain restrictions on the range of geometries. Our experts will be pleased to advise you on the surface qualities best fulfilling your requirements.

In electrical and electronic applications, contact resistance plays a crucial role. The formation of oxide layers can compromise this severely and may cause contact failure. As a rule, therefore, at least the contact zones are coated. The most common coatings are of tin or tin alloys. Our products are treated on ultra modern hot dip tinning plant. A range of tin plated variants are possible, depending on the customer’s requirements.

Further Details

We can also offer strips with full or selective silver or nickel plating. These strips you can purchase directly from us as a single source. They are finished at external partner companies.

Sheets and strips may be provided with a protective film of PE that protects the surfaces against mechanical damage during downstream machining processes. The film is attached with an acrylic adhesive and can be drawn off after processing.

Sizes of strip with a protective coating
Thickness (mm)	Width (mm)	Coating
0,3 - 2,0	30 - 700	single- or double-sided

Sizes of sheet with protective coating
Thickness (mm)	Width (mm)	Length (mm)	Coating
0,3 - 1,0	500 - 800	500 - 3.000	single- or double-sided
1,0 - 10,0	500 - 1.250	500 - 4.000	single- or double-sided

Sizes of strip cut to length with protective coating
Thickness (mm)	Width (mm)	Length (mm)	Coating
0,3 - 1,0	150 - 500	700 - 2.500	single-sided
1,0 - 10,0	20 - 500	200 - 4.000	single-sided

Wieland can offer you wire and sectional made of a wide range of materials: wrought copper alloys and alloys extending from brass, both with and without lead, to bronze, to German silver. And in combination with material properties, sizes, and geometries, our delivery portfolio can meet virtually every requirement. Simply contact us!

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K10	Cu-OFE	CW009A	-
K12	Cu-HCP	CW021A	C10300
K18/K32	Cu-ETP	CW004A	C11000
K30	Cu-OF	CW008A	C10200

Wieland	EN Designation	EN No.	ASTM UNS-No.
K41	CuNi1Pb1P*	-	C19150 / C19160
K65	CuFe2P	CW107C	C19400
K81	CuSn0,15	CW117C	C14415
KC1	CuPb1P	CW113C	C18700
eco KS2^®	CuSP	CW114C	C14700

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z29	CuZn39Pb2	CW612N	C37700
Z31/Z41/Z48	CuZn40Pb2	CW617N	C38000
Z32/Z33	CuZn39Pb3	CW614N	C38500
Z40	CuZn43Pb2Al	CW624N	-
Z45/Z46	CuZn36Pb2As	CW602N	C35330

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M10	CuZn10	CW501L	C22000	C2200
M15/M16/M17	CuZn15	CW502L	C23000
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37/M38	CuZn37	CW508L	C27200	C2720
eco M43^®	CuZn38As	CW511L	C27453
eco M57^®	CuZn42	CW510L	-
eco M58^®	CuZn42	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
S40	CuZn37Mn3Al2PbSi	CW713R	C67420
eco S34^®	CuZn34Mn2SiAlNi*	-	C67340
eco ST2	CuZn35Sn1P	CW727R	-
eco ST3	CuZn29Si1SnP	CW729R	-
eco ST4	CuZn42	CW510L	-
eco SW1^®	CuZn21Si3P	CW724R	C69300

Wieland	EN Designation	EN No.	ASTM UNS-No.
B09/B10	CuSn8	CW453K	C52100
B44/B45	CuSn4Pb4Zn4	CW456K	C54400
eco BS4^®	CuSn5NiPS*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
N22	CuNi12Zn24	CW403J	C75700
N31	CuNi7Zn39Pb3Mn2	CW400J	-
N32	CuNi12Zn30Pb1	CW406J	-
N37	CuNi18Zn19Pb1	CW408J	-
eco N59^®	CuNi9Zn41FeMn	-	-

Electrical and electronic applications often require materials that combine good electrical and mechanical properties. The wide range of Wieland alloys provides the optimal material for each and every application.

Learn more about
WITRONIC

The Wieland WICONNEC brand offers a range of copper materials in the form of bars and wires that are ideal for machined sockets and pins for plug connectors. This material portfolio also offers low cost brass materials in addition to specially developed copper alloys for complex applications.

Learn more about
WICONNEC

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K41	CuNi1Pb1P*	-	C19150 / C19160
K44	CuNi1Pb0.6P*	-	C19140 / C19150
KC1	CuPb1P	CW113C	C18700
eco KS2^®	CuSP	CW114C	C14700

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z10	CuZn37Pb0,5	CW604N	C33500
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z14	CuZn37Pb2	CW606N	C35300
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z32/Z33	CuZn39Pb3	CW614N	C38500

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco S34^®	CuZn34Mn2SiAlNi*	-	C67340

Wieland	EN Designation	EN No.	ASTM UNS-No.
B44/B45	CuSn4Pb4Zn4	CW456K	C54400
eco BS4^®	CuSn5NiPS*	-	-

Wieland-Werke AG

Organization

Metal Information

Locations

Global proximity you can count on

Wieland-Werke AG

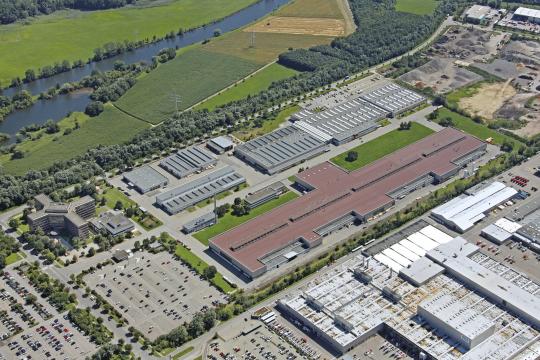

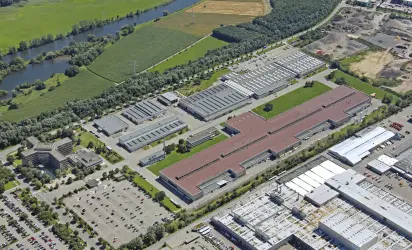

Wieland-Werke AG – Vöhringen

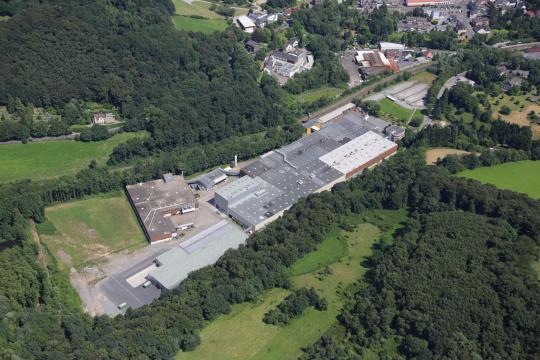

Wieland-Werke AG – Velbert

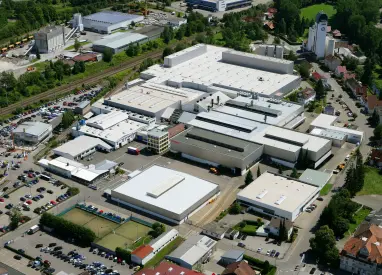

Wieland-Werke AG – Villingen-Schwenningen

Products

Our products at a glance

Product categories

Headline

Materials

Materials

Materials

Materials

Materials

View our datasheets to learn more

Optimised heat transfer for your shell-and-tube heat exchanger

Your advantages at a glance

Optimized heat transfer for your shell-and-tube heat exchanger

Materials

Our Materials

You can find more product information here

For extreme efficiency in a variety of applications

Your advantages at a glance

Materials

Our Materials

You can find more product information here

For compact coils and bent shapes

Your advantages at a glance

Materials

Our Materials

You can find more information here

For highest efficiency in controlling the temperature of gases and liquids

Your advantages at a glance

Materials

Our Materials

You can find more information here

For absolutely reliable media separation with best thermal contact

Your advantages at a glance

Our Materials

Read more

You can find more information here

Your advantages at a glance

You can find more information here

Your advantages at a glance

You can find more information here

4 good reasons for the Wieland safety heat exchanger series

You can find more information here

Your advantages at a glance

You can find more information here

Figure out with us the best heat exchanger design for your heat-transfer challenge

Our offer

Your application

Your benefits at a glance

Our materials

Materials

Materials

Materials

Materials

Materials

Materials

Materials

Materials

K65 - Sustainable and efficient

More K65 products in other categories

Your benefits

Typical applications

Technical properties

Further information

cuproclima

Your benefits

Fields of application

Technical Properties

Copper tubes with ultra clean inner surface for industrial applications

Your benefits

Fields of application

Technical properties
