Other finished products






Our range of products

Our other finished products at a glance.

To show the product portfolio of a specific location, please select the company:


Finished parts

Fittings, Solder and Skirting boards

Fittings

Mold Manufacturing

Vineyard products

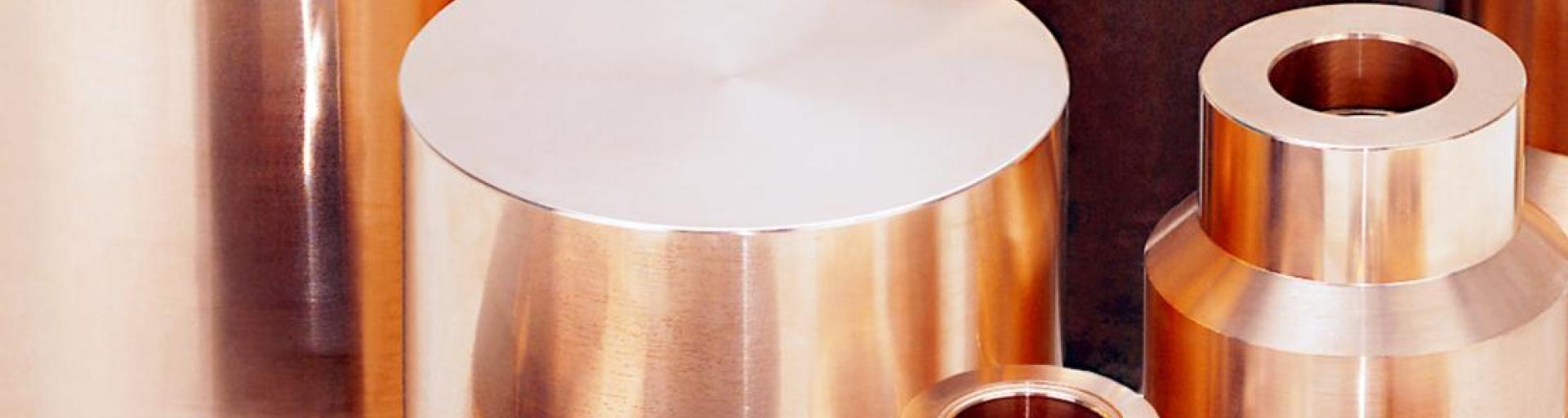

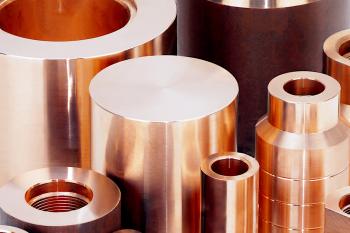

Finished parts

Material designation

Do you need finished parts according to drawings? Here, too, we are your competent supplier.

We offer you for example:

  • electrodes and other accessories for resistance welding technology
  • input material for die-cast pistons and finished pistons
  • semi-finished products made of highly conductive copper-based materials for tool and mould construction
  • parts made of refractory metals

Components from Elmedur

Our Elmedur materials are particularly versatile. We produce parts from them according to drawings - and of course also individual parts. All according to your wishes and requirements.

Electrodes

No matter which electrodes you need: Among our large selection of standard electrodes you will find the right one for your purposes. We manufacture electrodes from hardenable copper materials, which are very hard and at the same time highly conductive. They are ideal for applications in which high electrical currents are transmitted under high mechanical loads.

Fittings, Solder and Skirting boards

Material designation

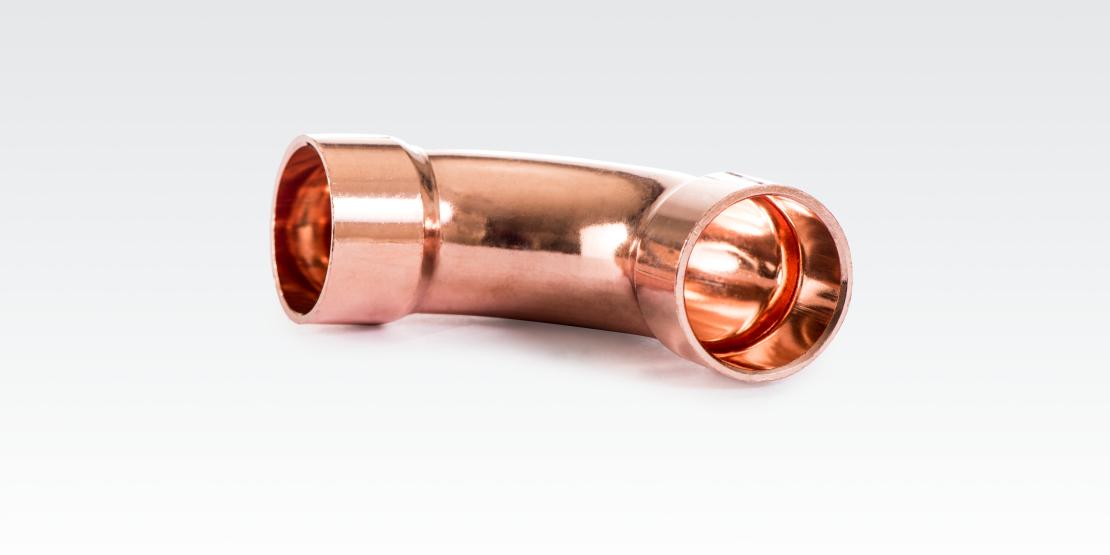

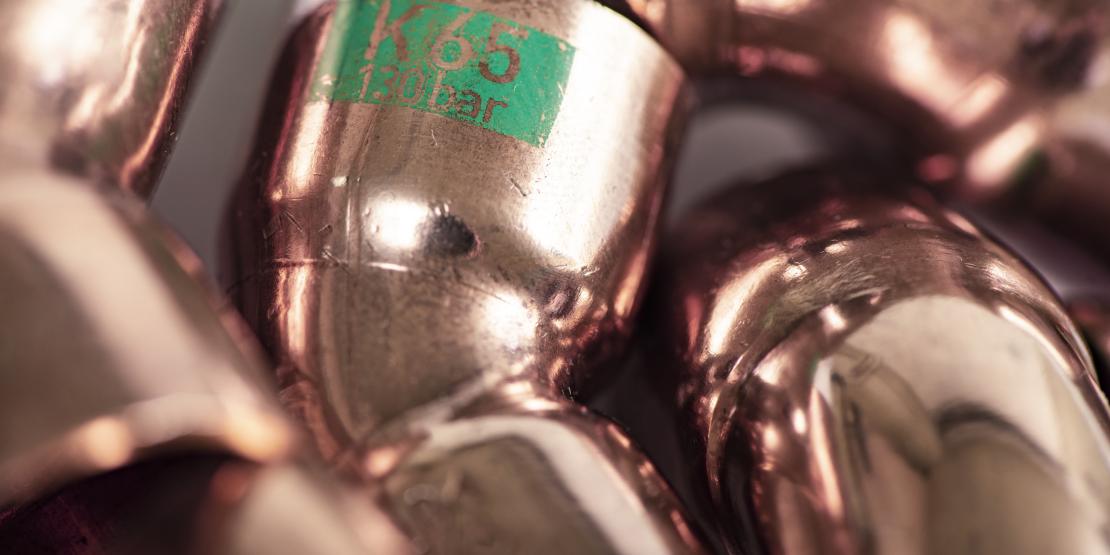

Solder fitting
For connoisseurs of the plumbing and heating trade, the Conex | Bänninger >B< is a trademark that has stood for safety, quality and innovative products since 1909.

Fittings made of copper from Conex | Bänniger of the 5000 series: this material is oxygen-free and contains a copper mass fraction of at least 99.90%. It has excellent soft and hard solderability.

Gunmetal fittings from Conex | Bänniger of the 4000 and 3000 series: the gunmetal alloy of the cast fittings fully complies with the requirements of the new EN 1982 and can therefore be used for drinking water in accordance with ÖNORM
B 5014-3. The alloy offers the highest possible protection and has good soft and hard solderability.

CONEX clamping ring connectors
CONEX clamping ring connectors belong to the group of metal-sealing plain pipe connections and consist of fitting body, clamping ring and union nut. The tubes to be connected are pushed through the pre-assembled connection into the fitting body as far as it will go and the union nut is tightened by hand. The union nuts are tightened with commercially available tools or with the CONEX wrench. In the process, the compression ring deforms and forms the metallic sealing connection between the tube and the fitting.

>B< Press Fitting and >B< Press Gas Fitting
With the current >B< Press connection technology made of material copper and gunmetal, we offer another highly economical installation technology. >B< Press Fittings series P4000 and P5000 have been specially developed for the field of plumbing and heating installation and can also be used for many other applications. The >B< Press Fittings range includes over 300 different items in copper and gunmetal materials. The >B< Press Gas Fittings series PG4000 and PG5000 have the quality mark certificate no. G 2.692 for gas.

>B< Oyster
The high quality transition coupling >B< Oyster made of gunmetal allows a quick, clean and economical assembly of all screwed components with internal thread. Application in the fields of drinking water, rainwater, heating, oil-free compressed air and in industry. The cold and energy-independent connection technology is particularly suitable for installation in areas at risk of fire. >B< Oyster are detachable and reusable.



Fittings

Solder fitting
For connoisseurs of the plumbing and heating trade, the Conex | Bänninger >B< is a trademark that has stood for safety, quality and innovative products since 1909.

Fittings made of copper from Conex | Bänniger of the 5000 series: this material is oxygen-free and contains a copper mass fraction of at least 99.90%. It has excellent soft and hard solderability.

Gunmetal fittings from Conex | Bänniger of the 4000 and 3000 series: the gunmetal alloy of the cast fittings fully complies with the requirements of the new EN 1982 and can therefore be used for drinking water in accordance with ÖNORM
B 5014-3. The alloy offers the highest possible protection and has good soft and hard solderability.

CONEX clamping ring connectors
CONEX clamping ring connectors belong to the group of metal-sealing smooth pipe connections and consist of a fitting body, clamping ring and union nut. The tubes to be connected are pushed through the pre-assembled connection into the fitting body as far as it will go and the union nut is tightened by hand. The union nuts are tightened with commercially available tools or with the CONEX wrench. In the process, the clamping ring deforms and forms the metallic sealing connection between the tube and the fitting.

>B< Press Fitting and >B< Press Gas Fitting
With the current >B< Press connection technology made of material copper and gunmetal, we offer another highly economical installation technology. >B< Press Fittings series P4000 and P5000 have been specially developed for the field of plumbing and heating installation and can also be used for many other applications. The >B< Press Fittings range includes over 300 different items in copper and gunmetal materials. The >B< Press Gas Fittings series PG4000 and PG5000 have the quality mark certificate no. G 2.692 for gas.

>B< Oyster
The high quality transition coupling >B< Oyster made of gunmetal allows a quick, clean and economical assembly of all screwed components with internal thread. Application in the fields of drinking water, rainwater, heating, oil-free compressed air and in industry. The cold and energy-independent connection technology is particularly suitable for installation in areas at risk of fire. >B<-Oysters are detachable and reusable.



Materials

Material designation

Wieland EN Designation EN No. ASTM UNS-No. JIS-No.
K19 Cu-DHP CW024A C12200 C1220
* Material not standardized in EN

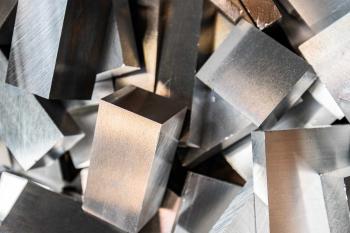

Mold Manufacturing


Aluminum Bronze – Plastic Injection Molding Dies for Mold Construction



Benefits

  • High tensile and fatigue strength
  • Extreme toughness, even at high temperatures up to 400°C
  • Thermal conductivity increases as temperature increases
  • Excellent resistance to scaling, erosion, and cavitation pitting
  • Excellent corrosion resistance, especially in environments with high humidity
  • Easy mechanical processing
  • Good sliding properties
  • Can be used in the delivered condition, no hardening required, thus no warping like with steel
  • MIG and TIG welding possible
  • Reduced cycle times and production costs by eliminating costly coolant duct systems



Stock/Quality

  • We saw to your desired dimensions – fast, clean, and true to size!
  • sheets with polished surfaces starting at 4 mm thickness, with milled surfaces from 27 mm to 145 mm thickness
  • Pressed bars with edges, straightened: flat from 20x10mm to 160x52mm, square from 20x20mm to 90x90mm
  • 100% ultrasonically tested
  • Thermally relaxed
  • Flatness max. 3 mm/m



Characteristics

 Alcaro®AB4S/SheetsAlcaro®AB4S/Edged Rods
Thermal Conductivity W/m×K at approx. room temperature5050
Thermal Conductivity W/m × K at approx. 300°C7373
Tensile Strength Rm N/mm² approx.720720
Yield Strength Rp0.2 N/mm² ca.320 – 370480 – 530
Brinell Hardness HB ca. 200
Vickers Hardness HV ca.180
Ultimate Strain A5 % approx.2010
Expansion Coefficient 10-6/K1717



Machining information

Material: Alcaro®AB4S/Sheets

Turning/MillingExcellent
PolishabilityExcellent
Wire EDMExcellent

Die-Sinking EDM

Good

Thread CuttingGood, Sharp
Welding (WIG)Good
Galvanic Surface TreatmentGood
DrillingGood

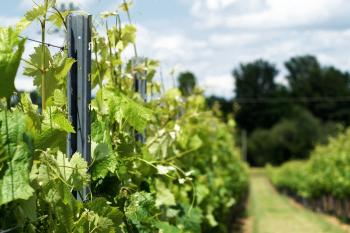

Vineyard products

The Wieland Vineyard Products division offers you complete range of galvanized steel profiled posts, trellising wires and adapted solutions, developed thanks to its close collaboration with the actors of the wine industry.

Impregnated with this culture, Wieland is also a must in the cooperage strip market.  Wieland’s strong presence alongside winegrowers in all European vineyards enables it to support you in optimizing the trellising techniques and solutions necessary for the sustainable performance of your production tool.

Material designation

To complete and easily upgrade your trellising, Wieland offers you a wide range of accessories that can be adapted to its products or customized:

  • Staples for planting stakes
  • Adapters for synthetics wires
  • Chains
  • Setting system for wires
  • Spreaders
  • Punching tools
  • Stainless-steel pins
  • Elevation system

Other special and custom-made accessories on request
