Sheets and Plates

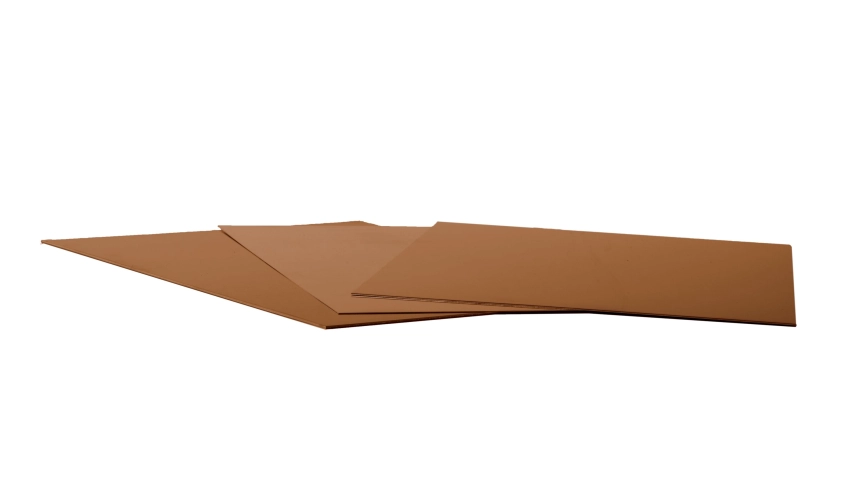

    Bronze Sheets and Plates

    Bronze sheets and plates from Wieland are available as cold rolled sheets in standard or extra-wide format, or as hot rolled plates, each produced in various tempers, in accordance with DIN EN 1652.
    Additional information

    Material overview

    ASTM-UNS No.    		 Wieland Designation ⁠EN Designation EN No. JIS No. Data Sheet
    C51100    		 B14 CuSn4 CW450K - download
    C51900    		 B16 CuSn6 CW452K - download
    C52100    		 B18 CuSn8 CW453K C5212 download
    C51000    		 B15 CuSn5 CW451K - download
    C52100    		 B12 CuSn8P CW459K - -
    C63020    		 U35 CuAl10Ni5Fe4 CW307G - -
    Overview Available Dimensions Delivery Formats

    Choosing the Right Bronze Alloy For Your Application



    Need help selecting the right alloy? Use our Alloy Wizard to compare materials and identify the best option for your application.

    Alloywizard

    Compare materials and tempers based on key mechanical and physical properties and find the best solution for your application.

    Available Dimensions



    FormatMax. LengthMax. WidthThickness
    Standard format sheets3,000 mm800 mm0.3–3 mm
    Extra-wide format sheets5,500 mm1,250 / 1,600 mm1–10 / 2–6 mm
    Hot rolled plates6,000 mm825 mm10–70 mm



    Delivery Formats



    • Surfaces: rolled, milled, polished, brushed, foil coating
    • Special quality grade: engraving, circular blank (Ø 200–1,200 mm), architectural sheet.
