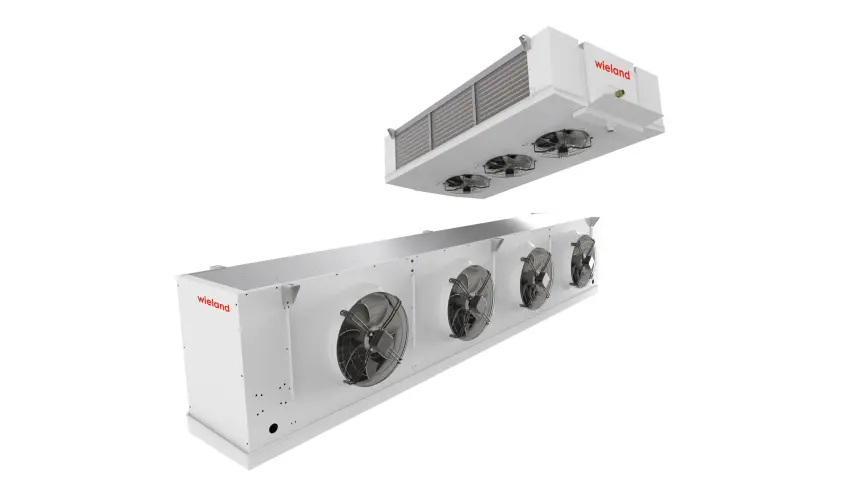

Unit Coolers & Brine Coolers

Wieland unit coolers are designed for efficient air cooling in commercial and industrial refrigeration applications. The range includes standard cubic unit coolers, dual flow, centrifugal and radial designed for application requiring high static pressure. The full range is available with brine and refrigerant. With copper tube and aluminium fin heat exchange coils, robust casing designs and efficient fan technology, the portfolio supports different installation layouts, air distribution concepts, operating temperatures and refrigeration system requirements.

Additional information

Overview Product Variants Typical Applications Further Information

Air cooling solutions for commercial and industrial refrigeration

Unit coolers are used where air needs to be cooled efficiently and reliably in refrigeration systems. Depending on the application, the range covers direct expansion units, compact commercial designs, brine-operated coolers and radial units prepared for textile duct connection.

The portfolio is designed for different system requirements, from compact commercial refrigeration to larger industrial installations with high air flow, dual discharge or high available static pressure.

At a glance

Tubes and fins available in several materials
High-efficiency fin corrugation
Robust casing designs available in serval materials

High efficiency fans
Multiple fin spacing options for different operating conditions
Defrosting options available depending on product type

Product Variants

Type	Gamma	Fluid	Standard design pressure	Capacity
Cubic	EKC	Refrigerant	30/45 bar	1–25 kW
	EF/EFG			3–75 kW
	E/EG			10–175 kW
	AKC	Brine	10 bar	1–15 kW
	AF			2–60 kW
	A			6–100 kW
Dual flow	EKD	Refrigerant	30/45 bar	1–25 kW
	ED	Refrigerant	30/45 bar	7–75 kW
	AKD	Brine	10 bar	1–12 kW
	AD	Brine	10 bar	5–60 kW
Centrifugal	EC	Refrigerant	30/45 bar	5–75 kW
Centrifugal	AC	Brine	10 bar	3–60 kW
Radial	ER/ERG	Refrigerant	30/45 bar	10–100 kW
Radial	AR	Brine	10 bar	6–90 kW
Blast-freezer	ET	Refrigerant	30/45 bar	15–250 kW
Blast-freezer	AT	Brine	10 bar	10–150 kW

.component-image-text--animate .col-image picture, .component-image-text--animate .col-map .map-consent-wrapper, .component-image-text--animate .col-map .mapview, .component-image-text--animate .col-content { opacity: 1 !important; transform: none !important; clip-path: none !important; transition: none !important; }

Wieland Selector – find the ideal air-cooled solution for your project

In just a few steps, configure the dry cooler that best matches your operating conditions and performance requirements – with accurate selection, fast results and complete documentation.

Download Software

Typical Applications

Unit coolers are suitable for a wide range of commercial and industrial refrigeration applications. Depending on the system design, they can be used for direct expansion refrigeration, brine or glycol cooling, dual-discharge air distribution and ducted radial air flow.

Further Information

Technical Features

›

Finned coil design

The finned coils are manufactured with copper tubes and aluminium fins. The fins feature a high-efficiency corrugated profile designed to maximize heat transfer performance while ensuring optimized air distribution and minimizing droplet carry-over.

For corrosive or demanding environments, a range of protective solutions is available on request, including stainless steel tubes, pre-coated aluminium fins, and specialized coil coatings to enhance durability and corrosion resistance.

Frame and casing

Depending on the product range, the units are manufactured with galvanized steel and aluminium frames, finished with a durable RAL 9016 epoxy coating to ensure long-lasting protection.

For installations in particularly aggressive environments, stainless steel frame is available on request, providing enhanced corrosion resistance and extended service life.

Fan technology

The product range incorporates advanced fan technology for each application. Cubic and dual flow coolers are equipped with high-efficiency external rotor fans, while radial coolers feature state-of-the-art electronic plug fans capable of generating high static pressure.

Careful fan sizing and selection ensure the perfect balance between airflow, energy efficiency, and acoustic comfort, providing reliable and high-performance operation in every installation.

Testing

All coils are subjected to pneumatic testing at the designated test pressure to guarantee the highest level of leak integrity.

Options

›

Available options depend on the selected product range and configuration.

Category	Accessory code	Description
Fan wiring and electrical equipment	CB	Fans wiring on a terminal box
	SW	Safety switches for each fan
	EC	Electronic fans
Supports	FM	Floor mounting supports
Coil and fins options	PV	Prepainted aluminium fins
	CT	Cataphoresis Treatment
	IX/IX316	Stainless steel tubes (AISI304/AISI316L)
Installation and casing	IF/IF316	Stainless steel frame and casing
	FA	Suction filters
	RA	Special frame colour
Defrosting	E	Electric defrost
	EL	Light electric defrost
	FR	Fan ring heaters
	EV	Drip tray electric defrost
	HG	Hot gas defrost
	W	Water defrost
	SE	Imbricated hot glycol defrost
Others	ID	Double insulated drip tray
	CL	Air discharge cowls
	PR	Post heating coil
	CE45	45 bar version
