Other finished products
Our range of products
Our other finished products at a glance.
Our complete product range
To show the product portfolio of a specific location, please select the company:
Fittings
Fittings, Solder and Skirting boards
Vineyard products
Finished parts
Mold Manufacturing

Solder fitting
For connoisseurs of the plumbing and heating trade, the Conex | Bänninger >B< is a trademark that has stood for safety, quality and innovative products since 1909.
Fittings made of copper from Conex | Bänniger of the 5000 series: this material is oxygen-free and contains a copper mass fraction of at least 99.90%. It has excellent soft and hard solderability.
Gunmetal fittings from Conex | Bänniger of the 4000 and 3000 series: the gunmetal alloy of the cast fittings fully complies with the requirements of the new EN 1982 and can therefore be used for drinking water in accordance with ÖNORM
B 5014-3. The alloy offers the highest possible protection and has good soft and hard solderability.
CONEX clamping ring connectors
CONEX clamping ring connectors belong to the group of metal-sealing smooth pipe connections and consist of a fitting body, clamping ring and union nut. The tubes to be connected are pushed through the pre-assembled connection into the fitting body as far as it will go and the union nut is tightened by hand. The union nuts are tightened with commercially available tools or with the CONEX wrench. In the process, the clamping ring deforms and forms the metallic sealing connection between the tube and the fitting.
>B< Press Fitting and >B< Press Gas Fitting
With the current >B< Press connection technology made of material copper and gunmetal, we offer another highly economical installation technology. >B< Press Fittings series P4000 and P5000 have been specially developed for the field of plumbing and heating installation and can also be used for many other applications. The >B< Press Fittings range includes over 300 different items in copper and gunmetal materials. The >B< Press Gas Fittings series PG4000 and PG5000 have the quality mark certificate no. G 2.692 for gas.
>B< Oyster
The high quality transition coupling >B< Oyster made of gunmetal allows a quick, clean and economical assembly of all screwed components with internal thread. Application in the fields of drinking water, rainwater, heating, oil-free compressed air and in industry. The cold and energy-independent connection technology is particularly suitable for installation in areas at risk of fire. >B<-Oysters are detachable and reusable.

Solder fitting
For connoisseurs of the plumbing and heating trade, the Conex | Bänninger >B< is a trademark that has stood for safety, quality and innovative products since 1909.
Fittings made of copper from Conex | Bänniger of the 5000 series: this material is oxygen-free and contains a copper mass fraction of at least 99.90%. It has excellent soft and hard solderability.
Gunmetal fittings from Conex | Bänniger of the 4000 and 3000 series: the gunmetal alloy of the cast fittings fully complies with the requirements of the new EN 1982 and can therefore be used for drinking water in accordance with ÖNORM
B 5014-3. The alloy offers the highest possible protection and has good soft and hard solderability.
CONEX clamping ring connectors
CONEX clamping ring connectors belong to the group of metal-sealing plain pipe connections and consist of fitting body, clamping ring and union nut. The tubes to be connected are pushed through the pre-assembled connection into the fitting body as far as it will go and the union nut is tightened by hand. The union nuts are tightened with commercially available tools or with the CONEX wrench. In the process, the compression ring deforms and forms the metallic sealing connection between the tube and the fitting.
>B< Press Fitting and >B< Press Gas Fitting
With the current >B< Press connection technology made of material copper and gunmetal, we offer another highly economical installation technology. >B< Press Fittings series P4000 and P5000 have been specially developed for the field of plumbing and heating installation and can also be used for many other applications. The >B< Press Fittings range includes over 300 different items in copper and gunmetal materials. The >B< Press Gas Fittings series PG4000 and PG5000 have the quality mark certificate no. G 2.692 for gas.
>B< Oyster
The high quality transition coupling >B< Oyster made of gunmetal allows a quick, clean and economical assembly of all screwed components with internal thread. Application in the fields of drinking water, rainwater, heating, oil-free compressed air and in industry. The cold and energy-independent connection technology is particularly suitable for installation in areas at risk of fire. >B< Oyster are detachable and reusable.
HZ skirting boards - The original! The most elegant way to make copper tubes invisible. With HZ products, special emphasis is placed on ease of installation. Quick and smooth installation is possible even in difficult installation situations in old buildings.
HZ radiator connections offer the right radiator connection for every tube! The simple and complete HZ radiator connections - whether for soldering, pressing, plugging, clamping or screwing - bring many advantages. They can be used on the right and left side of the radiator and usually no chiselling out is necessary for installation - so time-saving and simple processing is guaranteed.
SUPERSAN® soft solders
SUPERSAN® soft solders are solders for joints of tubes and fittings which are produced with a working temperature of less than 450° C. SUPERSAN® soft solders have the ÖVGW quality mark certificate no.: W 1.156 for drinking water. The solders are distinguished as tin-silver soft solders, e.g. SUPERSAN©-220, on yellow hand coil and tin-copper soft solders, e.g. SUPERSAN©-ST2 or -ST3, on blackberry-red hand coil.
SUPERSAN® soft solder flux and paste
SUPERSAN® soft solder fluxes are ideally suited for joints of tubes and solder fittings of the 4000 and 5000 series for a maximum working temperature of 450°C. For example, there is the SUPERSAN©-FLUX 100 soft solder flux and the SUPERSAN©-FIT 4000 soft solder paste and they have the ÖVGW quality mark Certificate No.: W 1.157 for drinking water.
SUPERSAN® Brazing Alloys
SUPERSAN® brazing alloys are brazing alloys for joints of tubes and fittings which are manufactured with working temperatures above 450° C. The brazing alloys are divided into silver brazing alloys, copper-phosphorus brazing alloys and special brass brazing alloys. The brazing alloys are supplied in the form of rods 500 mm long. Silver brazing alloys are available both bare and coated. Our brazing alloys can be distinguished by their shape: silver brazing alloys and special brass brazing alloys have a round shape, while our phosphorus brazing alloys have a square shape.

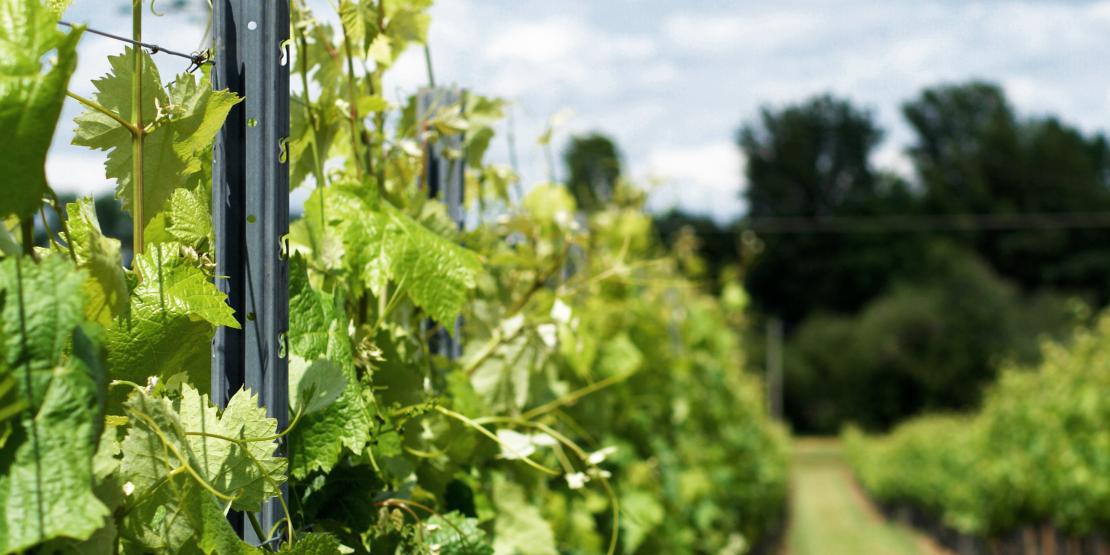

The Wieland Vineyard Products division offers you complete range of galvanized steel profiled posts, trellising wires and adapted solutions, developed thanks to its close collaboration with the actors of the wine industry.
Impregnated with this culture, Wieland is also a must in the cooperage strip market. Wieland’s strong presence alongside winegrowers in all European vineyards enables it to support you in optimizing the trellising techniques and solutions necessary for the sustainable performance of your production tool.
Materials
To complete and easily upgrade your trellising, Wieland offers you a wide range of accessories that can be adapted to its products or customized:
- Staples for planting stakes
- Adapters for synthetics wires
- Chains
- Setting system for wires
- Spreaders
- Punching tools
- Stainless-steel pins
- Elevation system
Other special and custom-made accessories on request

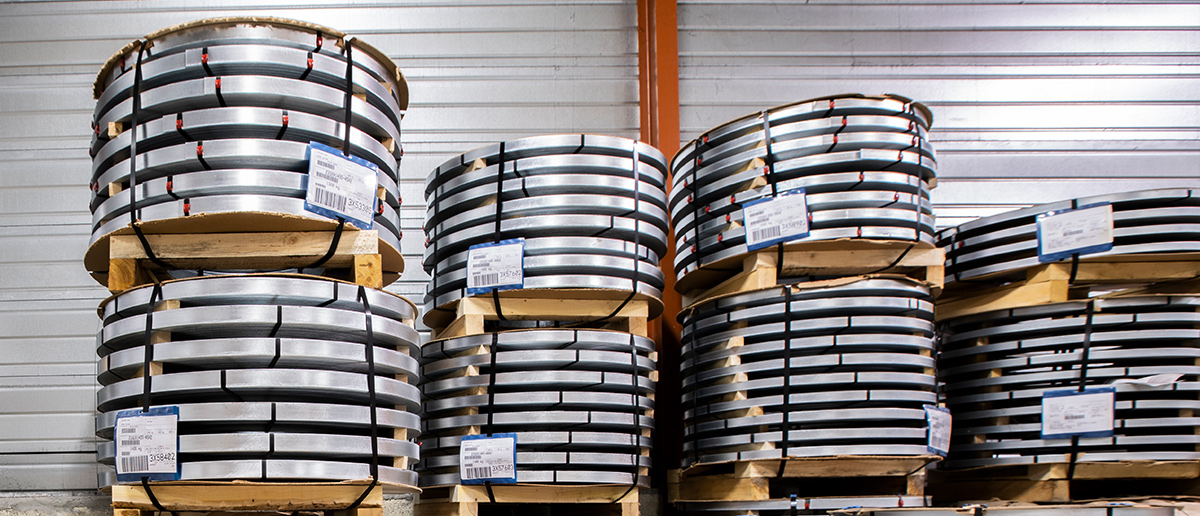

Recognized by the big names in the cooperage industry for its quality and service, Wieland equips its partners with galvanized strips to strap barrels, large containers, and other barrel products.
Strips available in the following sizes
Thicknesses: 1.6 to 5 mm
Widths: 25 to 90 mm

Other qualities and other dimensions on request
A true reference in trellising, our Linus® range ensures you the best selection of profiles and notching systems to meet the requirements of your specifications (structure, productivity, mechanization).
Linus® posts are entirely produced with S250GD-standard steels and continuously hot-dip coated with Galfan® (95% zinc and 5% aluminum).
For nonstandard lengths and specific notches, please contact us.
Row post Linus® Optinus
- Steel thicknesses: 1.5 mm and 1.8 mm
- Steel quality: S250GD
- Galfan/Hot dip galvanization
- Linus® Certified marking
- Hybrid notches
Download the technical data sheet
Row post Linus® Vignus
- Steel thicknesses: 1.5 mm and 1.8 mm
- Steel quality: S250GD
- Galfan/Hot dip galvanization
- Linus® Certified marking
- Hybrid notches
Download the technical data sheet
Row post Linus® 5094 Lift
- Steel thicknesses: 1.5 mm and 1.8 mm
- Steel quality: S250GD
- Galfan/Hot dip galvanization
- Linus® Certified marking
- N + Lift notches
End post Linus® 5395
- Steel thicknesses: 1.5 mm and 1.8 mm
- Steel quality: S250GD
- Galfan/Hot dip galvanization
- Linus® Certified marking
- Hole every 10 cm
The profiled posts in this range are available in Z275, ZAM, Immersion galvanization or in CORTEN steel.
Row post Picpal
- Thicknesses 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- H/N/U notches
Download the technical data sheet
Row post Palis
- Thickness 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- H/N/U notches
Download the technical data sheet
Row post ER3030
- Thickness 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- Post with latches/exterior latches
Download the technical data sheet
Row post ER4332
- Thickness 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- Post with latches/exterior latches
Download the technical data sheet
Row post ER5035
- Thickness 1.5 and 1.8 mm
- DX51 steel
- Z275 coating/immersion
- Post with latches/exterior latches
Download the technical data sheet
Short cut post
- Thickness 1.8 mm, 2 mm, and 2.5 mm
- DX51 steel
- Z275 coating
- To be installed with stainless-steel V rod
Download the technical data sheet
End post Palis 50×53
- Thickness 2 mm
- DX51 steel
- Z275 coating/immersion
- Drilling every 10 cm
Download the technical data sheet
End post Palis 55×41
- Thickness 2 mm
- DX51 steel
- Z275 steel
- Drilling every 10 cm
Download the technical data sheet
Galvanized U16 planting stake
- Wide section for better stability
- Thicknesses 1.2 mm/1.5 mm/
1.8 mm - All lengths on request
Download the technical data sheet
Galvanized P8 planting stake
- Closed profile for better resistance
- Thickness 1 mm
- All lengths on request
Download the technical data sheet
Galvanized notched planting stake
- Galvanized steel diameter 7mm
- Strong resistance
- Other diameters and lengths on request
Download the technical data sheet
Linfil
- High-performance vine wire with Galfan® coating (zinc + aluminum) for a longer life.
- Higher tensile strength and breaking load than richly galvanized wires.
- Low elongation to reduce maintenance times.
Download the technical data sheet
Fil inox
- 18/8.5 stainless-steel wire for exceptional durability
- Breaking load 1350 N/mm²
- Max. elongation 3%
- Work-hardened or annealed stainless steel (anchoring)
Download the technical data sheet

Do you need finished parts according to drawings? Here, too, we are your competent supplier.
We offer you for example:
- electrodes and other accessories for resistance welding technology
- input material for die-cast pistons and finished pistons
- semi-finished products made of highly conductive copper-based materials for tool and mould construction
- parts made of refractory metals
Components from Elmedur
Our Elmedur materials are particularly versatile. We produce parts from them according to drawings - and of course also individual parts. All according to your wishes and requirements.
Electrodes
No matter which electrodes you need: Among our large selection of standard electrodes you will find the right one for your purposes. We manufacture electrodes from hardenable copper materials, which are very hard and at the same time highly conductive. They are ideal for applications in which high electrical currents are transmitted under high mechanical loads.
Components made of high-melting metals
From our refractory metals molybdenum, TZM, tungsten and tantalum we manufacture parts according to drawings as well as individual parts. As the metals are very easy to process, they are ideal for a wide range of applications.

Aluminum Bronze – Plastic Injection Molding Dies for Mold Construction
Benefits
- High tensile and fatigue strength
- Extreme toughness, even at high temperatures up to 400°C
- Thermal conductivity increases as temperature increases
- Excellent resistance to scaling, erosion, and cavitation pitting
- Excellent corrosion resistance, especially in environments with high humidity
- Easy mechanical processing
- Good sliding properties
- Can be used in the delivered condition, no hardening required, thus no warping like with steel
- MIG and TIG welding possible
- Reduced cycle times and production costs by eliminating costly coolant duct systems
Stock/Quality
- We saw to your desired dimensions – fast, clean, and true to size!
- sheets with polished surfaces starting at 4 mm thickness, with milled surfaces from 27 mm to 145 mm thickness
- Pressed bars with edges, straightened: flat from 20x10mm to 160x52mm, square from 20x20mm to 90x90mm
- 100% ultrasonically tested
- Thermally relaxed
- Flatness max. 3 mm/m
Characteristics
Alcaro®AB4S/Sheets | Alcaro®AB4S/Edged Rods | |
Thermal Conductivity W/m×K at approx. room temperature | 50 | 50 |
Thermal Conductivity W/m × K at approx. 300°C | 73 | 73 |
Tensile Strength Rm N/mm² approx. | 720 | 720 |
Yield Strength Rp0.2 N/mm² ca. | 320 – 370 | 480 – 530 |
Brinell Hardness HB ca. | 200 | |
Vickers Hardness HV ca. | 180 | |
Ultimate Strain A5 % approx. | 20 | 10 |
Expansion Coefficient 10-6/K | 17 | 17 |
Machining information
Material: Alcaro®AB4S/Sheets
Turning/Milling | Excellent |
Polishability | Excellent |
Wire EDM | Excellent |
Die-Sinking EDM | Good |
Thread Cutting | Good, Sharp |
Welding (WIG) | Good |
Galvanic Surface Treatment | Good |
Drilling | Good |
Wieland | EN Designation | EN-No. | ASTM-UNS-No. |
---|---|---|---|
Elmedur B2 | CuBe2 | CW101C | C17200 |
Elmedur HA | CuCoNiBe | CW103C | ~C17500 |
Elmedur HC | CuNi2Be | CW110C | C17510 |
Elmedur NCS | CuNi2SiCr | ~CW111C | C18000 |
Elmedur X | CuCrZr | CW106C | C18150 |
