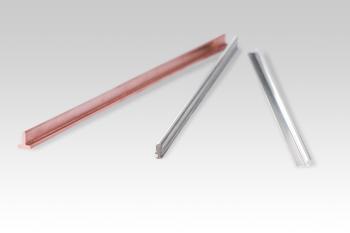

Wire and sectional wire
Whether complex or standard versions – we produce to your specifications. Wieland wire and sectional wire can be used for a great many applications, e.g. as filigree profiles for the optics industry, high conductivity round wires for the aerospace sector, and rectangular wires for zip fasteners.
You can choose from a virtually unlimited number of geometries, profiles, and delivery forms. Besides copper and the usual copper alloys, e.g. brass, German silver, and bronze, we also manufacture wires from special alloys, tailored to your specific applications.
Our range of products
Our wire and sectional wire at a glance.
The products of Wieland Nemco are displayed.

WITRONIC

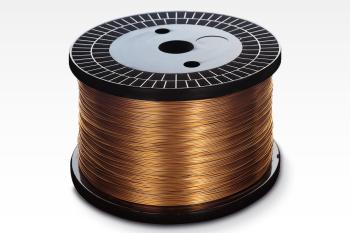

Wire
WITRONIC

Electrical and electronic applications often require materials that combine good electrical and mechanical properties. The wide range of Wieland alloys provides the optimal material for each and every application.
Learn more about
WITRONIC
Wire

Materials
- Copper
- High-copper alloy
- High-performance alloys
- Machining brass
- Copper-nickel alloy
- Brass
- Special brass
- Phosphor bronze
- Nickel silver
- Copper-manganese alloy
Material designation
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
K10 | Cu-OFE | CW009A | C10100 | |
K10 | Cu-OFE | CW009A | C10100 | |
K12 | Cu-HCP | CW021A | C10300 | |
K12 | Cu-HCP | CW021A | C10300 | |
K30 | Cu-OF | CW008A | C10200 | |
K30 | Cu-OF | CW008A | C10200 | |
K32 | Cu-ETP | CW004A | C11000 | C1100 |
K32 | Cu-ETP | CW004A | C11000 | C1100 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
K41 | - | - | C19150 / C19160 |
K41 | - | - | C19150 / C19160 |
K65 | CuFe2P | CW107C | C19400 |
K65 | CuFe2P | CW107C | C19400 |
K81 | CuSn0,15 | CW117C | C14415 |
K81 | CuSn0,15 | CW117C | C14415 |
KC1 | CuPb1P | CW113C | C18700 |
KC1 | CuPb1P | CW113C | C18700 |
KS2 | CuSP* | CW114C | C14700 |
KS4 | CuNi1SP* | - | - |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
K55 | CuNi3Si1Mg* | - | C70250 |
K55 | CuNi3Si1Mg* | - | C70250 |
K88 | CuCrAgFeTiSi | - | C18080 |
K88 | CuCrAgFeTiSi | - | C18080 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
Z11 | CuZn35Pb1 | CW600N | C34000 | |
Z11 | CuZn35Pb1 | CW600N | C34000 | |
Z12 | CuZn35Pb2 | CW601N | C34200 / C34500 | |
Z12 | CuZn35Pb2 | CW601N | C34200 / C34500 | |
Z21 | CuZn38Pb2 | CW608N | C35000 | C3713 |
Z21 | CuZn38Pb2 | CW608N | C35000 | C3713 |
Z23 | CuZn36Pb3 | CW603N | C36000 | |
Z29 | CuZn39Pb2 | CW612N | C37700 | |
Z29 | CuZn39Pb2 | CW612N | C37700 | |
Z31 | CuZn40Pb2 | CW617N | C38000 | |
Z31 | CuZn40Pb2 | CW617N | C38000 | |
Z32 | CuZn39Pb3 | CW614N | C38500 | |
Z32 | CuZn39Pb3 | CW614N | C38500 | |
Z33 | CuZn39Pb3 | CW614N | C38500 | |
Z33 | CuZn39Pb3 | CW614N | C38500 | |
Z33 | CuZn39Pb3 | CW614N | C38500 | |
Z40 | CuZn43Pb2Al | CW624N | - | |
Z40 | CuZn43Pb2Al | CW624N | - | |
Z41 | CuZn40Pb2 | CW617N | C38000 | |
Z41 | CuZn40Pb2 | CW617N | C38000 | |
Z45 | CuZn36Pb2As | CW602N | C35330 | |
Z45 | CuZn36Pb2As | CW602N | C35330 | |
Z46 | CuZn36Pb2As | CW602N | C35330 | |
Z46 | CuZn36Pb2As | CW602N | C35330 | |
Z48 | CuZn40Pb2 | CW617N | C38000 | |
Z48 | CuZn40Pb2 | CW617N | C38000 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
LV3 | CuNi9Sn* | - | C72700 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
M10 | CuZn10 | CW501L | C22000 | C2200 |
M10 | CuZn10 | CW501L | C22000 | C2200 |
M15 | CuZn15 | CW502L | C23000 | C2300 |
M15 | CuZn15 | CW502L | C23000 | C2300 |
M17 | CuZn15 | CW502L | C23000 | |
M20 | CuZn20 | CW503L | C24000 | C2400 |
M20 | CuZn20 | CW503L | C24000 | C2400 |
M36 | CuZn36 | CW507L | C27000 | C2700 |
M36 | CuZn36 | CW507L | C27000 | C2700 |
M37/M38 | CuZn37 | CW508L | C27200 | C2720 |
M37/M38 | CuZn37 | CW508L | C27200 | C2720 |
M37/M38 | CuZn37 | CW508L | C27200 | C2720 |
M37/M38 | CuZn37 | CW508L | C27200 | C2720 |
M41 | CuZn38As | CW511L | C27453 | |
M41 | CuZn38As | CW511L | C27453 | |
M57 | CuZn42 | CW510L | - | |
M57 | CuZn42 | CW510L | - | |
M58 | CuZn42 | CW510L | - | |
M58 | CuZn42 | CW510L | - | |
M59 | - | CW510L | - | |
M59 | - | CW510L | - |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
S34 | - | - | C67340 |
S34 | - | - | C67340 |
S40 | CuZn37Mn3Al2PbSi | CW713R | C67420 |
S40 | CuZn37Mn3Al2PbSi | CW713R | C67420 |
SE1 | - | - | - |
SW1 | CuZn21Si3P | CW724R | C69300 |
SW1 | CuZn21Si3P | CW724R | C69300 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
B09 | CuSn8 | CW453K | C52100 |
B09 | CuSn8 | CW453K | C52100 |
B10 | CuSn8 | CW453K | C52100 |
B10 | CuSn8 | CW453K | C52100 |
B44 | CuSn4Pb4Zn4 | CW456K | C54400 |
B44 | CuSn4Pb4Zn4 | CW456K | C54400 |
B45 | CuSn4Pb4Zn4 | CW456K | C54400 |
B45 | CuSn4Pb4Zn4 | CW456K | C54400 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
N31 | CuNi7Zn39Pb3Mn2 | CW400J | - |
N31 | CuNi7Zn39Pb3Mn2 | CW400J | - |
N32 | CuNi12Zn30Pb1 | CW406J | - |
N32 | CuNi12Zn30Pb1 | CW406J | - |
N35 | - | - | - |
N37 | CuNi18Zn19Pb1 | CW408J | - |
N37 | CuNi18Zn19Pb1 | CW408J | - |
N59 | CuNi9Zn41FeMn* | - | - |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
FX9 | CuMn15Zn15Al1 | - | C66950 |
