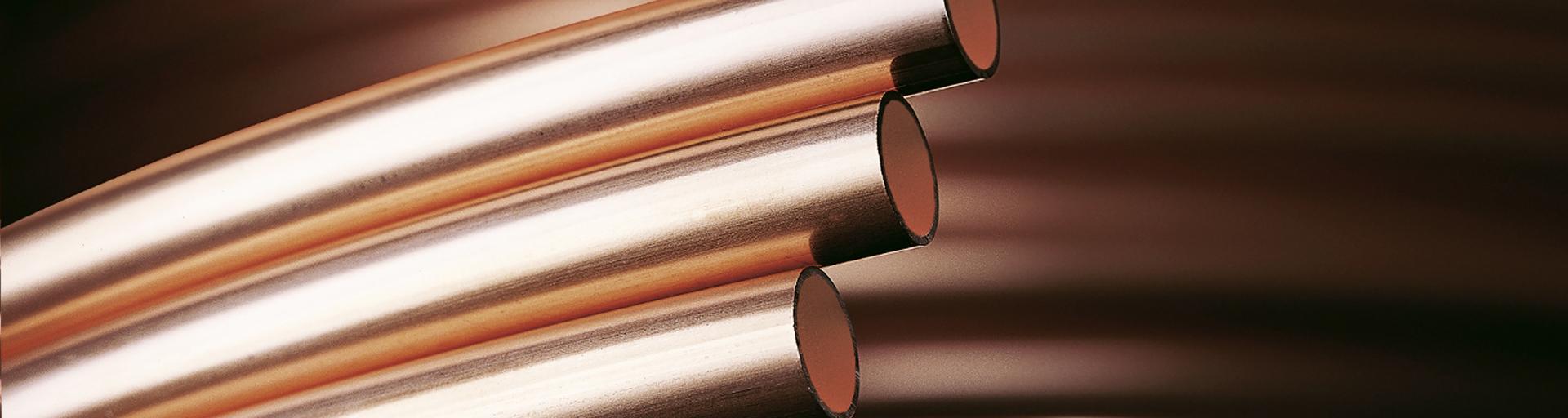

Smooth and innergrooved tubes
Wieland manufactures tubes tailored to customer requirements and the highest quality standards according to individual demands for a wide range of applications.
We burn for your individual requirements. Complex process sequences, continuously changing requirements and international competition pose ever new challenges for your company. With our customizing services we are able to master them together. This includes customer-specific services that allow you to break new ground, such as special qualities in strength and hardness, customer-specific product developments in form and function, as well as individual logistics solutions.
Our range of products
Our smooth and innergrooved tubes at a glance.
The products of Wieland SMH are displayed.

Tubes
Tubes

Materials
Material designation
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
K20 | Cu-DHP | CW024A | C12200 | |
K32 | Cu-ETP | CW004A | C11000 | C1100 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
Z11 | CuZn35Pb1 | CW600N | C34000 | |
Z21 | CuZn38Pb2 | CW608N | C35000 | C3713 |
Z31 | CuZn40Pb2 | CW617N | C38000 | |
Z33 | CuZn39Pb3 | CW614N | C38500 | |
Z35 | CuZn36Pb2As | CW602N | C35330 | |
Z45 | CuZn36Pb2As | CW602N | C35330 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. | Dimensions | Temper |
---|---|---|---|---|---|---|
M32 | - | - | C26000 | |||
M37 | CuZn37 | CW508L | C27200 | C2720 | ||
M38 | CuZn37 | CW508L | C27200 | C2720 | m | m |
M41 | CuZn38As | CW511L | C27453 | extruded/drawn | ||
M57 | CuZn42 | CW510L | - | extruded/drawn |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
S40 | CuZn37Mn3Al2PbSi | CW713R | C67420 |
S42 | CuZn37Mn3Al2PbSi | CW713R | - |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
B12 | CuSn8P | CW459K | C52100 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
U42 | CuAl10Fe5Ni5-C | CC333G | - |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
G07 | CuSn7Zn4Pb7-C | CC493K | - |
G07 | CuSn7Zn4Pb7-C | CC493K | - |
G12 | CuSn12-C* | CC483K | - |
G13 | CuSn12-C | CC483K | - |
G22 | CuSn7Pb15-C | CC496K | - |
G91 | CuSn11Pb2-C-GC* | CC482K | - |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
A05 | Al99,5 | AW-1050A | - |
A13 | AlMg3 | AW-5754 | - |
A22 | AlMgSi | AW-6060 | - |
A32 | AlSi1MgMn | AW-6082 | - |
A66 | - | - | - |
A76 | - | - | - |
