Slide bearings



Bringing movement into play: slide bearings from Wieland. Serving numerous applications, they can be found in technically sophisticated combustion engines as piston and connecting rod bushings or rocker arm pins. Wieland slide bearings are also used in bearings for modern axle and brake systems, transmissions, differentials and hydraulic pumps, as well as in oscillating elements such as booms or gripper systems on construction and agricultural machinery.



The products are manufactured in different versions according to your wishes. In cooperation with you, we work specifically on new and further developments of our products. We attach great importance to a modern and economical production.




Our range of products

Our slide bearings at a glance.

The products of Wieland-Werke AG are displayed.


Thrust washers

Turned bushings

Rolled bushings

Special parts

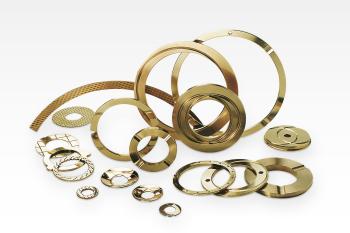

Thrust washers

Thrust washers are manufactured from Wieland strip, tubes, and rods. In particular, washers punched out of strip material are very economical in large quantities. You can order thrust washers made from strip as well as tubes and rods in almost every dimension and material. The design can be customized.



Type

Dimension range:

  • With plain running surface up to 155 mm diameter
  • With lubrication indents up to 110 mm diameter
  • In standard thicknesses of 1.0 / 1.5 / 2.0 / 2.5 and 3.0 mm
  • Other sizes upon request

 Further designs:

  • With grooves
  • With safety dogs
  • As a segment
  • Curved / Convex

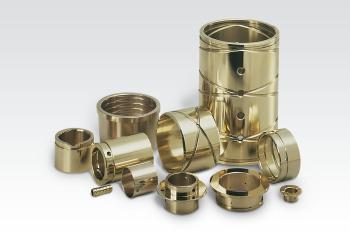

Turned bushings

New piston designs have become necessary due to legislation for pollutant emission of diesel engines. These design changes result in rising temperatures in the combustion chamber of the engine, with hot tensile strength and hot hardness of the bushings becoming increasingly important.

Bushings made of Wieland-SB8 and Wieland-SC5 are particularly suitable for the reinforcement of the piston eye.

Bushings in Wieland-SB8 and Wieland-SC5 are:

  • are particularly suitable for aluminium pistons
  • are wrought alloys (important: no casting) which are hot and cold worked
  • have excellent hot tensile strength
  • have outstanding oil corrosion resistance
  • have dynamic load resistance up to 170 MPa, with Wieland-SC5 even more than 170 MPa.

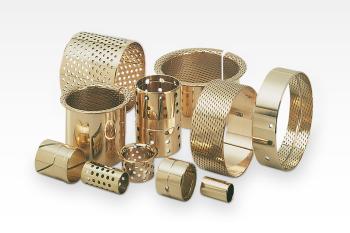

Rolled bushings

Plain slide bearings are used in slide bearing applications where adequate lubrication is guaranteed.

Possible designs:

  • Slide bearings with plain surfaces and flange
  • Additionally with grooves and holes for lubricant supply

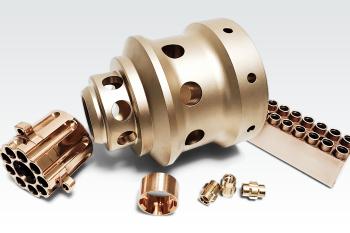

Special parts

In the field of special parts, we specialize in the manufacture of assemblies made of different material combinations as well as in the manufacture of other milled and turned parts, screws, nuts, thread inserts, etc. These products are made of different materials such as copper and aluminum alloys as well as partly steel and cast steel.



Types

  • Assemblies made of different material combinations
  • Milled and turned parts
  • Hot-stamped parts
  • Screws
  • Nuts
