Wieland Cimsa was founded in 1985 as a slitting centre specialising in semi-finished products made of copper and copper alloys such as brass and bronze. The company has been part of the Wieland Group since 1998. The product portfolio includes rods, sections, wires, strips, sheets, heat exchangers and tubes made of copper and copper alloys.
- Surfaces and Coatings
- Stockholding
- Transportation
- Metal processing (cutting)
- Recycling
Organization
Business hours
Monday-Thursday
07:00 am – 04:00 pm
Friday
07:00 am – 02:30 pm
07:00 am – 04:00 pm
Friday
07:00 am – 02:30 pm
Goods acceptance times
Monday-Friday
06:00 am – 09:00 am
09:30 am – 01:00 pm
06:00 am – 09:00 am
09:30 am – 01:00 pm
Facts
1985
founded
50 %
female managers
17
employees
9001:2015
EN ISO
Metal Information
Current metal prices
Officials (Prompt)
29.11.2023
Cu (Settlement)
8,384.00 USD/to
Zn (Settlement)
2,508.00 USD/to
EUR (Bid)
1.09550 USD
Products
Our products at a glance
Product categories
Headline
Back to product overviewEnhanced surface tubes
Low-finned tubes
Medium-high finned tubes
High finned tubes
Coaxial heat exchanger WKE | WKC
Wieland WRK
Finned tube heat exchanger WRW
Ingots

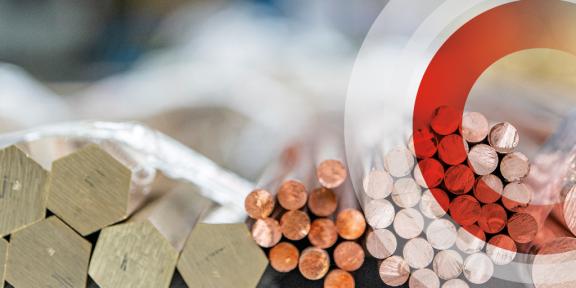

Rods
Sectional rod
Machining
WICONNEC®
ecoline®: Lead-free solutions
Precision continuous casting

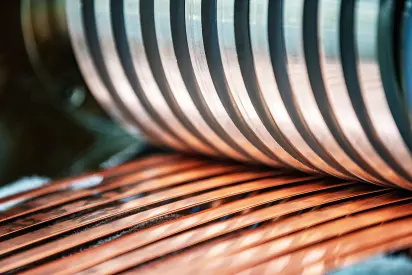

Strip
Multi-gauge strip
Sheets and Plates
Smooth industrial tubes
Innergrooved industrial tubes
Plumbing tubes
Refrigeration and medical gas tubes
Wire
Optimised heat transfer for your shell-and-tube heat exchanger
The enhanced surface tubes made by Wieland Thermal Solutions have been optimized for use as condenser or evaporator tubes in shell-and-tube heat exchangers used in the refrigeration and air-conditioning industry. These can be designed to be much more compact, saving you energy, installation space, and materials.
Your advantages at a glance
- Significantly higher heat transfer coefficients than smooth or low finned tubes
- More compact and lighter heat exchangers
- Significantly reduced filling quantities of e.g. refrigerants
- Highest efficiencies due to smallest temperature differences
- Precise thermal design with ThermalS
Optimized heat transfer for your shell-and-tube heat exchanger
The enhanced surface tubes made by Wieland Thermal Solutions have been optimized for use as condenser or evaporator tubes in shell-and-tube heat exchangers used in the refrigeration and air-conditioning industry. These can be designed to be much more compact, saving you energy, installation space and materials.
* Material not standardized in EN
Our Materials
We offer you a broad portfolio of materials and can expand our offerings at any time to meet your specific needs regarding thermal conductivity, mechanical properties, or corrosion resistance. Enhanced surface tubes made by Wieland Thermal Solutions are already available in copper, copper-nickel, brass, carbon steel, stainless steel, and titanium.
You can find more product information here
For extreme efficiency in a variety of applications
Low-finned tubes are a reliable solution for controlling the temperature of gases and liquids, or for evaporating and condensing refrigerants. Thanks to their larger heat transfer surface area, they offer considerable potential to save in terms of materials and fill volumes. The wide range of dimensions offered by Wieland Thermal Solutions makes these products perfect for a broad scope of applications in the refrigeration and air conditioning industry, for oil/gas coolers in machinery and plant engineering, and for intermediate vapor superheaters in process engineering.
Your advantages at a glance
- Proven solution in a wide range of applications
- Increased heat transfer surface compared to plain tubes
- Material savings due to reduced tube length
- Filling quantity reduction due to higher efficiency
* Material not standardized in EN
Our Materials
We offer you a broad portfolio of materials and can expand our offering at any time to meet your specific needs regarding thermal conductivity, mechanical properties, or corrosion resistance. Low-finned tubes made by Wieland Thermal Solutions are already available in copper, copper-nickel, brass, carbon steel, stainless steel, and titanium.
You can find more product information here
GEWA-K/KS
S/T Trufin & TurboChil in Steel
S/T Trufin & TurboChil in Titanium
For compact coils and bent shapes
Medium-high finned tubes feature a significantly larger heat transfer surface area compared to plain tubes. They are ideal for compact and high-performance coils and shell-and-tube heat exchangers. Wieland medium-high finned tubes are a proven and robust solution for water heaters, storage tanks, refrigerant condensers, oil coolers, gas coolers or safety heat exchangers and more.
Your advantages at a glance
- High surface enlargement compared to plain tubes
- Ideal for compact and robust heat exchangers
- Excellent bending properties and processability
- Availability of various dimensions, internal structures and materials
* Material not standardized in EN
Our Materials
We offer the widest range of material in the industry and can extend it on request in case of special requirements for heat conductivity, mechanical properties or corrosion resistance. Medium-high finned tubes from Wieland Thermal Solutions are available in copper, copper-nickel, aluminium and carbon steel as well as in stainless steel in limited range.
You can find more information here
For highest efficiency in controlling the temperature of gases and liquids
High-finned tubes have a much greater outer surface area than smooth tubes. This allows for particularly compact designs. Thanks to their high, thin fins, these tubes perform particularly well in the heating and cooling of liquids and gases, making them an excellent choice for applications in heating technology, as well as in machinery and plant engineering.
Your advantages at a glance
- Highest surface enlargement compared to plain tubes (up to factor 18)
- Enables particularly compact and robust designs
- Available in straight lengths or as coiled heat exchanger
- Also available as bimetallic version GEWA-HB
* Material not standardized in EN
Our Materials
We offer you a broad portfolio of materials and can expand our offering at any time to meet your specific needs regarding thermal conductivity, mechanical properties, or corrosion resistance. High-finned GEWA-H tubes made by Wieland Thermal Solutions are already available in copper, copper-nickel and aluminum.
In the GEWA-HB tube materials like carbon steel, stainless steel, titanium or almost any other material like brass and nickel can be used for the inner tube.
You can find more information here
In coaxial heat exchangers, fluids are ideally conducted in counter-flow directions. The Wieland WKE and WKC series have been optimized for the condensation or evaporation of refrigerants and are used in reciprocating chillers and heat pumps.
Your advantages at a glance
- High specific power due to optimized inner tubes
- Flow guidance in counterflow
- Insensitive to frost
- Low fouling tendency
- Long service life
- Reversible operation possible
- Standard designs from stock
You can find more information here
Data sheet WKC | WKE
Our wholesaler for standard heat exchanger
Calculate your coaxial heat exchanger directly online:
ThermalS
* Material not standardized in EN
WRK finned tube heat exchangers are suitable for efficient direct condensation and evaporation in heat pump buffer tanks. The inner grooved surface of the used finned tubes optimize the heat transfer. Thus highest COP-values are possible even with smallest temperature differences.
Your advantages at a glance
- Efficient: Highest COP values due to direct integration of the heat exchanger in the storage tank
- Filling volume optimized: Smallest refrigerant volumes due to compact design
- Easy handling: Easy replacement and maintenance
You can find more information here
* Material not standardized in EN
Storage heating, circulation heating of domestic water, protecting solid fuel boilers from overheating, or controlling the temperature of oils and emulsions: With our WRW series of heat exchangers, you are putting your trust in highly developed, compact solutions that are ready to install.
Your advantages at a glance
- Compact design due to high thermal conductivity of copper combined with increased heat transfer area
- Proven corrosion resistance
- Retrofittable due to compact spiral design
- Standard designs from stock
You can find more information here
* Material not standardized in EN
Ecocast Properties
Wieland | EN Designation | EN-No. | ASTM-UNS-No. |
|---|---|---|---|
CuZn21Si3P-C | CC768S | C87850 | |
| CuZn21Si3P-B | CB768S |
|
High mechanical strength
Its grain refiner ensures an extremely fine grain size, facilitating even distribution of force throughout the entire structure. The result: strength and hardness otherwise only known in steel, even with thin, weight-reducing wall thicknesses.
Improved casting
Thanks to its fine-grained structure, Ecocast is ideal for filigree components.
Reduced waste
In every situation where you were previously dependent on red brass for filigree shapes, the high amount of waste of this conventional material is eliminated with Ecocast.
Excellent machinability
Ecocast and its special chemical composition also makes reworking cast parts through machining, grinding, polishing, or coating safe, precise, and cost-effective.
Top-rate corrosion resistance
The fine-grained structure through and through also means minimal dezincification on the surface due to touching, oxidation, or cleaning.
The future is lead-free
Secure your market lead: with Ecocast you can design and equip your products for the future, too. After all, many countries and various customers are already implementing strict regulations concerning the use of lead-free materials.
Universal
Ecocast can be cast both in ingot molds and in sand. The material is standardized under CC768S in EN 1982.
Ecocast: The New Material for Sanitary Installations
Ecocast is the perfect material for sanitary installations, not just for meeting drinking water regulations in the future, but also mainly for meeting current cost-efficiency requirements. Thanks to its high mechanical strength, Ecocast achieves wall thicknesses that help significantly reduce weight and save on materials and costs without compromising on stability. Moreover, Ecocast can handle forces (or moments) that until now have only been reserved for steel. The fine-grained structure and lack of lead produce surfaces that are aesthetically impeccable when Ecocast parts are coated.
Functional Properties, Long-Lasting Look
The extremely corrosion-resistant brass material Ecocast has a premium golden surface that is especially long -lasting, making it suitable even for frequently used objects and room fixtures made from cast parts. Ecocast also has high color stability and resistance to degradation caused by contact, air humidity, or intensive cleaning, which increases hygiene safety in hospitals, clinics, and nursing care institutions. - The innovative cast material from Wieland retains its functional properties even with heavy day-to-day use.
* Material not standardized in EN
Materials
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K08 | Cu-OFE | CW009A | C10100 |
| K12 | Cu-HCP | CW021A | C10300 |
| K18/K32 | Cu-ETP | CW004A | C11000 |
| K20/K21/K28 | Cu-DHP | CW024A | C12200 |
| K30 | Cu-OF | CW008A | C10200 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K41 | CuNi1Pb1P* | - | C19150 / C19160 |
| K52 | CuNi2Si | CW111C | C70260 |
| K53 | CuNi2SiS* | - | - |
| K54 | CuNi2SiCr* | - | C81540 |
| K60 | CuCr1Zr | CW106C | C18150 |
| K61 | CuCr1Zr | CW106C | C18200 |
| K65 | CuFe2P | CW107C | C19400 |
| K81 | CuSn0,15 | CW117C | C14415 |
| KC1 | CuPb1P | CW113C | C18700 |
| eco KS2® | CuSP | CW114C | C14700 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| Z11 | CuZn35Pb1 | CW600N | C34000 | |
| Z12 | CuZn35Pb2 | CW601N | C34200 / C34500 | |
| Z14 | CuZn37Pb2 | CW606N | C35300 | |
| Z21 | CuZn38Pb2 | CW608N | C3713 | |
| Z23 | CuZn36Pb3 | CW603N | C36000 | |
| Z29 | CuZn39Pb2 | CW612N | C37700 | |
| Z31/Z41/Z48 | CuZn40Pb2 | CW617N | C38000 | |
| Z32/Z33 | CuZn39Pb3 | CW614N | C38500 | |
| Z40 | CuZn43Pb2Al | CW624N | - | |
| Z43 | CuZn33Pb1AlSiAs | CW725R | - | |
| Z45/Z46 | CuZn36Pb2As | CW602N | C35330 | |
| Z46 | CuZn36Pb2As | CW602N | C35330 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| L10/L13/L15 | CuNi10Fe1Mn | CW352H | C70600 |
| L30 | CuNi30Mn1Fe | CW354H | C71500 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M10 | CuZn10 | CW501L | C22000 | C2200 |
| M15/M16/M17 | CuZn15 | CW502L | C23000 | |
| M20 | CuZn20 | CW503L | C24000 | C2400 |
| M30/M34 | CuZn30 | CW505L | C26000 | C2600 |
| M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
| M37/M38 | CuZn37 | CW508L | C27200 | C2720 |
| eco M41® | CuZn38As | CW511L | C27453 | |
| eco M57® | CuZn42 | CW510L | - | |
| eco M58® | CuZn42 | CW510L | - | |
| eco M59® | CuZn42 | CW510L | - | |
| eco M60® | CuZn40 | CW509L | C27450 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| S40 | CuZn37Mn3Al2PbSi | CW713R | C67420 |
| eco S34® | CuZn34Mn2SiAlNi* | - | C67340 |
| eco SW1® | CuZn21Si3P | CW724R | C69300 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| B06 | CuSn6 | CW452K | C51900 |
| B09/B10 | CuSn8 | CW453K | C52100 |
| B12/B21 | CuSn8P/CuSn8 | CW459K/CW453K | C52100 |
| B44/B45 | CuSn4Pb4Zn4 | CW456K | C54400 |
| B44/B45 | CuSn4Pb4Zn4 | CW456K | C54400 |
| BV9 | CuSn6 | CW452K | C51900 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| U35 | CuAl10Ni5Fe4 | CW307G | C63020 |
| U36 | CuAl11Fe6Ni6 | CW308G | - |
* Material not standardized in EN
Wieland manufactures solid and hollow copper sections in a wide range of sizes. Featuring contours close to the final geometry, these sections help you obtain your finished parts in just a few operations. Together with you, we develop complex sections of copper from the draft to the initial prototypes to series production.
* Material not standardized in EN
Our W5000 round rods are our premium product for your high performance machining operations. We guarantee the minimum diameter variance in the one batch and a straightness of 0.55 mm/m up to a diameter of 80 millimetres. And best of all: tight alloying tolerances for consistent machining results. Fine, uniform lead distribution for top machinability. Low contamination levels and optimised phase distribution for long tool lives.
Learn more
W5000 precision brass rods
The closer the input stock approaches the end product, the higher the efficiency of downstream machining. The Wieland E5006 precision hexagon rod fulfils these expectations in a quite special way: It presents the precise outer contours of a workpiece. Unlike machined multiedge cross sections, drawn edged rods are characterised by extremely smooth, plane, and compacted surfaces. Moreover, they lend the workpiece a continuous grain structure of high impact toughness. Obvious material savings are yet another benefit.
Learn more
W5006 precision brass rods
* Material not standardized in EN
The Wieland WICONNEC brand offers a range of copper materials in the form of rods and wires that are ideal for machined sockets and pins for plug connectors. This material portfolio also offers brass materials in addition to specially developed copper alloys for complex turned plug connectors.
Materials
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K41 | CuNi1Pb1P* | - | C19150 / C19160 |
| K44 | CuNi1Pb0.6P* | - | C19140 / C19150 |
| KC1 | CuPb1P | CW113C | C18700 |
| eco KS2 | CuSP* | CW114C | C14700 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K55 | CuNi3Si1Mg* | - | C70250 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| Z10 | CuZn37Pb0,5 | CW604N | C33500 | |
| Z11 | CuZn35Pb1 | CW600N | C34000 | |
| Z12 | CuZn35Pb2 | CW601N | C34200 / C34500 | |
| Z14 | CuZn37Pb2 | CW606N | C35300 | |
| Z21 | CuZn38Pb2 | CW608N | C3713 | |
| Z23 | CuZn36Pb3 | CW603N | C36000 | |
| Z33 | CuZn39Pb3 | CW614N | C38500 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| eco M59 | - | CW510L | - |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| eco S34 | - | - | C67340 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| B44 | CuSn4Pb4Zn4 | CW456K | C54400 |
* Material not standardized in EN
Wieland ecoline is our answer to enable your future business: the lead-free product line fulfills your individual needs for an efficient production and future oriented product development. And is, of course, compliant with the latest requirements of legislative directives on lead-free materials.
Drinking water is our most important food. The quality of drinking water must be of such a high standard that it can be enjoyed without restriction throughout life. For this reason, ever stricter requirements are being imposed worldwide on materials that come into contact with drinking water. The appropriate selection of materials and products for drinking water installations is therefore extremely important. Technical, economic, but especially hygienic and health aspects play a major role.
Copper alloys have proven themselves technically and hygienically billions of times worldwide in drinking water installations and will therefore continue to be the basis for clean drinking water in the future.
Here you will find detailed information on ecoline water – please contact us if you have any questions.
All current Guidelines for lead-free materials are summarised in the Regulations.
Lead-free alloys for all parts in contact with drinking water
Wrought alloys - special brass
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | ||||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | Corrosion resistance | ||
| ecobrass SW4 | CuZn21Si3P | CW724R | C69305 | 80% | good | excellent | In accordance with ISO 6509 | DWD, SDWA |
* Conformity as of 03/06/2020
DWD: Drinking Water Directive (Europe)
SDWA: Safe Drinking Water Act (USA)
Wrought alloys - brass
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | ||||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | Corrosion resistance | ||
| eco M41® | CuZn38As | CW511L | C27450 | 50% | good | fair | according ISO 6509 | DWD, SDWA |
| eco M57® | CuZn42 | CW510L | - | 70% | less suitable | excellent | - | DWD,SDWA |
* Conformity as of 03/06/2020
DWD: Drinking Water Directive (Europe)
SDWA: Safe Drinking Water Act (USA)
Cast alloys
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | ||
| Designation | No. | UNS-No. | Machinability | Corrosion resistance | ||
| eco GS1® | CuSn4Zn2PS-C-GC** | - | - | 70% | In accordance with ISO 6509 | DWD, SDWA |
| eco SW3® | CuZn21Si3P | CC76S | C87850 | 80% | In accordance with ISO 6509 | DWD, SDWA |
* Conformity as of 03/06/2020
** Material not standardized in EN
DWD: Drinking Water Directive (Europe)
SDWA: Safe Drinking Water Act (USA)
Apart from intent or gross negligence, we accept no liability for their correctness in terms of content. The product characteristics are not guaranteed and are no substitute for advice from our experts.
For sockets and pins for connectors and other electrical components, we provide rods, wires and profiles, made of the copper alloys with the most suitable characteristics. In addition to low-cost brass materials, the materials portfolio includes specially developed copper materials for demanding applications of turned connectors.
Depending on the technical requirements, materials with high electrical conductivity or high mechanical strengths as well as a combination of both of these properties will be applied.
Here you will find detailed information on ecoline connect - please contact us if you have any questions.
All current guidelines for lead-free materials are summarised in the Regulations.
Lead-free alloys for signal and current-carrying components
Wrought alloys – brass
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | ||||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | Conductivity IACS | ||
| eco M59® | CuZn42 | CW510L | - | 60% | less suitable | excellent | 24% | RoHS |
| eco M60® | CuZn40 | CW509L | C27450 | 50% | fair | good | 23% | RoHS |
* Conformity as of 03/06/2020
Wrought alloys – special brass
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | ||||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | Conductivity IACS | ||
| eco SW1® | CuZn21Si3P | CW724R | C69300 | 80% | good | excellent | 8% | RoHS |
| eco S34® | CuZn34Mn2SiAlNi** | - | C67340 | 70% | good | excellent | 19% | RoHS |
* Conformity as of 03/06/2020
** Material not standardized in EN
Wrought alloys – high-copper alloy
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | ||||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | Conductivity IACS | ||
| eco KS2® | CuSP | CW114C | C14700 | 80% | ecxellent | fair | 90% | RoHS |
* Conformity as of 03/06/2020
** Material not standardized in EN
Wrought alloys – nickel silver
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | ||||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | Conductivity IACS | ||
| eco N59® | CuNi9Zn41FeMn** | - | - | 50% | fair | good | 10% | RoHS |
* Conformity as of 03/06/2020
** Material not standardized in EN
Apart from intent or gross negligence, we accept no liability for their correctness in terms of content. The product characteristics are not guaranteed and are no substitute for advice from our experts.
Components for automotive applications are exposed to very high loads such as high temperatures or friction and require material characterstics with high robustness and stress resistance. We offer our pre-material for slide bearing applications, hot stamped parts and machined components in various lead-free alloys adapted to a wide variety of processing methods and applications.
We are happy to support you also in the design and production of your slide bearings with individual quantities. With our in-house capabilities, we are the leading manufacturer in various industrial sectors, such as agricultural and construction machinery, general mechanical engineering and other niche applications.
Here you will find detailed information on ecoline drive - please contact us if you have any questions.
All current guidelines for lead-free materials are summarised in the Regulations.
Lead-free alloys for automotive components
Wrought alloys - special brass
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | |||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | ||
| eco SD4® | CuZn37Mn3Al2Si** | - | - | 45% | less suitable | excellent | ELV |
| eco SW1® | CuZn21Si3P | CW724R | C69300 | 80% | good | excellent | ELV |
| eco SX1® | CuZn31Mn2SiAl** | - | - | 70% | good | excellent | ELV |
* Conformity as of 01/25/2023
** Material not standardized in EN
Wrought alloys - brass
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | |||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | ||
| eco M59® | CuZn42 | CW510L | - | 60% | less suitable | excellent | ELV |
| eco M60® | CuZn40 | CW509L | C27450 | 50% | fair | good | ELV |
* Conformity as of 01/25/2023
Apart from intent or gross negligence, we accept no liability for their correctness in terms of content. The product characteristics are not guaranteed and are no substitute for advice from our experts.
Be it the pen you are writing with, the key you are using, the spectacles you are wearing, the watch or the bracelet on your wrist or the brass instrument you play, there is a high chance you are in touch with Wieland material. That is why we care for materials of our rods and wires with the lowest possible lead content.
Here you will find detailed information on ecoline accessories – please contact us if you have any questions.
All current Guidelines for lead-free materials are summarised in the Regulations.
Lead-free alloys for accessories
Wrought alloys - nickel silver
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | |||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | ||
| eco N59® | CuNi9Zn41FeMn** | - | - | 50% | fair | good | REACH Annex 17 (Pb) |
* Conformity as of 03/06/2020
** Material not standardized in EN
Wrought alloys - brass
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | |||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | ||
| eco M58® | CuZn42 | CW510L | - | 50% | less suitable | excellent | REACH Annex 17, CPSIA |
* Conformity as of 03/06/2020
Wrought alloys - special brass
| Wieland | EN-designation | ASTM | Fabrication properties | Regulations* | |||
| Designation | No. | UNS-No. | Machinability | Cold working | Hot working | ||
| eco SW5® | CuZn21Si3P | CW724R | C69300 | 80% | good | excellent | REACH Annex 17 |
| eco S34® | CuZn34Mn2SiAlNi** | - | C67340 | 70% | good | excellent | REACH Annex 17 (Pb) |
* Conformity as of 03/06/2020
** Material not standardized in EN
Apart from intent or gross negligence, we accept no liability for their correctness in terms of content. The product characteristics are not guaranteed and are no substitute for advice from our experts.
* Material not standardized in EN
From Europe’s largest copper alloy foundry in Vöhringen/Iller (Germany), we can offer you far in excess of a hundred different copper materials. These include not only a wide range of continuous castings like tubes and rods, but also shaped rods and sections of complex geometries. At the same time, our flexibility ensures the prompt realisation of your special custom wishes.
Materials
* Material not standardized in EN
Learn more
Strips for connector
Hot dip tinned copper and copper-alloy strip
Strip for semiconductor packages
Materials
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| K09 | Cu-OFE | CW009A | C10100 | C1011 |
| K11 | Cu-OF | CW008A | C10200 | |
| K12 | Cu-HCP | CW021A | C10300 | |
| K14 | Cu-PHC | CW020A | C10300 | |
| K19 | Cu-DHP | CW024A | C12200 | C1220 |
| K32 | Cu-ETP | CW004A | C11000 | C1100 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K65 | CuFe2P | CW107C | C19400 |
| K80 | CuFe0,1P* | - | C19210 |
| K81 | CuSn0,15 | CW117C | C14415 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K55 | CuNi3Si1Mg* | - | C70250 |
| K57 | CuNi1Co1Si* | - | C70350 |
| K58 | CuNi3Si1Mg | - | C70250 |
| K73 | CuNi1ZnSi* | - | C19005 |
| K75 | CuCrSiTi* | - | C18070 |
| K76 | CuNiSiP* | - | C19010 |
| K82 | - | - | C15100 |
| K88 | CuCrAgFeTiSi* | - | C18080 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M42 | CuZn42 | CW510L | - | |
| Z21 | CuZn38Pb2 | CW608N | C3713 | |
| Z30 | CuZn39Pb2 | CW612N | C37700 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M05 | CuZn5 | CW500L | C21000 | C2100 |
| M10 | CuZn10 | CW501L | C22000 | C2200 |
| M15 | CuZn15 | CW502L | C23000 | C2300 |
| M20 | CuZn20 | CW503L | C24000 | C2400 |
| M30 | CuZn30 | CW505L | C26000 | C2600 |
| M33 | CuZn33 | CW506L | C26800 | C2680 |
| M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
| M37 | CuZn37 | CW508L | C27200 | C2720 |
| M38 | CuZn37 | CW508L | C27200 | C2720 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| S12 | CuSn3Zn9 | CW454K | C42500 | C4250 |
| S23 | CuZn23Al3Co | CW703R | C68800 |
* Material not standardized in EN
Special products for the manufacture of power transistors and complex plug connectors. Components no longer need to be assembled from two or more punched parts, but can consist of the one part punched from the multi-gauge strip – efficient and of homogeneous quality!
Learn more
Multi-gauge strip
* Material not standardized in EN
We can offer you a wide range of materials, geometries, and surface qualities to choose from. Many geometries are available from our sheets stores.
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K55 | CuNi3Si1Mg* | - | C70250 |
| K57 | CuNi1Co1Si* | - | C70350 |
| K58 | CuNi3Si1Mg | - | C70250 |
| K73 | CuNi1ZnSi* | - | C19005 |
| K75 | CuCrSiTi* | - | C18070 |
| K76 | CuNiSiP* | - | C19010 |
| K82 | - | - | C15100 |
| K88 | CuCrAgFeTiSi* | - | C18080 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| Z21 | CuZn38Pb2 | CW608N | C3713 | |
| Z30 | CuZn39Pb2 | CW612N | C37700 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M05 | CuZn5 | CW500L | C21000 | C2100 |
| M10 | CuZn10 | CW501L | C22000 | C2200 |
| M15 | CuZn15 | CW502L | C23000 | C2300 |
| M20 | CuZn20 | CW503L | C24000 | C2400 |
| M30 | CuZn30 | CW505L | C26000 | C2600 |
| M33 | CuZn33 | CW506L | C26800 | C2680 |
| M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
| M37 | CuZn37 | CW508L | C27200 | C2720 |
| M38 | CuZn37 | CW508L | C27200 | C2720 |
* Material not standardized in EN
Available materials
| Wieland | EN | EN-Nr. | UNS |
| K08 | Cu-OFE | CW009A | C10100 |
| K12 | Cu-HCP | CW021A | C10300 |
| K20 / K21 / K28 | Cu-DHP | CW024A | C12200 |
| K30 | Cu-OF | CW008A | C10200 |
| K65 | CuFe2P | CW107C | C19400 |
| L10 | CuNi10Fe1Mn | CW352H | C70600 |
| L30 | CuNi30Mn1Fe | CW354H | C71500 |
Delivery forms
- Level wound coils: 100 kg, 150 kg, 300 kg, 530 kg
- Straight lengths
- Rings
Materials
K65 - Sustainable and efficient
Sustainable and efficient – two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO2. Wieland supports this turnaround with a tube system that meets the high requirements of CO2 as a refrigerant.
Wieland K65 tubes have been designed for CO2 applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO2. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).
All Wieland K65 tubes are available in the soft condition (R300/O61) to ensure excellent bending / flaring and collaring properties.
Wieland K65 tubes are offered from stock in two pressure ranges, 80 bar and 120 bar, and in dimensions ranging from 3/8” up to 2-1/8”.
Moreover, K65 tubes are also available in individual dimensions and different delivery forms.
For industrial processing, in particular CO2 heat exchanger (evaporator / gas cooler) manufacturing, level wound coils (LWC) are offered.
More K65 products in other categories
Your benefits
- Pressure resistance tailormade to your needs
- Cost reduction through weight reduction
- Proven processing technology: brazing instead of welding!
- Excellent heat transfer
- Design according to EN 14276 - TUEV or UL certification on demand
Typical applications
- Components of R744 refrigeration systems
- Fin coil heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers )
- Shell and tube heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)
Technical properties
- Material: K65
- Conditions: soft R300/O61 and hard R420/H80
- Delivery form: Level wound coils or straight lengths
- Coil weights: 100 kg, 150 kg, 300 kg
- Available dimensions: 5 - 28 mm for LWC; 5 - 110 mm for straight lengths
- Usual standards: EN 12735-1 / EN 14276 / ASTM B 1017
Further information
cuproclima
For high-quality seamless inside smooth or innergrooved copper tubes in level-wound coils for the refrigeration and air-conditioning industries. The specified quality and inspection criteria exceed the existing requirements of standards (e. g. EN 12735-2, ASTM).
Your benefits
- longer run time for machines when uncoiling tubes
- reduced scrap for finished products
- reduced set-up time
- detection of even smaller surface defects on the tubes
- possible malfunctions of finished equipment during pressure testing are reduced
- fewer impurities in the refrigerant circuit.
Fields of application
- air-cooled heat exchangers for the air-conditioning and refrigeration industry
- evaporators
- condensers
- heat exchangers
- air coolers
Technical Properties
- Materials Cu-DHP
- Conditions soft and extra soft
- Delivery form level wound coils only
- Coil weights 100 kg, 150 kg, 300 kg
- Available dimensions 4 - 28 mm, wall thicknesses on request
Copper tubes with ultra clean inner surface for industrial applications
Our innovative production process for cuproclean tubes removes carbon film. This results in higher reliability, longer life and reduced maintenance costs.It is suitable for all fresh water applications. Copper offers outstanding versatility and is characterized by excellent formability as well as good processing properties. cuproclean copper tubes are also available in combination with other qualities such as cuproform.
Your benefits
- ultra-clean tube surface free from carbon film
- highest reliability and longer life also in fresh water applications
- best corrosion resistance
- carbon film test according to EN 1057 and confirmation in the certificate
Fields of application
- cooling ceilings
- solar water heating systems
- heat generators
Technical properties
- Materials Cu-DHP
- Conditions Soft
- Delivery form Level wound coils
- Coil weights 100 kg, 150 kg, 300 kg
- Available dimensions 6 - 28 mm, wall thicknesses on request
High formable copper tubes
In boiler manufacture, for example the tubes may be formed by: expanding, bending, upsetting and beading. Industrial copper tubes from conventional production do not always meet these high demands. Therefore, it is often necessary to use additional fittings made from other materials. This results in further production steps and consequently higher production costs.
Your benefits
- no special fittings necessary; this results in lower costs of production
- higher added value in your production
- exceptional forming properties – 80% expansion of the tube end tested and certified on the inspection certificate
- less scrap with very high deformation
Fields of application
- Connecting pieces, e.g. especially for boilers
Technical properties
- Materials Cu-DHP
- Conditions soft and extra soft
- Delivery form Layer-wound coils and straight lengths
- Coil weights 100 kg, 150 kg, 300 kg, 530 kg
- Available dimensions 6 - 28 mm for LWC; 6 - 64 mm for straight lengths
Copper tubes with high-purity outer surface for solar thermal applications
In the process of manufacturing solar heat absorbers requirements vary depending on the application. In the solarclean family you will find the most suitable copper tube quality for your optimized fabrication.
solarclean classic
The particularly clean tube surface ensures a high quality weld. You can therefore save at least one cleaning operation or an extensive pre-treatment of the components to be welded.
solarclean HP
For heat pipes in vacuum tube collectors - highest surface cleanliness on tube outside and inside prevents contamination of the heat transfer medium in the heat pipe and yet ensures the efficiency of the system.
solarclean plus
Improved forming properties for the fabrication of meander-shaped absorber tubes facilitate the setting of the bending machines and increase process reliability. solarclean_plus ensures super clean tube surfaces substantially improving the ultrasonic welding process.
solarclean eco
The cost-effective alternative for laser welding of absorber plate and tubing with sufficient cleanliness.
solarclean SL
Like solarclean classic, solarclean SL ensures superclean tube surfaces. Depending on your fabrication needs, you can also order solarclean in straight lengths.
Technical properties
- Materials Cu-DHP
- Conditions hard, hard relaxed, half-hard
- Delivery form Layer-wound coils and straight lengths
- Coil weights 100 kg, 150 kg, 300 kg, 530 kg
- Available dimensions 6 - 15 mm; wall thicknesses 0.3-1.2 mm
* Material not standardized in EN
Available materials
| Wieland | EN | EN-Nr. | UNS |
| K20 / K21 / K28 | Cu-DHP | CW024A | C12200 |
| L10 | CuNi10Fe1Mn | CW352H | C70600 |
| K65 | CuFe2P | CW107C | C19400 |
Materials
K65 - Sustainable and efficient
two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO2. Wieland supports this turnaround with a tube system that meets the high requirements of CO2 as a refrigerant.
Wieland K65 tubes have been designed for CO2 applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO2. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).
Innergrooved K65 tubes for manufacturing of CO2 heat exchangers (evaporator / gas cooler) are available in individual dimensions. These are delivered in level wound coils (LWC) or straight lengths alternatively.
Wieland K65 tubes are also available from stock in standard dimensions.
More K65 products in other categories
Your benefits
- Pressure resistance tailormade to your needs
- Cost reduction through weight reduction
- Proven processing technology: brazing instead of welding!
- Excellent heat transfer
- Design according to EN 14276 - TUEV certification on demand
Typical applications
- Fin coil heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)
- Shell and tube heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)
Technical properties
- Materials: K65
- Conditions: soft R300/O61 and hard R420/H80
- Delivery form: Level wound coils or straight lengths
- Coil weights: 100 kg, 150 kg, 300 kg
- Available dimensions: 5 - 16 mm
- Usual standards: EN 12735-1 / EN 14276 / ASTM B 1017
Further information
cuprofin-Standard
Wieland cuprofin-Standard tubes are effiecient heat exchanger tube that are suitable for one and two-phased flow as well as for evaporation and condensation. This enables the flexible production of efficient and compact heat exchangers. There is no need to keep a stock of different specialized tube types.
Your benefits
- improved heat transfer due to fin structure on the inside of the tube
- compact heat exchanger construction
- reduced material input
- Internal structure suitable for evaporation, condensation and single-phase heat transfer
cuprofin-standard is also available in superclean quality and as a microgroove tube.
Fields of application
- Finned heat exchangers for the refrigeration/air conditioning industry
- Evaporator
- Condensers
- Recooler
- Air Cooler
- Tube bundle injection evaporator
- Heat exchangers in the form of coiled elements (e.g. container heating and cooling)
Technical properties
- Delivery form Layer-wound coils and straight lengths up to 7,9m
- Coil weights 100 kg, 150 kg, 300 kg
- Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7
Further Information
cuprofin-C tubes for condensors
Wieland cuprofin-C Tubes are highly efficient heat transfer tubes for the tube-side condensation of refrigerants. Depending on the fluid used, the fins on the inside of the tube are optimized for high performance with low material usage. They enable the design of highly efficient and compact heat exchangers.
Your benefits
- optimized heat transfer due to adapted fin structure on the inside of the tube
- compact heat exchanger construction
- reduced refrigerant charge
- reduced material input
cuprofin-C is also available in superclean quality and as microgroove tube.
Fields of application
- Finned heat exchangers, especially condensers
- Heat exchangers in the form of coiled elements (e.g. container heating)
Technical properties
- Delivery form Layer-wound coils and straight lengths up to 7,9m
- Coil weights 100 kg, 150 kg, 300 kg
- Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7
Further Information
cuprofin-E tubes for evaporators
Wieland cuprofin-E tubes are highly efficient heat transfer tubes for the tube-side evaporation of refrigerants in finned heat exchangers. The fins on the inside of the tubes are designed for optimum performance during flow boiling and the lowest possible pressure drop for a wide range of refrigerants.
Your benefits
- optimized heat transfer due to adapted fin structure on the inside of the tube
- compact heat exchanger construction
- extremely low pressure drop
- reduced material input
cuprofin-E is also available in superclean quality and on requiry as a microgrooved tube.
Fields of application
- Finned heat exchangers, especially evaporators
Technical properties
- Delivery form Layer-wound coils and straight lengths up to 7,9m
- Coil weights 100 kg, 150 kg, 300 kg
- Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7
Further Information
cuprofin-EDX tubes for injection
cuprofin-EDX are highly efficient and stable heat exchanger rubes for Injection evaporator in tube bundle design.
Your benefits
- optimized heat transfer and very low pressure drop
- compact heat exchanger construction
- reduced material input
cuprofin-EDX is also available in superclean quality and on request as a microgroove tube.
Fields of applications
- Tube bundle injection evaporator
Technical properties
- Delivery form Layer-wound coils and straight lengths up to 7,9m
- Coil weights 100 kg, 150 kg, 300 kg, 530 kg
- Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7
Further Information
cuprofin-G tubes for single-phase heat transfer
Wieland cuprofin-G Tubes are highly efficient heat transfer tubes, especially designed for recooling systems and air coolers. The fins on the inside of the tubes are optimized for single-phase heat transfer of aqueous media such as water-glycol mixtures. This enables the production of efficient and compact heat exchangers.
Your benefits
- optimized heat transfer through adapted fin structure on the inside of the tube
- compact heat exchanger construction
- low pressure drop
- reduced material input
cuprofin-G is also available in superclean quality.
Fields of application
- Finned heat exchanger with single-phase heat transfer
- Recooler
- Air cooler
Technical properties
- Delivery form Layer-wound coils and straight lengths up to 7,9m
- Coil weights 100 kg, 150 kg, 300 kg
- Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7
Further Information
cuprofin-L10 tubes for seawater applications
Wieland cuprofin-L10 tubes are efficient heat transfer tubes which are particularly suitable for applications with seawater and other salt water as well as in their surroundings (e.g. coastal areas). The material CuNi10Fe1Mn (Wieland L10) is highly resistant to corrosion and erosion in these fluids. Compared to stainless steels the thermal conductivity of L10 is higher by a factor of approx. 3.
Your benefits
- improved heat transfer due to fin structure on the inside of the tube
- compact heat exchanger construction
- reduced material input
- highly resistant to corrosion and erosion
cuprofin-L10 is also available in superclean quality.
Fields of application
- Finned and bundle tube heat exchangers that are operated with seawater or other saltwater, or installed in coastal areas
Technical properties
- Delivery form Layer-wound coils and straight lengths up to 7,9m
- Coil weights 100 kg, 150 kg, 300 kg
- Usual standards
- EN 12735-2
- ASTM B359.
- VdTÜV 420/6, 420/7
Further Information
microgroove - Small diameter, high performance
With microgroove technology you build your heat exchanger with maximum efficiency and maximum compactness.
Your benefits
- reduced refrigerant charge
- Increased efficiency of the heat exchanger
- compact heat exchanger construction
- reduced material input
- reduced investment costs
microgroove is also available in superclean quality.
Fields of application
- Highly efficient finned heat exchangers
- Evaporator
- Condensers
Technical properties
- Delivery form Layer-wound coils and straight lengths up to 7,9m
- Coil weights 100 kg, 150 kg, 300 kg
- Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7
Further Information
* Material not standardized in EN
Available materials
| Wieland | EN | EN-Nr. | UNS |
| K20 / K21 / K28 | Cu-DHP | CW024A | C12200 |
Materials
For a more sustainable future in construction.
With its 100 % share of recycled material, the cuprolife copper tube makes a sustainable difference, and thus makes a significant contribution to the advancement of building and construction as well as building services.
Every cuprolife tube from Wieland is manufactured in keeping with the mass balance approach – using a process with 100 % recycled copper. As the starting point when verifying cuprolife, TÜV SÜD tested the procedure for calculating the 100 % recycled content*.
The new standard in copper tubes: cuprolife®.
Thanks to cutting-edge manufacturing techniques, cuprolife tubes exceed even the highest requirements. Optimal efficiency and reliability are guaranteed along with an exceptional service life. cuprolife tubes are universally usable. cuprolife is permanently in stock and can be supplied in any size from 6 x 1 mm to 159 x 3 mm.
Fields of application
- Domestic hot and cold water supply
- Heating
- Gas
- Liquid gas
- Heating oil / biofuel oil B10
- Solar systems
- Rainwater
- Industrial compressed air
- Sprinkler systems
- Firefighting systems
Technical features
- 100 % recycled copper*
- Design according to EN 1057, quality assured
- Made of pure copper Cu-DHP
- With quality mark and DVGW certification: DV-7204AU2106 (6 to 159 mm outside diameter)
- Universal use in a range of finely differentiated dimensions
- Optimum availability and compatibility with a wide range of fittings
- Maximum operating temperature at 10 bar operating pressure: 250 °C (applies to dimensions up to DN 150)
- Fire resistance: EN 13501-1 – A1 (nonflammable)
- Dimensions according to DVGW GW 392 (6 to 159 mm) with closed tube ends
- For optimal drinking water hygiene
*Mass balance approach, based on ISO 14021, verified by TÜV SÜD.
Reliable for all areas of home installation
For many years, installers have been relying on SANCO branded copper tubes. The tubes are very reliable, suitable for all areas of domestic installation and have more than proven their worth in practice. Whether drinking water supply (hot and cold), heating systems, oil, gas and liquid gas supplies as well as thermal solar systems: Wieland SANCO tubes are always the right choice and, of course, covered by the relevant regulations.
Technical features
- Patented manufacturing process: SANCO tubes are significantly better than required by standards and regulations.
- Design according to EN 1057, quality assured
- Made of pure copper Cu-DHP
- With quality mark and DVGW certification:
DV-7204AU2106 (12 to 159 mm outside diameter). - Universal use in a range of finely differentiated dimensions
- Optimum availability and compatibility with a wide range of fittings
- Maximum operating temperature: 250 °C
- Fire resistance: EN 13501-1-A1 (non-flammable)
- Dimensions according to DVGW GW 392 (12 to 159 mm) with closed tube ends
- For optimal drinking water hygiene
- Wide range of certifications available, such as Kitemark, Afnor, KIWA, DVGW and many others
Fields of application
- Domestic hot and cold water supply
- Heating systems
- Gas and oil services for heating and cooking
- Solar systems
- Rainwater
- Industrial compressed air
- Sprinkler and Fire-fighting-systems
- Further applications in consultation with our technical advisory service
* Material not standardized in EN
Available materials
| Wieland | EN | EN-Nr. | UNS |
| K20 / K21 / K28 | Cu-DHP | CW024A | C12200 |
| K65 | CuFE2P | CW107C | C19400 |
Materials
cuprofrio – refrigeration
Wieland branded copper tubes cuprofrio and cuprofrio.plus have a high level of internal cleanliness due to the individually closed tube ends and are suitable for refrigerants according to EN 12735-1.
cuprofrio tubes can be easily processed on site and conform to high quality standards with their extremely clean and dry inner surface. Close tube ends ensure the required quality even during storage and transportation.
learn more
Your benefits
- clean and dry inside surface
- closed tube ends in order to maintain cleanliness
- supplier traceability through signature
- standard dimensions available from stock
- good processing, easy joining, very easy to unwind and bend
- tube quality according to EN 12735-1
- compliance with Pressure Equipment Directive 2014/68/EU
Fields of application
cuprofrio is suitable for technical gases and liquids, for example in
- chillers
- air-conditioning and refrigeration units
- heat exchangers
Forms of delivery
- Coils (pancakes)
- Straight lengths of 5 m
cuprofrio.plus
Wieland branded copper tubes cuprofrio and cuprofrio.plus have a high level of internal cleanliness due to the individually closed tube ends and are suitable for refrigerants according to EN 12735-1.
cuprofrio tubes can be easily processed on site and conform to high quality standards with their extremely clean and dry inner surface. Close tube ends ensure the required quality even during storage and transportation.
learn more
cuprofrio.plus
cuprofrio.plus-tubes are insulated on the outside, which prevents nearly all water condensation on the outer surface of the tube.
Your benefits
- clean and dry inside surface
- standard dimensions available from stock
- good processing, easy joining, very easy to unwind and bend
- resistant, colour-fast insulation ensures consistent material properties in all weather conditions
- prevention of condensation water through insulating layer
- supplier traceability through signature
- compliance with Pressure Equipment Directive 97/23/EC
Fields of application
cuprofrio is suitable for technical gases and liquids, for example in
- chillers
- air-conditioning and refrigeration units
- heat exchangers
cupromed – medical gas supply
The seamless drawn cupromed copper tube is used for refrigeration/air conditioning as well as for medical gas supply units according to EN ISO 7396-1. cupromed tubes in straight lengths meet the requirements according to EN 13348 and those according to EN 12735-1.
Your benefits
- clean and dry inside surface
- closed tubes ends keep the surface clean
- supplier traceability through signature
- standard dimensions available from stock
- good processing, easy joining, very easy to unwind and bend
- standard tube quality according to EN 12735-1
- compliance with Pressure Equipment Directive 2014/68/EU
- Requirements according to the PED/Pressure Equipment Directive 2014/68/EU
Fields of applications
cupromed is suitable for the transportation of technical gases and liquids as well as medical gas and vacuum in
- medical gas supply units
- refrigeration and air conditioning units
cuprogeo – geothermal energy
The seamless drawn cuprogeo tube is used for geothermal energy production. cuprogeo is designed for the use of refrigerants and gases for direct evaporation in heat pumps. The advantage of this application is that high performance can be achieved with suitable heat pumps.
Your benefits
- clean and dry inner surface
- supplier traceability through signature
- tube protected by an outside surface coating
- standard tube quality according to EN 12735-1
- requirements comply with the Pressure Equipment Directive 2014/68/EU
Fields of application
- geothermal energy
- refrigeration equipment and heat exchangers
- geothermal heat pumps with direct evaporation
K65 - Sustainable and efficient
two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO2. Wieland supports this turnaround with a tube system that meets the high requirements of CO2 as a refrigerant.
Wieland K65 tubes have been designed for CO2 applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO2. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).
Wieland K65 tubes are offered from stock in two pressure ranges, 80 bar and 120 bar, and in dimensions ranging from 3/8” up to 2-1/8”.
All Wieland K65 tubes are available in the soft condition (R300/O61) to ensure excellent bending / flaring and collaring properties.
Other dimensions and delivery forms such as level wound coils are offered for industrial processing, in particular manufacturing of CO2 heat exchangers (evaporator/gas cooler).
More K65 products in other categories
Your benefits
- Cost reduction through weight reduction
- Proven processing technology: brazing instead of welding!
- Economical and safe installation of regrigeration systems with up to 120 bar operation pressure
- Excellent heat transfer
- Design according to EN 14276
Typical applications
- Pipelines for refrigeration systems, in particular for CO2 refrigerant, with an operation pressure of up to 120 bar
Technical properties
- Material: K65
- Operation pressure: 80 bar and 120 bar
- Condition: soft R300/O61
- Delivery form: straight lengths of 5 m
- Available dimensions: 9,52 - 53,97 mm (3/8" - 2-1/8")
- Tube ends: closed
- Usual standards: EN 14276 / EN 12735-1
Further information
* Material not standardized in EN
Wieland can offer you wire and sectional made of a wide range of materials: wrought copper alloys and alloys extending from brass, both with and without lead, to bronze, to German silver. And in combination with material properties, sizes, and geometries, our delivery portfolio can meet virtually every requirement. Simply contact us!
* Material not standardized in EN
Capabilities
Strip-cutting services
We can help you to cut aluminum, steel, and other alloys
Recycling
Wieland Cimsa, S.A. is committed to the environment. Since May 2011, we have adhered to the waste management code (E-1235.11) of the Waste Agency of Catalonia to ensure the proper treatment of waste and the optimal use of nonferrous metal waste from our customers and suppliers, as well as the waste generated during our daily process with the aim of minimizing the environmental impact
We believe in managing the reuse of raw materials properly. For this reason, Wieland Cimsa promotes environmentally friendly production by recycling waste materials generated during its production processes. Wieland Cimsa provides and manages 1 m³ containers and offers attractive processing conditions.
Contact Mercè Burset
e-mail
Certification in accordance with ISO 9001:2015
Wieland Cimsa, S.A. was certified in accordance with ISO 9002 in 1997. In 2003, we were certified in accordance with ISO 9001:2000, and we have been certified in accordance with ISO 9001:2015 since 2015.
We are focused on excellence through quality, creating value for our customers and employees through innovation, technology, and operational skill.
We are committed to offering products and services that comply with legal and regulatory requirements and that meet the needs of our customers.
Stockholding
Our extensive stockholding of drawn and rolled products, in both Copper and Copper alloys, combined with modern warehouse technology, enables us to provide Just in Time deliveries throughout Spain and Portugal.
Surfaces and Coatings
Our copper and copper alloys can be supplied in a wide range of surface coating.
Transport
Operating with our own vehicles for Catalunya ensures high quality service and flexible deliveries to the customers.
Resources
Information material and important documents for download
12
result/s
Certificates
ISO-9001-2015_ES_Wieland-Cimsa.pdf
1.45 MiB
Certificates
ISI-9001-2015_CAT_Wieland-Cimsa.pdf
1.49 MiB
Quality
Política-de-Calidad.pdf
639.82 KiB
Terms and conditions
Allgemeine-Einkaufsbedingungen.pdf
421.47 KiB
Terms and conditions
General-Terms-and-Conditions-of-Purchase.pdf
48.67 KiB
Terms and conditions
General-terms-and-conditions-of-delivery.pdf
60.57 KiB
Terms and conditions
Terminos_y_Condiciones_Generales_de_Entrega_ES.pdf
72.77 KiB
Quality
REACH-Information.pdf
134.94 KiB
Quality
Recepción-de-recortes-Nº4.pdf
6.92 MiB
Quality
SVHC-EU-Chemicals-Policy.pdf
48.04 KiB
Politica_de_calidad_ES.pdf
639.82 KiB
Información_REACH_ES.pdf
76.41 KiB
Contact person
Get in touch - Your contact person at Wieland Cimsa S.A.
Rafael Rubio
Managing Director
Wieland Cimsa
+34 93 544 66 51
Send email
Joan Gómez
Rolled products Manager
Wieland Cimsa
+ 34 93 544 65 70
Send email
Cristina Montolio
Sales Rolled Products
Wieland Cimsa
+34 93 544 65 79
Send email
Yolanda Tomás
Sales Copper Tubes
Wieland Cimsa
+34 93 544 66 54
Send email
Nuria Montolio
Sales Extruded & Drawn Products
Wieland Cimsa
+34 93 544 65 77
Send email
Cornelius Markus Becht
Sales
Wieland Cimsa
+34 935 4466 52
Send email
Lourdes Gimeno
Financial Manager
Wieland Cimsa
+ 34 93 544 65 71
Send email
Bernardino Diez
Production Manager
Wieland Cimsa
+34 93 544 65 70
Send email
Mercè Burset
Purchase Manager
Wieland Cimsa
+ 34 93 544 65 72
Send email
Josep Muchart
Quality Manager
Wieland Cimsa
+34 93 544 65 73
Send email
Wieland Cimsa S.A.
c/ Berguedà, esq. Maresme
Polígono Can Bernades-Subirá
08130 Santa Perpètua de Mogoda
Barcelona
Espana
+34 93 544 6570
+34 93 574 3836
cimsa@wieland.com
Managing Director:
Rafael Rubio
Limited Company Headquarters: Sta. Perpètua de Mogoda, Spain
Registration: Barcelona, Spain
Registered no : 4120867
C.I.F. / VAT registration no.: A58033341
Career
Start your career at Wieland Cimsa S.A.
Unleash potential.
Welcome to Wieland. I am your virtual assistant.
Do you need help finding information?
Already know your search term? Then go ahead and use our full text search. You will get a list of all relevant results.
