Wieland Delari

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
K08	Cu-OFE	CW009A	C10100
K12	Cu-HCP	CW021A	C10300
K20/K21/K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200
K32	Cu-ETP	CW004A	C11000	C1100

Wieland	EN Designation	EN No.	ASTM UNS-No.
K41	CuNi1Pb1P*	-	C19150 / C19160
K52	CuNi2Si	CW111C	C70260
K53	CuNi2SiS*	-	-
K54	CuNi2SiCr*	-	C81540
K60	CuCr1Zr	CW106C	C18150
K61	CuCr1Zr	CW106C	C18200
K65	CuFe2P	CW107C	C19400
K81	CuSn0,15	CW117C	C14415
KC1	CuPb1P	CW113C	C18700
KD3	-	CW118C	-
eco KS2^®	CuSP	CW114C	C14700
eco KS4^®	CuNi1SP*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z14	CuZn37Pb2	CW606N	C35300
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z29	CuZn39Pb2	CW612N	C37700
Z31/Z41/Z48	CuZn40Pb2	CW617N	C38000
Z32/Z33	CuZn39Pb3	CW614N	C38500
Z40	CuZn43Pb2Al	CW624N	-
Z43	CuZn33Pb1AlSiAs	CW725R	-
Z45	CuZn36Pb2As	CW602N	C35330
Z46	CuZn36Pb2As	CW602N	C35330

Wieland	EN Designation	EN No.	ASTM UNS-No.
L10/L13/L15	CuNi10Fe1Mn	CW352H	C70600
L30	CuNi30Mn1Fe	CW354H	C71500
eco LV3^®	CuNi9Sn6*	-	C72700

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M10	CuZn10	CW501L	C22000	C2200
M15/M16/M17	CuZn15	CW502L	C23000
M20	CuZn20	CW503L	C24000	C2400
M30/M34	CuZn30	CW505L	C26000	C2600
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37/M38	CuZn37	CW508L	C27200	C2720
eco M41^®	CuZn38As	CW511L	C27453
eco M57^®	CuZn42	CW510L	-
eco M58^®	CuZn42	CW510L	-
eco M59^®	CuZn42	CW510L	-
eco M60^®	CuZn40	CW509L	C27450

Wieland	EN Designation	EN No.	ASTM UNS-No.
S40	CuZn37Mn3Al2PbSi	CW713R	C67420
eco S34^®	CuZn34Mn2SiAlNi*	-	C67340
eco SW1^®	CuZn21Si3P	CW724R	C69300

Wieland	EN Designation	EN No.	ASTM UNS-No.
B06	CuSn6	CW452K	C51900
B09/B10	CuSn8	CW453K	C52100
B12/B21	CuSn8P/CuSn8	CW459K/CW453K	C52100
B44	CuSn4Pb4Zn4	CW456K	C54400
B45	CuSn4Pb4Zn4	CW456K	C54400
BV9	CuSn6	CW452K	C51900

Wieland	EN Designation	EN No.	ASTM UNS-No.
U35	CuAl10Ni5Fe4	CW307G	C63020
U36	CuAl11Fe6Ni6	CW308G	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
N29	CuNi18Zn20	CW409J	-
N31	CuNi7Zn39Pb3Mn2	CW400J	-
N32	CuNi12Zn30Pb1	CW406J	-
N37	CuNi18Zn19Pb1	CW408J	-
N48	CuNi12Zn38Mn5Pb2	CW407J	-
eco N59^®	CuNi9Zn41FeMn*	-	-

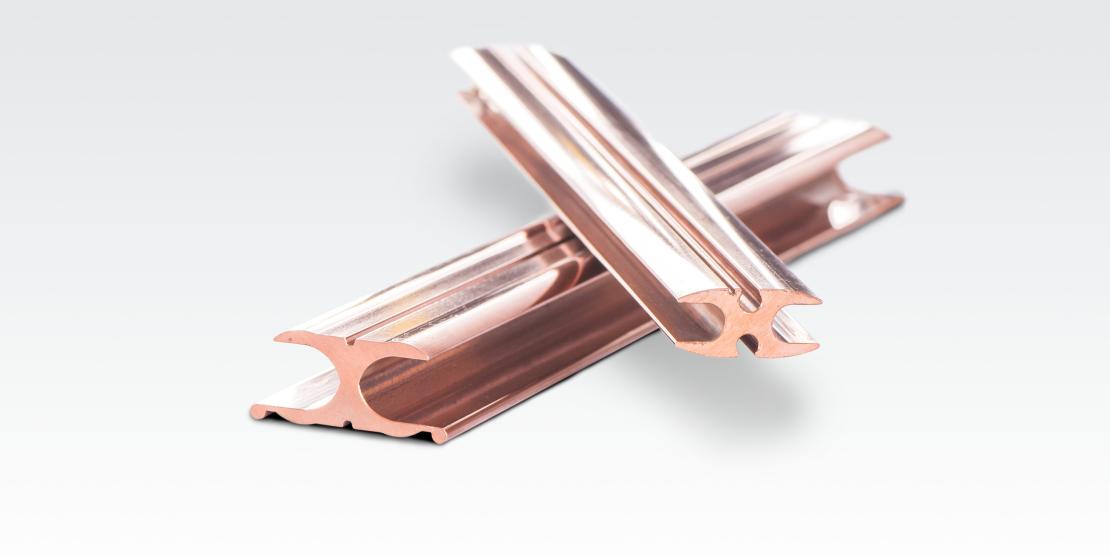

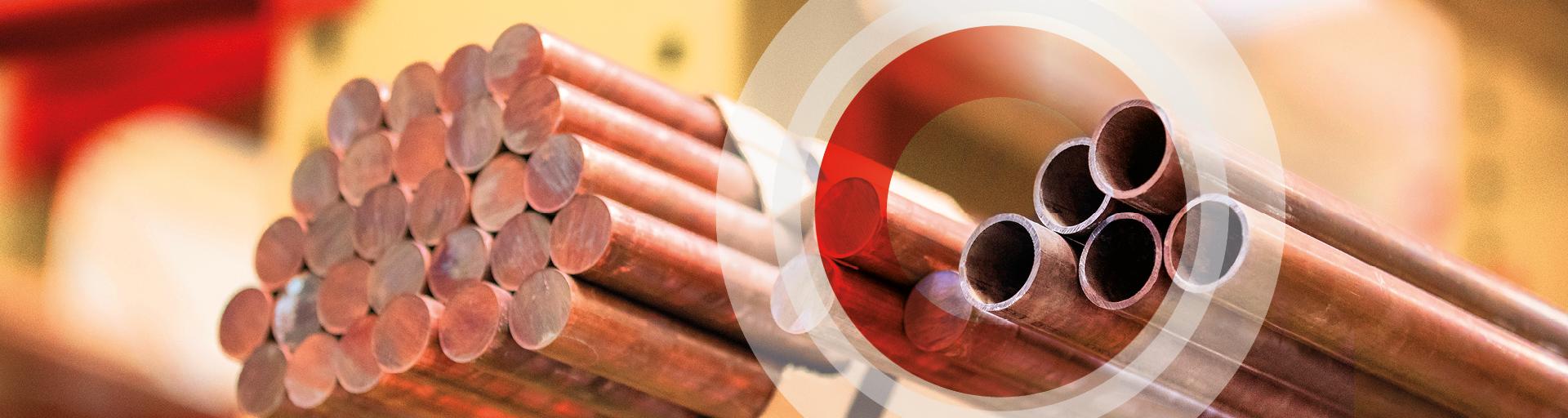

Wieland manufactures solid and hollow copper sections in a wide range of sizes. Featuring contours close to the final geometry, these sections help you obtain your finished parts in just a few operations. Together with you, we develop complex sections of copper from the draft to the initial prototypes to series production.

Materials

Copper

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
K12	Cu-HCP	CW021A	C10300
K16	Cu-ETP1	CW003A	-
K20/K21/K28	Cu-DHP	CW024A	C12200
K20/K21/K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200
K32	Cu-ETP	CW004A	C11000	C1100
KA1	CuAg0,10P	CW016A	-

Materials

W5000
W5006

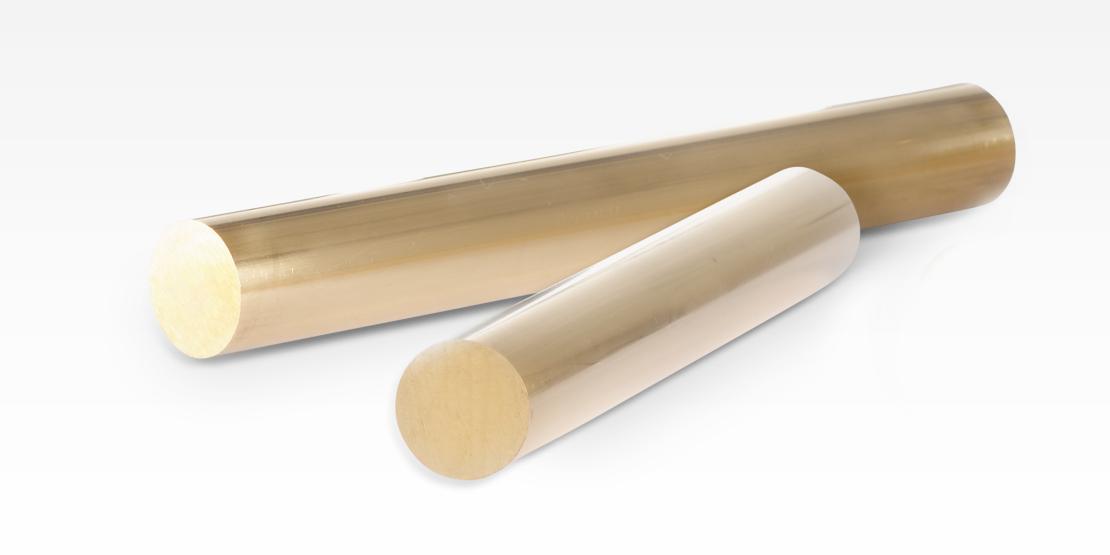

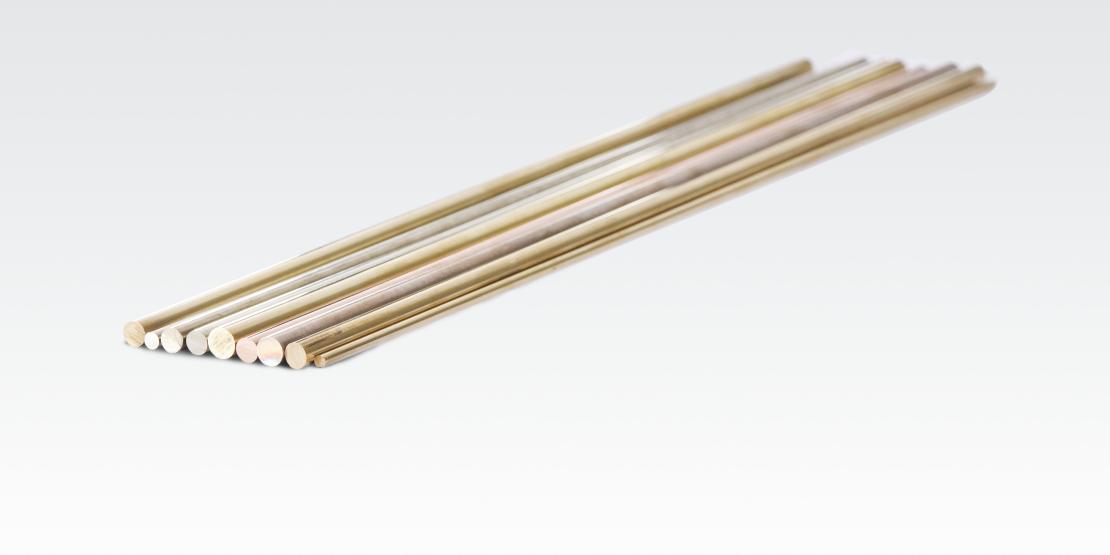

Our W5000 round rods are our premium product for your high performance machining operations. We guarantee the minimum diameter variance in the one batch and a straightness of 0.55 mm/m up to a diameter of 80 millimetres. And best of all: tight alloying tolerances for consistent machining results. Fine, uniform lead distribution for top machinability. Low contamination levels and optimised phase distribution for long tool lives.

Learn more

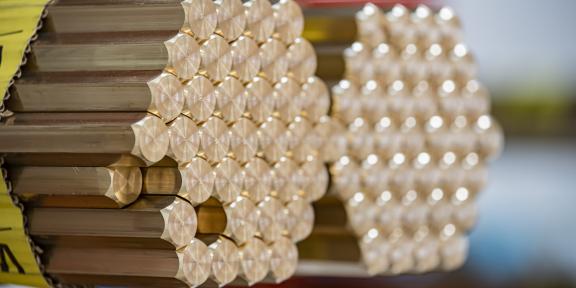

W5000 precision brass rods

The Wieland WICONNEC brand offers a range of copper materials in the form of rods and wires that are ideal for machined sockets and pins for plug connectors. This material portfolio also offers brass materials in addition to specially developed copper alloys for complex turned plug connectors.

WICONNEC

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K41	CuNi1Pb1P*	-	C19150 / C19160
K44	-	-	C19140 / C19150
KC1	CuPb1P	CW113C	C18700
eco KS2	CuSP*	CW114C	C14700
eco KS4	CuNi1SP*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z10	CuZn37Pb0,5	CW604N	C33500
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z14	CuZn37Pb2	CW606N	C35300
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z33	CuZn39Pb3	CW614N	C38500

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco LV3	CuNi9Sn*	-	C72700

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco M59	-	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco S34	-	-	C67340

Wieland	EN Designation	EN No.	ASTM UNS-No.
B44	CuSn4Pb4Zn4	CW456K	C54400

Wieland recognized the potential of environmentally friendly, lead-free machining brass at a very early date, and adopted the pioneering role in Europe by developing ECOBRASS. This proved to be a farsighted course into the future. Today, ECOBRASS is marketed worldwide over a cooperation network and available, even in smaller quantities, from trade partners. We also market this material under the name “CUPHIN” for sanitary products.

Materials

Special brass

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco SW1^®	CuZn21Si3P	CW724R	C69300

Wieland ecoline is our answer to enable your future business: the lead-free product line fulfills your individual needs for an efficient production and future oriented product development. And is, of course, compliant with the latest requirements of legislative directives on lead-free materials.

Learn more about
Wieland ecoline

Materials

Drinking water is our most important food. The quality of drinking water must be of such a high standard that it can be enjoyed without restriction throughout life. For this reason, ever stricter requirements are being imposed worldwide on materials that come into contact with drinking water. The appropriate selection of materials and products for drinking water installations is therefore extremely important. Technical, economic, but especially hygienic and health aspects play a major role.
Copper alloys have proven themselves technically and hygienically billions of times worldwide in drinking water installations and will therefore continue to be the basis for clean drinking water in the future.

Here you will find detailed information on ecoline water – please contact us if you have any questions.

All current Guidelines for lead-free materials are summarised in the Regulations.

Lead-free alloys for all parts in contact with drinking water

Wrought alloys - special brass

Wieland	EN-designation		ASTM	Fabrication properties				Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working	Corrosion resistance
eco SW1^®	CuZn21Si3P	CW724R	C69300	80%	good	excellent	In accordance with ISO 6509	DWD, SDWA

* Conformity as of 03/06/2020

DWD: Drinking Water Directive (Europe)
SDWA: Safe Drinking Water Act (USA)

Wrought alloys - brass

Wieland	EN-designation		ASTM	Fabrication properties				Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working	Corrosion resistance
eco M41^®	CuZn38As	CW511L	C27450	50%	good	fair	according ISO 6509	DWD, SDWA
eco M57^®	CuZn42	CW510L	-	70%	less suitable	excellent	-	DWD,SDWA

* Conformity as of 03/06/2020

DWD: Drinking Water Directive (Europe)
SDWA: Safe Drinking Water Act (USA)

Cast alloys

Wieland	EN-designation		ASTM	Fabrication properties		Regulations*
	Designation	No.	UNS-No.	Machinability	Corrosion resistance
eco GS1^®	CuSn4Zn2PS-C-GC**	-	-	70%	In accordance with ISO 6509	DWD, SDWA
eco SW3^®	CuZn21Si3P	CC76S	C87850	80%	In accordance with ISO 6509	DWD, SDWA

* Conformity as of 03/06/2020
** Material not standardized in EN

DWD: Drinking Water Directive (Europe)
SDWA: Safe Drinking Water Act (USA)

_{Apart from intent or gross negligence, we accept no liability for their correctness in terms of content. The product characteristics are not guaranteed and are no substitute for advice from our experts.}

For sockets and pins for connectors and other electrical components, we provide rods, wires and profiles, made of the copper alloys with the most suitable characteristics. In addition to low-cost brass materials, the materials portfolio includes specially developed copper materials for demanding applications of turned connectors.
Depending on the technical requirements, materials with high electrical conductivity or high mechanical strengths as well as a combination of both of these properties will be applied.

Here you will find detailed information on ecoline connect - please contact us if you have any questions.

All current guidelines for lead-free materials are summarised in the Regulations.

Lead-free alloys for signal and current-carrying components

Wrought alloys – brass

Wieland	EN-designation		ASTM	Fabrication properties				Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working	Conductivity IACS
eco M59^®	CuZn42	CW510L	-	60%	less suitable	excellent	24%	RoHS
eco M60^®	CuZn40	CW509L	C27450	50%	fair	good	23%	RoHS

* Conformity as of 03/06/2020

Wrought alloys – special brass

Wieland	EN-designation		ASTM	Fabrication properties				Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working	Conductivity IACS
eco SW1^®	CuZn21Si3P	CW724R	C69300	80%	good	excellent	8%	RoHS
eco S34^®	CuZn34Mn2SiAlNi**	-	C67340	70%	good	excellent	19%	RoHS

* Conformity as of 03/06/2020
** Material not standardized in EN

Wrought alloys – high-copper alloy

Wieland	EN-designation		ASTM	Fabrication properties				Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working	Conductivity IACS
eco KS2^®	CuSP	CW114C	C14700	80%	ecxellent	fair	90%	RoHS
eco KS4^®	CuNi1SP**	-	-	70%	good	fair	>50%	RoHS

* Conformity as of 03/06/2020
** Material not standardized in EN

Wrought alloys – copper nickel

Wieland	EN-designation		ASTM	Fabrication properties				Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working	Conductivity IACS
eco LV3^®	CuNi9Sn6**	-	C72700	30%	excellent	good	up to 12%	RoHS

* Conformity as of 03/06/2020
** Material not standardized in EN

Wrought alloys – nickel silver

Wieland	EN-designation		ASTM	Fabrication properties				Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working	Conductivity IACS
eco N59^®	CuNi9Zn41FeMn**	-	-	50%	fair	good	10%	RoHS

* Conformity as of 03/06/2020
** Material not standardized in EN

_{Apart from intent or gross negligence, we accept no liability for their correctness in terms of content. The product characteristics are not guaranteed and are no substitute for advice from our experts.}

Components for automotive applications are exposed to very high loads such as high temperatures or friction and require material characterstics with high robustness and stress resistance. We offer our pre-material for slide bearing applications, hot stamped parts and machined components in various lead-free alloys adapted to a wide variety of processing methods and applications.

We are happy to support you also in the design and production of your slide bearings with individual quantities. With our in-house capabilities, we are the leading manufacturer in various industrial sectors, such as agricultural and construction machinery, general mechanical engineering and other niche applications.

Here you will find detailed information on ecoline drive - please contact us if you have any questions.

All current guidelines for lead-free materials are summarised in the Regulations.

Lead-free alloys for automotive components

Wrought alloys - special brass

Wieland	EN-designation		ASTM	Fabrication properties			Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working
eco SD4^®	CuZn37Mn3Al2Si**	-	-	45%	less suitable	excellent	ELV
eco SW1^®	CuZn21Si3P	CW724R	C69300	80%	good	excellent	ELV
eco SX1^®	CuZn31Mn2SiAl**	-	-	70%	good	excellent	ELV

* Conformity as of 01/25/2023
** Material not standardized in EN

Wrought alloys - brass

Wieland	EN-designation		ASTM	Fabrication properties			Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working
eco M59^®	CuZn42	CW510L	-	60%	less suitable	excellent	ELV
eco M60^®	CuZn40	CW509L	C27450	50%	fair	good	ELV

* Conformity as of 01/25/2023

_{Apart from intent or gross negligence, we accept no liability for their correctness in terms of content. The product characteristics are not guaranteed and are no substitute for advice from our experts.}

Be it the pen you are writing with, the key you are using, the spectacles you are wearing, the watch or the bracelet on your wrist or the brass instrument you play, there is a high chance you are in touch with Wieland material. That is why we care for materials of our rods and wires with the lowest possible lead content.

Here you will find detailed information on ecoline accessories – please contact us if you have any questions.

All current Guidelines for lead-free materials are summarised in the Regulations.

Lead-free alloys for accessories

Wrought alloys - nickel silver

Wieland	EN-designation		ASTM	Fabrication properties			Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working
eco N59^®	CuNi9Zn41FeMn**	-	-	50%	fair	good	REACH Annex 17 (Pb)

* Conformity as of 03/06/2020
** Material not standardized in EN

Wrought alloys - brass

Wieland	EN-designation		ASTM	Fabrication properties			Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working
eco M58^®	CuZn42	CW510L	-	50%	less suitable	excellent	REACH Annex 17, CPSIA

* Conformity as of 03/06/2020

Wrought alloys - special brass

Wieland	EN-designation		ASTM	Fabrication properties			Regulations*
	Designation	No.	UNS-No.	Machinability	Cold working	Hot working
eco SW1^®	CuZn21Si3P	CW724R	C69300	80%	good	excellent	REACH Annex 17
eco S34^®	CuZn34Mn2SiAlNi**	-	C67340	70%	good	excellent	REACH Annex 17 (Pb)

* Conformity as of 03/06/2020
** Material not standardized in EN

_{Apart from intent or gross negligence, we accept no liability for their correctness in terms of content. The product characteristics are not guaranteed and are no substitute for advice from our experts.}

From Europe’s largest copper alloy foundry in Vöhringen/Iller (Germany), we can offer you far in excess of a hundred different copper materials. These include not only a wide range of continuous castings like tubes and rods, but also shaped rods and sections of complex geometries. At the same time, our flexibility ensures the prompt realisation of your special custom wishes.

Materials

Cast Alloy

Wieland	EN Designation	EN No.	ASTM UNS-No.
G05	CuSn5Zn5Pb5-C-GC	CC491K	-
G07/G08	CuSn7Zn4Pb7-C	CC493K	-
G10	CuSn10-C	CC480K	-
G12/G13	CuSn12-C	CC483K	-
G21	CuSn10Pb10-C-GC	CC495K	-
G91	CuSn11Pb2-C-GC	CC482K	-
GA1	CuSn11Pb2-C-GC	CC481K	-
GD1	CuSn5Zn5Pb2-C-GC	CC499K	-
eco GS1^®	CuSn4Zn2PS-C-GC*	-	-

Learn more

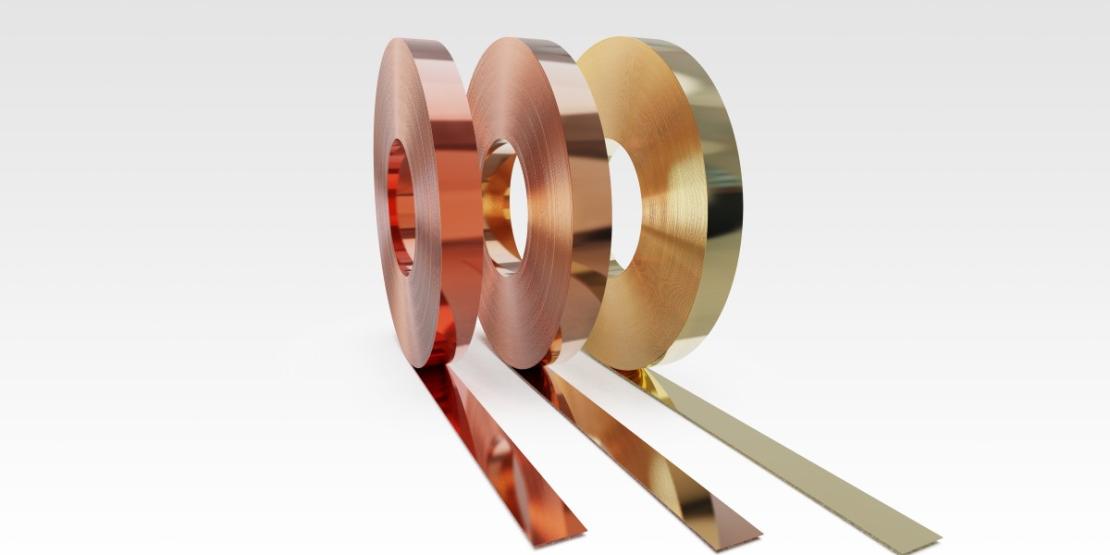

Strips for connector
Hot dip tinned copper and copper-alloy strip
Strip for semiconductor packages

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
K09	Cu-OFE	CW009A	C10100	C1011
K11	Cu-OF	CW008A	C10200
K12	Cu-HCP	CW021A	C10300
K14	Cu-PHC	CW020A	C10300
K19	Cu-DHP	CW024A	C12200	C1220
K32	Cu-ETP	CW004A	C11000	C1100

Wieland	EN Designation	EN No.	ASTM UNS-No.
K65	CuFe2P	CW107C	C19400
K80	CuFe0,1P*	-	C19210
K81	CuSn0,15	CW117C	C14415

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K57	CuNi1Co1Si*	-	C70350
K58	CuNi3Si1Mg	-	C70250
K73	CuNi1ZnSi*	-	C19005
K75	CuCrSiTi*	-	C18070
K76	CuNiSiP*	-	C19010
K82	-	-	C15100
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M42	CuZn42	CW510L	-
Z21	CuZn38Pb2	CW608N		C3713
Z30	CuZn39Pb2	CW612N	C37700

Wieland	EN Designation	EN No.	ASTM UNS-No.
L49	CuNi9Sn2	CW351H	C72500
L96	CuNi9Sn6	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M05	CuZn5	CW500L	C21000	C2100
M10	CuZn10	CW501L	C22000	C2200
M15	CuZn15	CW502L	C23000	C2300
M20	CuZn20	CW503L	C24000	C2400
M30	CuZn30	CW505L	C26000	C2600
M33	CuZn33	CW506L	C26800	C2680
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37	CuZn37	CW508L	C27200	C2720
M38	CuZn37	CW508L	C27200	C2720

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
S12	CuSn3Zn9	CW454K	C42500	C4250
S23	CuZn23Al3Co	CW703R	C68800

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
B14	CuSn4	CW450K	C51100
B15	CuSn5	CW451K	C51000
B16	CuSn6	CW452K	C51900
B18	CuSn8	CW453K	C52100	C5212
B31	CuSn2Fe0,1P*	-	C50715

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
N12	CUNi12Zn24	CW403J	C75700
N17	CuNi18Zn27	CW410J	C77000	C7701
N18	CuNi18Zn20	CW409J	C76400	C7521
N39	CuNi12Zn25Pb1	CW404J	C79200
N41	CuNi7Zn37Pb1	-	-

We can offer you a wide range of materials, geometries, and surface qualities to choose from. Many geometries are available from our sheets stores.

Learn more

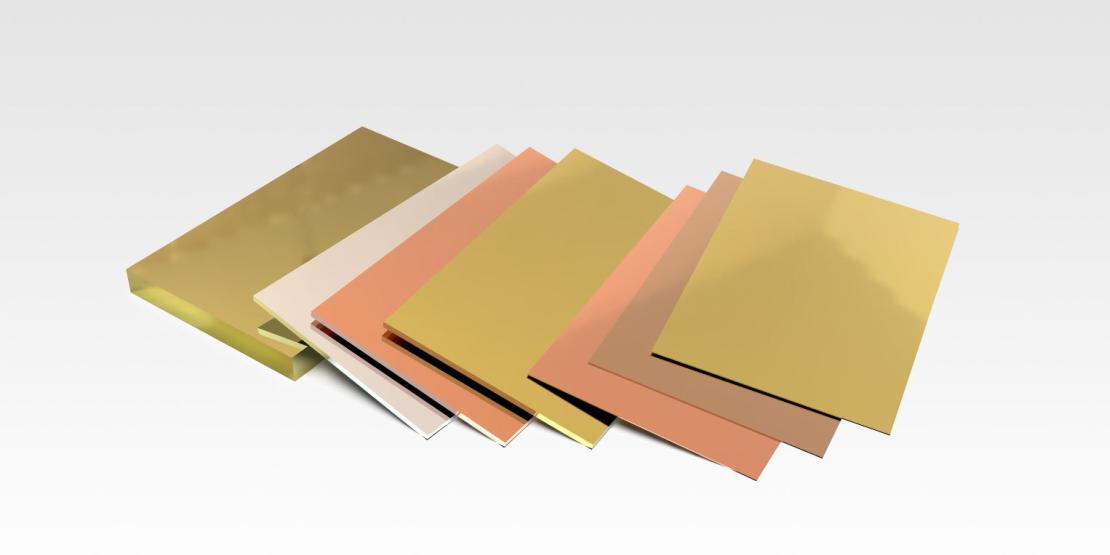

Copper alloy sheets and plates

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K57	CuNi1Co1Si*	-	C70350
K58	CuNi3Si1Mg	-	C70250
K73	CuNi1ZnSi*	-	C19005
K75	CuCrSiTi*	-	C18070
K76	CuNiSiP*	-	C19010
K82	-	-	C15100
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z21	CuZn38Pb2	CW608N		C3713
Z30	CuZn39Pb2	CW612N	C37700

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M05	CuZn5	CW500L	C21000	C2100
M10	CuZn10	CW501L	C22000	C2200
M15	CuZn15	CW502L	C23000	C2300
M20	CuZn20	CW503L	C24000	C2400
M30	CuZn30	CW505L	C26000	C2600
M33	CuZn33	CW506L	C26800	C2680
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37	CuZn37	CW508L	C27200	C2720
M38	CuZn37	CW508L	C27200	C2720

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
B14	CuSn4	CW450K	C51100
B15	CuSn5	CW451K	C51000
B16	CuSn6	CW452K	C51900
B18	CuSn8	CW453K	C52100	C5212

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
N12	CUNi12Zn24	CW403J	C75700
N17	CuNi18Zn27	CW410J	C77000	C7701
N18	CuNi18Zn20	CW409J	C76400	C7521
N39	CuNi12Zn25Pb1	CW404J	C79200
N41	CuNi7Zn37Pb1	-	-

Available materials

Wieland	EN	EN-Nr.	UNS
K08	Cu-OFE	CW009A	C10100
K12	Cu-HCP	CW021A	C10300
K20 / K21 / K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200
K65	CuFe2P	CW107C	C19400
L10	CuNi10Fe1Mn	CW352H	C70600
L30	CuNi30Mn1Fe	CW354H	C71500

Delivery forms

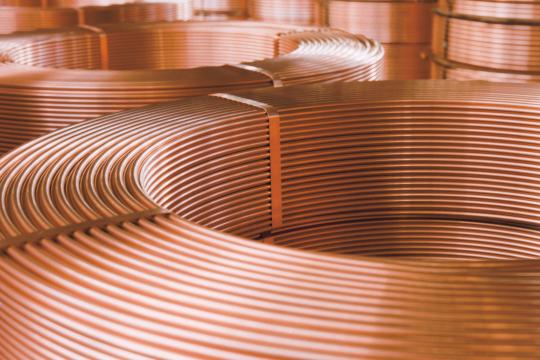

Level wound coils: 100 kg, 150 kg, 300 kg, 530 kg
Straight lengths
Rings

Materials

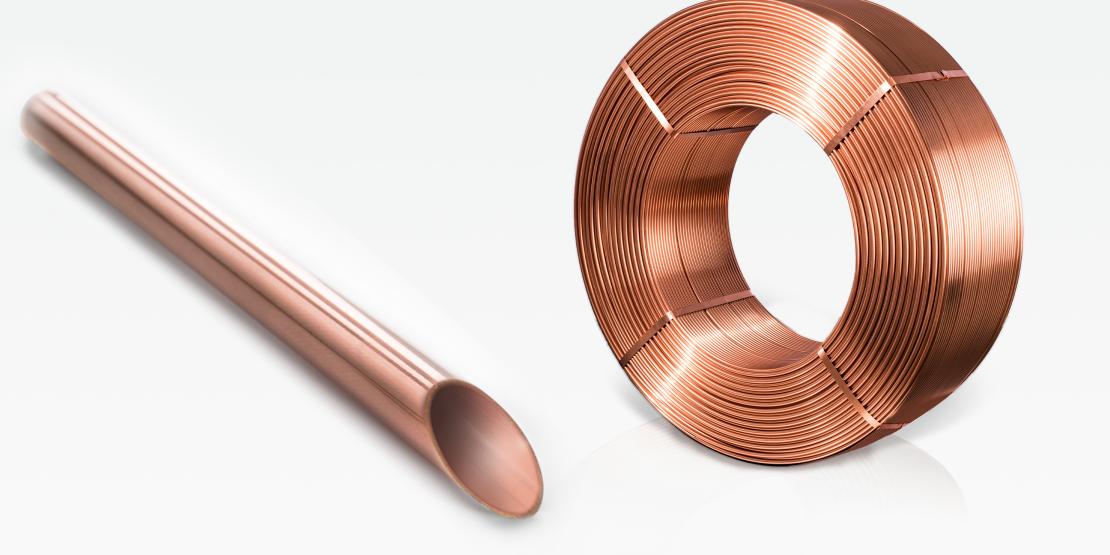

K65 - Sustainable and efficient

Sustainable and efficient – two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO₂. Wieland supports this turnaround with a tube system that meets the high requirements of CO₂ as a refrigerant.

Wieland K65 tubes have been designed for CO₂ applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO₂. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).

All Wieland K65 tubes are available in the soft condition (R300/O61) to ensure excellent bending / flaring and collaring properties.

Wieland K65 tubes are offered from stock in two pressure ranges, 80 bar and 120 bar, and in dimensions ranging from 3/8” up to 2-1/8”.

Moreover, K65 tubes are also available in individual dimensions and different delivery forms.
For industrial processing, in particular CO₂ heat exchanger (evaporator / gas cooler) manufacturing, level wound coils (LWC) are offered.

More K65 products in other categories

Your benefits

Pressure resistance tailormade to your needs
Cost reduction through weight reduction
Proven processing technology: brazing instead of welding!
Excellent heat transfer
Design according to EN 14276 - TUEV or UL certification on demand

Typical applications

Components of R744 refrigeration systems
Fin coil heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers )
Shell and tube heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)

Technical properties

Material: K65
Conditions: soft R300/O61 and hard R420/H80
Delivery form: Level wound coils or straight lengths
Coil weights: 100 kg, 150 kg, 300 kg
Available dimensions: 5 - 28 mm for LWC; 5 - 110 mm for straight lengths
Usual standards: EN 12735-1 / EN 14276 / ASTM B 1017

Further information

cuproclima

For high-quality seamless inside smooth or innergrooved copper tubes in level-wound coils for the refrigeration and air-conditioning industries. The specified quality and inspection criteria exceed the existing requirements of standards (e. g. EN 12735-2, ASTM).

Your benefits

longer run time for machines when uncoiling tubes
reduced scrap for finished products
reduced set-up time
detection of even smaller surface defects on the tubes
possible malfunctions of finished equipment during pressure testing are reduced
fewer impurities in the refrigerant circuit.

Fields of application

air-cooled heat exchangers for the air-conditioning and refrigeration industry
evaporators
condensers
heat exchangers
air coolers

Technical Properties

Materials Cu-DHP
Conditions soft and extra soft
Delivery form level wound coils only
Coil weights 100 kg, 150 kg, 300 kg
Available dimensions 4 - 28 mm, wall thicknesses on request

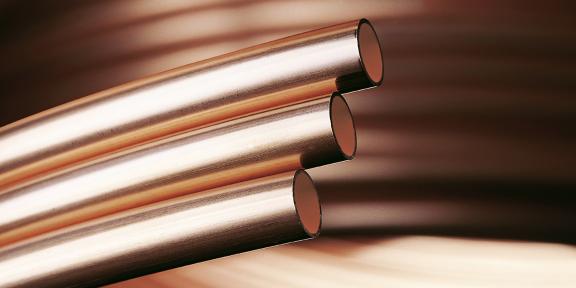

Copper tubes with ultra clean inner surface for industrial applications

Our innovative production process for cuproclean tubes removes carbon film. This results in higher reliability, longer life and reduced maintenance costs.It is suitable for all fresh water applications. Copper offers outstanding versatility and is characterized by excellent formability as well as good processing properties. cuproclean copper tubes are also available in combination with other qualities such as cuproform.

Your benefits

ultra-clean tube surface free from carbon film
highest reliability and longer life also in fresh water applications
best corrosion resistance
carbon film test according to EN 1057 and confirmation in the certificate

Fields of application

cooling ceilings
solar water heating systems
heat generators

Technical properties

Materials Cu-DHP
Conditions Soft
Delivery form Level wound coils
Coil weights 100 kg, 150 kg, 300 kg
Available dimensions 6 - 28 mm, wall thicknesses on request

High formable copper tubes

In boiler manufacture, for example the tubes may be formed by: expanding, bending, upsetting and beading. Industrial copper tubes from conventional production do not always meet these high demands. Therefore, it is often necessary to use additional fittings made from other materials. This results in further production steps and consequently higher production costs.

Your benefits

no special fittings necessary; this results in lower costs of production
higher added value in your production
exceptional forming properties – 80% expansion of the tube end tested and certified on the inspection certificate
less scrap with very high deformation

Fields of application

Connecting pieces, e.g. especially for boilers

Technical properties

Materials Cu-DHP
Conditions soft and extra soft
Delivery form Layer-wound coils and straight lengths
Coil weights 100 kg, 150 kg, 300 kg, 530 kg
Available dimensions 6 - 28 mm for LWC; 6 - 64 mm for straight lengths

Copper tubes with high-purity outer surface for solar thermal applications

In the process of manufacturing solar heat absorbers requirements vary depending on the application. In the solarclean family you will find the most suitable copper tube quality for your optimized fabrication.

solarclean classic
The particularly clean tube surface ensures a high quality weld. You can therefore save at least one cleaning operation or an extensive pre-treatment of the components to be welded.

solarclean HP
For heat pipes in vacuum tube collectors - highest surface cleanliness on tube outside and inside prevents contamination of the heat transfer medium in the heat pipe and yet ensures the efficiency of the system.

solarclean plus
Improved forming properties for the fabrication of meander-shaped absorber tubes facilitate the setting of the bending machines and increase process reliability. solarclean_plus ensures super clean tube surfaces substantially improving the ultrasonic welding process.

solarclean eco
The cost-effective alternative for laser welding of absorber plate and tubing with sufficient cleanliness.

solarclean SL
Like solarclean classic, solarclean SL ensures superclean tube surfaces. Depending on your fabrication needs, you can also order solarclean in straight lengths.

Technical properties

Materials Cu-DHP
Conditions hard, hard relaxed, half-hard
Delivery form Layer-wound coils and straight lengths
Coil weights 100 kg, 150 kg, 300 kg, 530 kg
Available dimensions 6 - 15 mm; wall thicknesses 0.3-1.2 mm

Available materials

Wieland	EN	EN-Nr.	UNS
K20 / K21 / K28	Cu-DHP	CW024A	C12200
L10	CuNi10Fe1Mn	CW352H	C70600
K65	CuFe2P	CW107C	C19400

Materials

K65 - Sustainable and efficient

two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO₂. Wieland supports this turnaround with a tube system that meets the high requirements of CO₂as a refrigerant.

Wieland K65 tubes have been designed for CO₂applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO₂. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).

Innergrooved K65 tubes for manufacturing of CO₂heat exchangers (evaporator / gas cooler) are available in individual dimensions. These are delivered in level wound coils (LWC) or straight lengths alternatively.

Wieland K65 tubes are also available from stock in standard dimensions.

More K65 products in other categories

Your benefits

Pressure resistance tailormade to your needs
Cost reduction through weight reduction
Proven processing technology: brazing instead of welding!
Excellent heat transfer
Design according to EN 14276 - TUEV certification on demand

Typical applications

Fin coil heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)
Shell and tube heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)

Technical properties

Materials: K65
Conditions: soft R300/O61 and hard R420/H80
Delivery form: Level wound coils or straight lengths
Coil weights: 100 kg, 150 kg, 300 kg
Available dimensions: 5 - 16 mm
Usual standards: EN 12735-1 / EN 14276 / ASTM B 1017

Further information

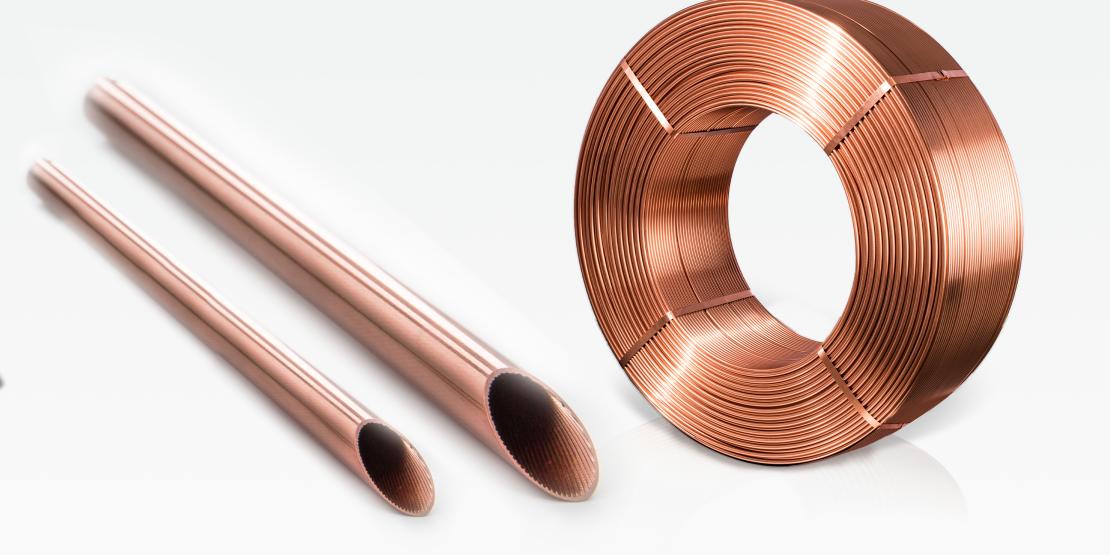

cuprofin-Standard

Wieland cuprofin-Standard tubes are effiecient heat exchanger tube that are suitable for one and two-phased flow as well as for evaporation and condensation. This enables the flexible production of efficient and compact heat exchangers. There is no need to keep a stock of different specialized tube types.

Your benefits

improved heat transfer due to fin structure on the inside of the tube
compact heat exchanger construction
reduced material input
Internal structure suitable for evaporation, condensation and single-phase heat transfer

cuprofin-standard is also available in superclean quality and as a microgroove tube.

Fields of application

Finned heat exchangers for the refrigeration/air conditioning industry
Evaporator
Condensers
Recooler
Air Cooler
Tube bundle injection evaporator
Heat exchangers in the form of coiled elements (e.g. container heating and cooling)

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin

cuprofin-C tubes for condensors

Wieland cuprofin-C Tubes are highly efficient heat transfer tubes for the tube-side condensation of refrigerants. Depending on the fluid used, the fins on the inside of the tube are optimized for high performance with low material usage. They enable the design of highly efficient and compact heat exchangers.

Your benefits

optimized heat transfer due to adapted fin structure on the inside of the tube
compact heat exchanger construction
reduced refrigerant charge
reduced material input

cuprofin-C is also available in superclean quality and as microgroove tube.

Fields of application

Finned heat exchangers, especially condensers
Heat exchangers in the form of coiled elements (e.g. container heating)

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin-C

cuprofin-E tubes for evaporators

Wieland cuprofin-E tubes are highly efficient heat transfer tubes for the tube-side evaporation of refrigerants in finned heat exchangers. The fins on the inside of the tubes are designed for optimum performance during flow boiling and the lowest possible pressure drop for a wide range of refrigerants.

Your benefits

optimized heat transfer due to adapted fin structure on the inside of the tube
compact heat exchanger construction
extremely low pressure drop
reduced material input

cuprofin-E is also available in superclean quality and on requiry as a microgrooved tube.

Fields of application

Finned heat exchangers, especially evaporators

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin-E

cuprofin-EDX tubes for injection

cuprofin-EDX are highly efficient and stable heat exchanger rubes for Injection evaporator in tube bundle design.

Your benefits

optimized heat transfer and very low pressure drop
compact heat exchanger construction
reduced material input

cuprofin-EDX is also available in superclean quality and on request as a microgroove tube.

Fields of applications

Tube bundle injection evaporator

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg, 530 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin-EDX

cuprofin-G tubes for single-phase heat transfer

Wieland cuprofin-G Tubes are highly efficient heat transfer tubes, especially designed for recooling systems and air coolers. The fins on the inside of the tubes are optimized for single-phase heat transfer of aqueous media such as water-glycol mixtures. This enables the production of efficient and compact heat exchangers.

Your benefits

optimized heat transfer through adapted fin structure on the inside of the tube
compact heat exchanger construction
low pressure drop
reduced material input

cuprofin-G is also available in superclean quality.

Fields of application

Finned heat exchanger with single-phase heat transfer
Recooler
Air cooler

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

cuprofin-G

cuprofin-L10 tubes for seawater applications

Wieland cuprofin-L10 tubes are efficient heat transfer tubes which are particularly suitable for applications with seawater and other salt water as well as in their surroundings (e.g. coastal areas). The material CuNi10Fe1Mn (Wieland L10) is highly resistant to corrosion and erosion in these fluids. Compared to stainless steels the thermal conductivity of L10 is higher by a factor of approx. 3.

Your benefits

improved heat transfer due to fin structure on the inside of the tube
compact heat exchanger construction
reduced material input
highly resistant to corrosion and erosion

cuprofin-L10 is also available in superclean quality.

Fields of application

Finned and bundle tube heat exchangers that are operated with seawater or other saltwater, or installed in coastal areas

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359.
- VdTÜV 420/6, 420/7

Further Information

cuprofin-L10

microgroove - Small diameter, high performance

With microgroove technology you build your heat exchanger with maximum efficiency and maximum compactness.

Your benefits

reduced refrigerant charge
Increased efficiency of the heat exchanger
compact heat exchanger construction
reduced material input
reduced investment costs

microgroove is also available in superclean quality.

Fields of application

Highly efficient finned heat exchangers
Evaporator
Condensers

Technical properties

Delivery form Layer-wound coils and straight lengths up to 7,9m
Coil weights 100 kg, 150 kg, 300 kg
Usual standards
- EN 12735-2
- ASTM B359
- VdTÜV 420/6, 420/7

Further Information

microgroove

Available materials

Wieland	EN	EN-Nr.	UNS
K20 / K21 / K28	Cu-DHP	CW024A	C12200

Materials

For a more sustainable future in construction.

With its 100 % share of recycled material, the cuprolife copper tube makes a sustainable difference, and thus makes a significant contribution to the advancement of building and construction as well as building services.

Every cuprolife tube from Wieland is manufactured in keeping with the mass balance approach – using a process with 100 % recycled copper. As the starting point when verifying cuprolife, TÜV SÜD tested the procedure for calculating the 100 % recycled content*.

The new standard in copper tubes: cuprolife^®.

Thanks to cutting-edge manufacturing techniques, cuprolife tubes exceed even the highest requirements. Optimal efficiency and reliability are guaranteed along with an exceptional service life. cuprolife tubes are universally usable. cuprolife is permanently in stock and can be supplied in any size from 6 x 1 mm to 159 x 3 mm.

Fields of application

Domestic hot and cold water supply
Heating
Gas
Liquid gas
Heating oil / biofuel oil B10
Solar systems
Rainwater
Industrial compressed air
Sprinkler systems
Firefighting systems

Technical features

100 % recycled copper*
Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification: DV-7204AU2106 (6 to 159 mm outside diameter)
Universal use in a range of finely differentiated dimensions
Optimum availability and compatibility with a wide range of fittings
Maximum operating temperature at 10 bar operating pressure: 250 °C (applies to dimensions up to DN 150)
Fire resistance: EN 13501-1 – A1 (nonflammable)
Dimensions according to DVGW GW 392 (6 to 159 mm) with closed tube ends
For optimal drinking water hygiene

*Mass balance approach, based on ISO 14021, verified by TÜV SÜD.

Learn more

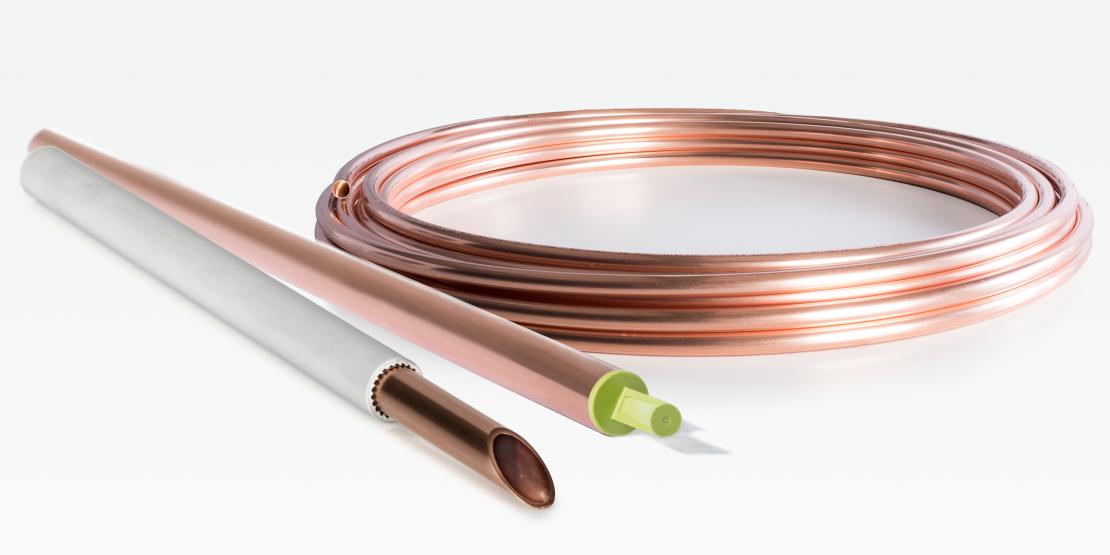

Reliable for all areas of home installation

For many years, installers have been relying on SANCO branded copper tubes. The tubes are very reliable, suitable for all areas of domestic installation and have more than proven their worth in practice. Whether drinking water supply (hot and cold), heating systems, oil, gas and liquid gas supplies as well as thermal solar systems: Wieland SANCO tubes are always the right choice and, of course, covered by the relevant regulations.

Technical features

Patented manufacturing process: SANCO tubes are significantly better than required by standards and regulations.
Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 159 mm outside diameter).
Universal use in a range of finely differentiated dimensions
Optimum availability and compatibility with a wide range of fittings
Maximum operating temperature: 250 °C
Fire resistance: EN 13501-1-A1 (non-flammable)
Dimensions according to DVGW GW 392 (12 to 159 mm) with closed tube ends
For optimal drinking water hygiene
Wide range of certifications available, such as Kitemark, Afnor, KIWA, DVGW and many others

Fields of application

Domestic hot and cold water supply
Heating systems
Gas and oil services for heating and cooking
Solar systems
Rainwater
Industrial compressed air
Sprinkler and Fire-fighting-systems
Further applications in consultation with our technical advisory service

WICU

WICU tubes a have a mill-applied protective coating. They are therefore suitable for concealed installation under plaster or in environments with an aggressive atmosphere, and for installation outdoors, either above or below ground.

Technical features

Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 42 mm outside diameter).
Protective coating conforms to EN 13349 and DIN 30672-1 class B
Reduction of condensation
Fire resistance: EN 13501-1-E
Color of coating: light gray
Temperature range up to 100 °C

Fields of application

Domestic hot and cold water supply
Heating systems
Gas and oil services for heating and cooking
Rainwater
Industrial compressed air
Further applications in consultation with our technical advisory service

WICU Flex

WICU Flex is a plumbing tube with a flexible coating for rapid installation. The coating consists of closed-cell PE foam covered by a structured protective film. WICU Flex is supplied in coils for rapid connection to manifolds etc. and for underfloor installations.

Technical properties

Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 22 mm outside diameter)
CFC/FKW-free polyethylene foam (PE) with a
PE structural foil
Sound insulation: DIN 4109 - A1
Thermal conductivity of the insulation layer according to DIN 52613:
= 0.040 W/mK at 40 °C
Fire resistance: N 13401-1-E
Color of coating: white
Temperature application range: up to 100 °C

Fields of application

Connecting tubes
Domestic hot and cold water supply
Central heating systems

cuprotherm CTX

cuprotherm CTX tubes are copper tubes with a firmly adhering coating. Due to their structure, they are very easy to process and are characterized by a flexibility so far unknown for metal tubes. CTX tubes are a technically high-quality and at the same time economically interesing solution: They offer an attractive price per meter for copper tubes at stable conditions, and are therefore also convincing in terms of reliability in planning.

Technical features

Flexible copper tube made of pure copper Cu-DHP
Temper: soft R220 according to EN 1057 with firmly adhering coating made of PE-RT
Fire behavior EN 13501-1, class E
Color of the coating: white, similar to RAL 9010 (pure white)
Temperature application range: up to 100 °C

Fields of application

Heating
Cooling
Radiator connection
Rainwater harvesting systems
Ground collectors (water/glycol)
Concrete core activation

cuprotherm.plus

cuprotherm is Europe's most frequently installed copper underfloor heating system, and for good reason. The outstandingly long service life of cuprotherm copper tubes will make you forget about surface heating for decades after it has been installed. Due to the highest thermal donductivity in technical materials, efficient use for this application is also good for the wallet in the long run.

The orange coating provides mechanical and chemical protection from the outside and allows the cuprotherm tube to expand unhindered in length when the temperature changes.

Technical properties

Design according to EN 1057
Fire resistance: EN 13501-1-E
Building material class: DIN 4102 - A1
With quality mark
Diffusion rate: 0.00 mg/m²*d after 50 years

Fields of application

Surface heating and cooling
Wall heating
Industrial surfaceheating
Sports floor heating

cuprotherm.blank

cuprotherm is Europe's most frequently installed copper underfloor heating system, and that for good reasons. The oustandingly long service life of cuprotherm copper tubes will make you forget about surface heating for decades after it has been installed. Due to the highest thermal conductivity in technical materials, efficient use for this application is also good for the wallet in the long run.

The bare copper tube also withstands high temperatures and is therefore the first choice in applications with mastic asphalt.

Technical properties

Design according to EN 1057
Fire resistance: EN 13501-1-A1 (non-flammable)
With quality mark
Diffusion rate: 0.00 mg/m²*d after 50 years

Fields of application

Underfloor heating with mastic asphalt screed
Wall heating with clay plaster

Available materials

Wieland	EN	EN-Nr.	UNS
K20 / K21 / K28	Cu-DHP	CW024A	C12200
K65	CuFE2P	CW107C	C19400

Materials

K65 - Sustainable and efficient

two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO2. Wieland supports this turnaround with a tube system that meets the high requirements of CO2 as a refrigerant.

Wieland K65 tubes have been designed for CO2 applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO2. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).
Wieland K65 tubes are offered from stock in two pressure ranges, 80 bar and 120 bar, and in dimensions ranging from 3/8” up to 2-1/8”.

All Wieland K65 tubes are available in the soft condition (R300/O61) to ensure excellent bending / flaring and collaring properties.

Other dimensions and delivery forms such as level wound coils are offered for industrial processing, in particular manufacturing of CO2 heat exchangers (evaporator/gas cooler).

More K65 products in other categories

Your benefits

Cost reduction through weight reduction
Proven processing technology: brazing instead of welding!
Economical and safe installation of regrigeration systems with up to 120 bar operation pressure
Excellent heat transfer
Design according to EN 14276

Typical applications

Pipelines for refrigeration systems, in particular for CO2 refrigerant, with an operation pressure of up to 120 bar

Technical properties

Material: K65
Operation pressure: 80 bar and 120 bar
Condition: soft R300/O61
Delivery form: straight lengths of 5 m
Available dimensions: 9,52 - 53,97 mm (3/8" - 2-1/8")
Tube ends: closed
Usual standards: EN 14276 / EN 12735-1

Further information

cuprofrio.plus

Wieland branded copper tubes cuprofrio and cuprofrio.plus have a high level of internal cleanliness due to the individually closed tube ends and are suitable for refrigerants according to EN 12735-1.
cuprofrio tubes can be easily processed on site and conform to high quality standards with their extremely clean and dry inner surface. Close tube ends ensure the required quality even during storage and transportation.

learn more

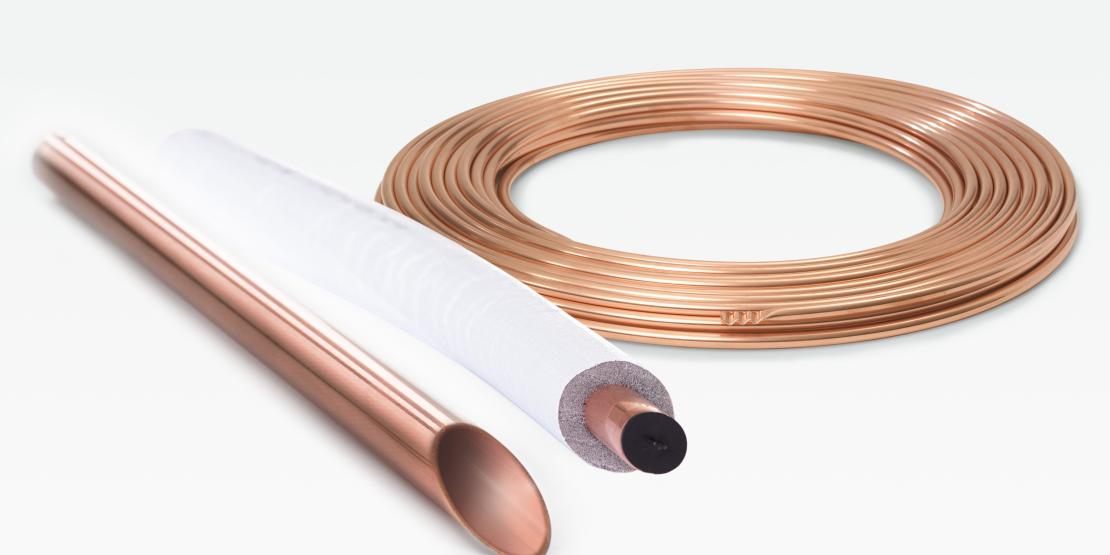

cuprofrio.plus

cuprofrio.plus-tubes are insulated on the outside, which prevents nearly all water condensation on the outer surface of the tube.

Your benefits

clean and dry inside surface
standard dimensions available from stock
good processing, easy joining, very easy to unwind and bend
resistant, colour-fast insulation ensures consistent material properties in all weather conditions
prevention of condensation water through insulating layer
supplier traceability through signature
compliance with Pressure Equipment Directive 97/23/EC

Fields of application

cuprofrio is suitable for technical gases and liquids, for example in

chillers
air-conditioning and refrigeration units
heat exchangers

learn more

cuprofrio – refrigeration

Wieland branded copper tubes cuprofrio and cuprofrio.plus have a high level of internal cleanliness due to the individually closed tube ends and are suitable for refrigerants according to EN 12735-1.
cuprofrio tubes can be easily processed on site and conform to high quality standards with their extremely clean and dry inner surface. Close tube ends ensure the required quality even during storage and transportation.

learn more

Your benefits

clean and dry inside surface
closed tube ends in order to maintain cleanliness
supplier traceability through signature
standard dimensions available from stock
good processing, easy joining, very easy to unwind and bend
tube quality according to EN 12735-1
compliance with Pressure Equipment Directive 2014/68/EU

Fields of application

cuprofrio is suitable for technical gases and liquids, for example in

chillers
air-conditioning and refrigeration units
heat exchangers

Forms of delivery

Coils (pancakes)
Straight lengths of 5 m

learn more

cuprogeo – geothermal energy

The seamless drawn cuprogeo tube is used for geothermal energy production. cuprogeo is designed for the use of refrigerants and gases for direct evaporation in heat pumps. The advantage of this application is that high performance can be achieved with suitable heat pumps.

Your benefits

clean and dry inner surface
supplier traceability through signature
tube protected by an outside surface coating
standard tube quality according to EN 12735-1
requirements comply with the Pressure Equipment Directive 2014/68/EU

Fields of application

geothermal energy
refrigeration equipment and heat exchangers
geothermal heat pumps with direct evaporation

cupromed – medical gas supply

The seamless drawn cupromed copper tube is used for refrigeration/air conditioning as well as for medical gas supply units according to EN ISO 7396-1. cupromed tubes in straight lengths meet the requirements according to EN 13348 and those according to EN 12735-1.

Your benefits

clean and dry inside surface
closed tubes ends keep the surface clean
supplier traceability through signature
standard dimensions available from stock
good processing, easy joining, very easy to unwind and bend
standard tube quality according to EN 12735-1
compliance with Pressure Equipment Directive 2014/68/EU
Requirements according to the PED/Pressure Equipment Directive 2014/68/EU

Fields of applications

cupromed is suitable for the transportation of technical gases and liquids as well as medical gas and vacuum in

medical gas supply units
refrigeration and air conditioning units

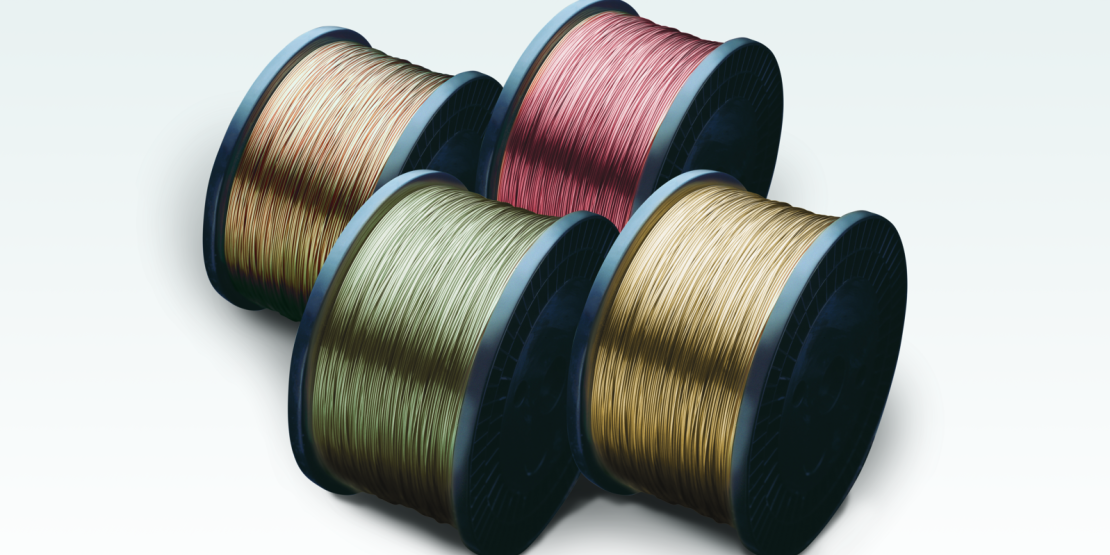

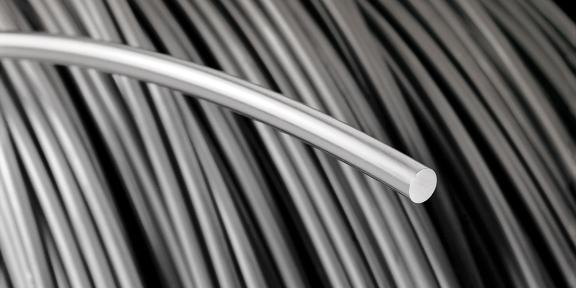

Wieland can offer you wire and sectional made of a wide range of materials: wrought copper alloys and alloys extending from brass, both with and without lead, to bronze, to German silver. And in combination with material properties, sizes, and geometries, our delivery portfolio can meet virtually every requirement. Simply contact us!

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
K10	Cu-OFE	CW009A	-
K12	Cu-HCP	CW021A	C10300
K30	Cu-OF	CW008A	C10200
K32	Cu-ETP	CW004A	C11000	C1100

Wieland	EN Designation	EN No.	ASTM UNS-No.
K41	CuNi1Pb1P*	-	C19150 / C19160
K65	CuFe2P	CW107C	C19400
K81	CuSn0,15	CW117C	C14415
KC1	CuPb1P	CW113C	C18700
eco KS2^®	CuSP	CW114C	C14700
eco KS4^®	CuNi1SP*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z29	CuZn39Pb2	CW612N	C37700
Z31	CuZn40Pb2	CW617N	C38000
Z32	CuZn39Pb3	CW614N	C38500
Z33	CuZn39Pb3	CW614N	C38500
Z40	CuZn43Pb2Al	CW624N	-
Z41	CuZn40Pb2	CW617N	C38000
Z45	CuZn36Pb2As	CW602N	C35330
Z46	CuZn36Pb2As	CW602N	C35330
Z48	CuZn40Pb2	CW617N	C38000

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco LV3^®	CuNi9Sn6*	-	C72700

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M10	CuZn10	CW501L	C22000	C2200
M15/M16/M17	CuZn15	CW502L	C23000
M20	CuZn20	CW503L	C24000	C2400
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37/M38	CuZn37	CW508L	C27200	C2720
eco M41^®	CuZn38As	CW511L	C27453
eco M57^®	CuZn42	CW510L	-
eco M58^®	CuZn42	CW510L	-
eco M59^®	CuZn42	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
S40	CuZn37Mn3Al2PbSi	CW713R	C67420
eco S34^®	CuZn34Mn2SiAlNi*	-	C67340
eco SW1^®	CuZn21Si3P	CW724R	C69300

Wieland	EN Designation	EN No.	ASTM UNS-No.
B09/B10	CuSn8	CW453K	C52100
B09/B10	CuSn8	CW453K	C52100
B44	CuSn4Pb4Zn4	CW456K	C54400
B45	CuSn4Pb4Zn4	CW456K	C54400

Wieland	EN Designation	EN No.	ASTM UNS-No.
N31	CuNi7Zn39Pb3Mn2	CW400J	-
N32	CuNi12Zn30Pb1	CW406J	-
N37	CuNi18Zn19Pb1	CW408J	-
eco N59^®	CuNi9Zn41FeMn*	-	-

Wieland Delari

Organization

Fatti

Metal Information

Products

Our products at a glance

Product categories

Headline

Materials

Materials

Materials

Materials

Materials

Materials

Lead-free alloys for all parts in contact with drinking water

Lead-free alloys for signal and current-carrying components

Lead-free alloys for automotive components

Lead-free alloys for accessories

Materials

Materials

Materials

Materials

K65 - Sustainable and efficient

More K65 products in other categories

Your benefits

Typical applications

Technical properties

Further information

cuproclima

Your benefits

Fields of application

Technical Properties

Copper tubes with ultra clean inner surface for industrial applications

Your benefits

Fields of application

Technical properties

High formable copper tubes

Your benefits

Fields of application

Technical properties

Copper tubes with high-purity outer surface for solar thermal applications

Technical properties

Available materials

Materials

K65 - Sustainable and efficient

More K65 products in other categories

Your benefits

Typical applications

Technical properties

Further information

cuprofin-Standard

Your benefits

Fields of application

Technical properties

Further Information

cuprofin-C tubes for condensors

Your benefits

Fields of application

Technical properties

Further Information

cuprofin-E tubes for evaporators

Your benefits

Fields of application

Technical properties

Further Information

cuprofin-EDX tubes for injection

Your benefits

Fields of applications

Technical properties

Further Information

cuprofin-G tubes for single-phase heat transfer

Your benefits

Fields of application

Technical properties

Further Information

cuprofin-L10 tubes for seawater applications

Your benefits

Fields of application

Technical properties

Further Information

The new standard in copper tubes: cuprolife^®.
