Wieland Fudickar GmbH, founded in 1948 and part of the Wieland Group since 2009, is one of the well-known trading companies in North Rhine-Westphalia. The product range comprises about 1500 articles in the form of pressed, drawn and rolled products made of brass, copper, bronze, nickel silver, aluminium and special alloys.
- Empty container Pick-Up
- Recycling, Reworking
Organization
Business hours
Monday - Friday
7.30 am - 4:30 pm
7.30 am - 4:30 pm
Goods acceptance times
Monday - Thursday
7:00 am - 1:00 pm
7:00 am - 1:00 pm
Facts
1948
founded in Wuppertal
100
% owned by Wieland-Werke-Ag
4
employees
Metal Information
Current metal prices
Officials (Prompt)
22.09.2023
Cu (Settlement)
8,188.00 USD/to
Zn (Settlement)
2,532.50 USD/to
EUR (Bid)
1.06070 USD
Products
Our products at a glance
Product categories
Headline
Back to product overviewMedium-high finned tubes
High finned tubes
Coaxial heat exchanger WKE | WKC
Wieland WRK
Wieland safety heat exchanger
Finned tube heat exchanger WRW
Ingots

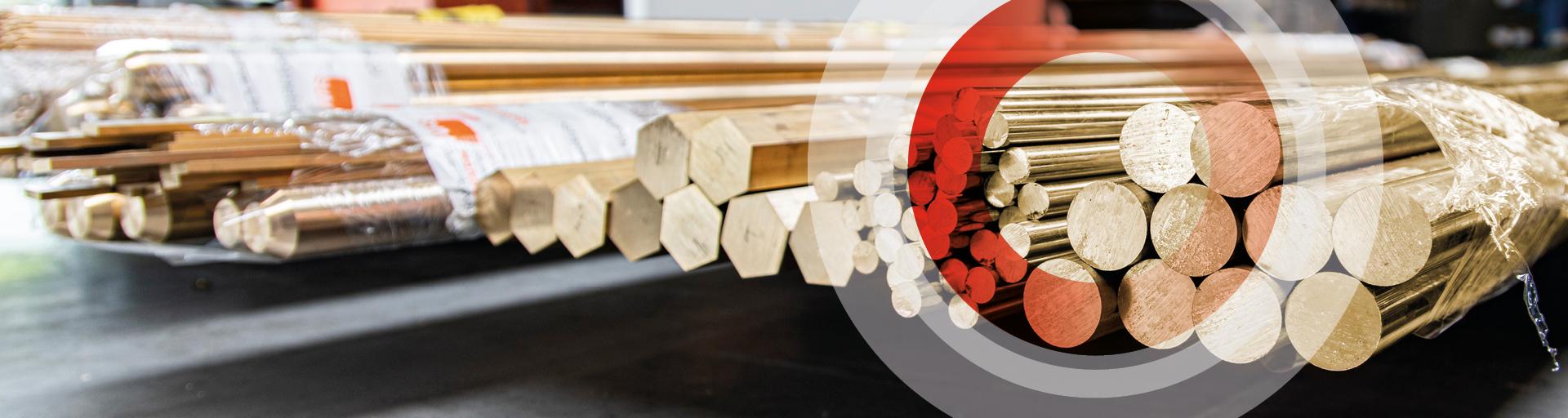

Rods
Precision continuous casting
Forging Stock
Strip
Sheets and Plates
Plumbing tubes
Tubes
For compact coils and bent shapes
Medium-high finned tubes feature a significantly larger heat transfer surface area compared to plain tubes. They are ideal for compact and high-performance coils and shell-and-tube heat exchangers. Wieland medium-high finned tubes are a proven and robust solution for water heaters, storage tanks, refrigerant condensers, oil coolers, gas coolers or safety heat exchangers and more.
Your advantages at a glance
- High surface enlargement compared to plain tubes
- Ideal for compact and robust heat exchangers
- Excellent bending properties and processability
- Availability of various dimensions, internal structures and materials
Materials
GEWA-D finned tubes made of copper and copper alloys are available in a wide range of sizes and withstand the highest mechanical and thermic stress. They are specially made for the individual geometries of complex heat exchangers. Copper offers the highest heat conductivity of all technical metals. It is superior in processing, hygienic and a corrosion resistant solution.
* Material not standardized in EN
Our Materials
We offer the widest range of material in the industry and can extend it on request in case of special requirements for heat conductivity, mechanical properties or corrosion resistance. Medium-high finned tubes from Wieland Thermal Solutions are available in copper, copper-nickel, aluminium and carbon steel as well as in stainless steel in limited range.
You can find more information here
For highest efficiency in controlling the temperature of gases and liquids
High-finned tubes have a much greater outer surface area than smooth tubes. This allows for particularly compact designs. Thanks to their high, thin fins, these tubes perform particularly well in the heating and cooling of liquids and gases, making them an excellent choice for applications in heating technology, as well as in machinery and plant engineering.
Your advantages at a glance
- Highest surface enlargement compared to plain tubes (up to factor 18)
- Enables particularly compact and robust designs
- Available in straight lengths or as coiled heat exchanger
- Also available as bimetallic version GEWA-HB
Materials
GEWA-H tubes are available in a wide variety of sizes, either in straight sections or as coiled heat exchangers. They are primarily used as heat exchangers in gas boilers and as oil and gas coolers in applications related to machinery and plant engineering.
GEWA-HB tubes are high-finned tubes with a fixed inner tube made of a different material. This allows for more corrosion resistant (premium) materials to be used in combination with other, less expensive materials.
* Material not standardized in EN
Our Materials
We offer you a broad portfolio of materials and can expand our offering at any time to meet your specific needs regarding thermal conductivity, mechanical properties, or corrosion resistance. High-finned GEWA-H tubes made by Wieland Thermal Solutions are already available in copper, copper-nickel and aluminum.
In the GEWA-HB tube materials like carbon steel, stainless steel, titanium or almost any other material like brass and nickel can be used for the inner tube.
You can find more information here
In coaxial heat exchangers, fluids are ideally conducted in counter-flow directions. The Wieland WKE and WKC series have been optimized for the condensation or evaporation of refrigerants and are used in reciprocating chillers and heat pumps.
Your advantages at a glance
- High specific power due to optimized inner tubes
- Flow guidance in counterflow
- Insensitive to frost
- Low fouling tendency
- Long service life
- Reversible operation possible
- Standard designs from stock
You can find more information here
Data sheet WKC | WKE
Our wholesaler for standard heat exchanger
Calculate your coaxial heat exchanger directly online:
ThermalS
* Material not standardized in EN
WRK finned tube heat exchangers are suitable for efficient direct condensation and evaporation in heat pump buffer tanks. The inner grooved surface of the used finned tubes optimize the heat transfer. Thus highest COP-values are possible even with smallest temperature differences.
Your advantages at a glance
- Efficient: Highest COP values due to direct integration of the heat exchanger in the storage tank
- Filling volume optimized: Smallest refrigerant volumes due to compact design
- Easy handling: Easy replacement and maintenance
You can find more information here
* Material not standardized in EN
Hygienic and compact: Wieland Safety Heat Exchangers are ideal for the direct heating of water for domestic use by condensing the refrigerant within the tank. The double-walled model offers additional safety against contamination and complies with the guidelines for ensuring the quality of drinking water.
4 good reasons for the Wieland safety heat exchanger series
- Cost-effective | Benefit from higher performance with the lowest refrigerant and material consumption!
- Efficient | Achieve the highest COP values according to DIN EN 16147 by installing the heat exchanger directly in the storage tank.
- Safe | Rely on absolutely reliable media separation through double tubes
- Easy handling | Reduce your effort for installation and replacement.
You can find more information here
More about direct condensation in the storage tank
Data sheet Safety Heat Exchanger
Our wholesaler for standard heat exchanger
* Material not standardized in EN
Storage heating, circulation heating of domestic water, protecting solid fuel boilers from overheating, or controlling the temperature of oils and emulsions: With our WRW series of heat exchangers, you are putting your trust in highly developed, compact solutions that are ready to install.
Your advantages at a glance
- Compact design due to high thermal conductivity of copper combined with increased heat transfer area
- Proven corrosion resistance
- Retrofittable due to compact spiral design
- Standard designs from stock
You can find more information here
* Material not standardized in EN
Ecocast Properties
Wieland | EN Designation | EN-No. | ASTM-UNS-No. |
|---|---|---|---|
CuZn21Si3P-C | CC768S | C87850 | |
| CuZn21Si3P-B | CB768S |
|
High mechanical strength
Its grain refiner ensures an extremely fine grain size, facilitating even distribution of force throughout the entire structure. The result: strength and hardness otherwise only known in steel, even with thin, weight-reducing wall thicknesses.
Improved casting
Thanks to its fine-grained structure, Ecocast is ideal for filigree components.
Reduced waste
In every situation where you were previously dependent on red brass for filigree shapes, the high amount of waste of this conventional material is eliminated with Ecocast.
Excellent machinability
Ecocast and its special chemical composition also makes reworking cast parts through machining, grinding, polishing, or coating safe, precise, and cost-effective.
Top-rate corrosion resistance
The fine-grained structure through and through also means minimal dezincification on the surface due to touching, oxidation, or cleaning.
The future is lead-free
Secure your market lead: with Ecocast you can design and equip your products for the future, too. After all, many countries and various customers are already implementing strict regulations concerning the use of lead-free materials.
Universal
Ecocast can be cast both in ingot molds and in sand. The material is standardized under CC768S in EN 1982.
Ecocast: The New Material for Sanitary Installations
Ecocast is the perfect material for sanitary installations, not just for meeting drinking water regulations in the future, but also mainly for meeting current cost-efficiency requirements. Thanks to its high mechanical strength, Ecocast achieves wall thicknesses that help significantly reduce weight and save on materials and costs without compromising on stability. Moreover, Ecocast can handle forces (or moments) that until now have only been reserved for steel. The fine-grained structure and lack of lead produce surfaces that are aesthetically impeccable when Ecocast parts are coated.
Functional Properties, Long-Lasting Look
The extremely corrosion-resistant brass material Ecocast has a premium golden surface that is especially long -lasting, making it suitable even for frequently used objects and room fixtures made from cast parts. Ecocast also has high color stability and resistance to degradation caused by contact, air humidity, or intensive cleaning, which increases hygiene safety in hospitals, clinics, and nursing care institutions. - The innovative cast material from Wieland retains its functional properties even with heavy day-to-day use.
* Material not standardized in EN
Materials
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K12 | Cu-HCP | CW021A | C10300 |
| K18/K32 | Cu-ETP | CW004A | C11000 |
| K20/K21/K28 | Cu-DHP | CW024A | C12200 |
| K30 | Cu-OF | CW008A | C10200 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K41 | CuNi1Pb1P* | - | C19150 / C19160 |
| K52 | CuNi2Si | CW111C | C70260 |
| K53 | CuNi2SiS* | - | - |
| K54 | CuNi2SiCr* | - | C81540 |
| K60 | CuCr1Zr | CW106C | C18150 |
| K61 | CuCr1Zr | CW106C | C18200 |
| K65 | CuFe2P | CW107C | C19400 |
| K81 | CuSn0,15 | CW117C | C14415 |
| KC1 | CuPb1P | CW113C | C18700 |
| eco KS2® | CuSP | CW114C | C14700 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| Z11 | CuZn35Pb1 | CW600N | C34000 | |
| Z12 | CuZn35Pb2 | CW601N | C34200 / C34500 | |
| Z14 | CuZn37Pb2 | CW606N | C35300 | |
| Z21 | CuZn38Pb2 | CW608N | C3713 | |
| Z23 | CuZn36Pb3 | CW603N | C36000 | |
| Z29 | CuZn39Pb2 | CW612N | C37700 | |
| Z31/Z41/Z48 | CuZn40Pb2 | CW617N | C38000 | |
| Z32/Z33 | CuZn39Pb3 | CW614N | C38500 | |
| Z40 | CuZn43Pb2Al | CW624N | - | |
| Z43 | CuZn33Pb1AlSiAs | CW725R | - | |
| Z45 | CuZn36Pb2As | CW602N | C35330 | |
| Z46 | CuZn36Pb2As | CW602N | C35330 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| L10/L13/L15 | CuNi10Fe1Mn | CW352H | C70600 |
| L30 | CuNi30Mn1Fe | CW354H | C71500 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M10 | CuZn10 | CW501L | C22000 | C2200 |
| M15/M16/M17 | CuZn15 | CW502L | C23000 | |
| M20 | CuZn20 | CW503L | C24000 | C2400 |
| M30/M34 | CuZn30 | CW505L | C26000 | C2600 |
| M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
| M37/M38 | CuZn37 | CW508L | C27200 | C2720 |
| eco M41® | CuZn38As | CW511L | C27453 | |
| eco M57® | CuZn42 | CW510L | - | |
| eco M58® | CuZn42 | CW510L | - | |
| eco M59® | CuZn42 | CW510L | - | |
| eco M60® | CuZn40 | CW509L | C27450 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| S40 | CuZn37Mn3Al2PbSi | CW713R | C67420 |
| eco S34® | CuZn34Mn2SiAlNi* | - | C67340 |
| eco SW1® | CuZn21Si3P | CW724R | C69300 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| B06 | CuSn6 | CW452K | C51900 |
| B09/B10 | CuSn8 | CW453K | C52100 |
| B12/B21 | CuSn8P/CuSn8 | CW459K/CW453K | C52100 |
| B44/B45 | CuSn4Pb4Zn4 | CW456K | C54400 |
| B44/B45 | CuSn4Pb4Zn4 | CW456K | C54400 |
| BV9 | CuSn6 | CW452K | C51900 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| U35 | CuAl10Ni5Fe4 | CW307G | C63020 |
| U36 | CuAl11Fe6Ni6 | CW308G | - |
* Material not standardized in EN
From Europe’s largest copper alloy foundry in Vöhringen/Iller (Germany), we can offer you far in excess of a hundred different copper materials. These include not only a wide range of continuous castings like tubes and rods, but also shaped rods and sections of complex geometries. At the same time, our flexibility ensures the prompt realisation of your special custom wishes.
Materials
| Wieland | EN Designation | EN No. | ASTM UNS-No. | Dimensions | Temper |
|---|---|---|---|---|---|
| G05 | CuSn5Zn5Pb5-C-GC | CC491K | - | ||
| G07/G08 | CuSn7Zn4Pb7-C | CC493K | - | 22 × 12 bis 312 × 52 mm | extruded/drawn |
| G07/G08 | CuSn7Zn4Pb7-C | CC493K | - | 32x12 to 123x23 mm | cast |
| G07/G08 | CuSn7Zn4Pb7-C | CC493K | - | ||
| G10 | CuSn10-C | CC480K | - | ||
| G12/G13 | CuSn12-C | CC483K | - | 22 × 12 bis 312 × 52 mm | extruded/drawn |
| G12/G13 | CuSn12-C | CC483K | - | ||
| G12/G13 | CuSn12-C | CC483K | - | ||
| G21 | CuSn10Pb10-C-GC | CC495K | - | ||
| G91 | CuSn11Pb2-C-GC | CC482K | - | extruded/drawn | |
| G91 | CuSn11Pb2-C-GC | CC482K | - | ||
| GA1 | CuSn11Pb2-C-GC | CC481K | - | ||
| GD1 | CuSn5Zn5Pb2-C-GC | CC499K | - | ||
| eco GS1® | CuSn4Zn2PS-C-GC* | - | - |
* Material not standardized in EN
Wieland hot stamping rods
Good forging results can be obtained only when all links in the process chain have been matched to each other to the optimal effect. With Wieland hot stamping rods you are offered a forging stock which comprehensively fulfils these requirements. Your benefits: uniform dark surface for reproducible processing properties, tight diameter tolerances in the drawn size range, and hence precise configuration of the slug weight.
Materials
| Wieland | EN Designation | EN No. | ASTM UNS-No. | Dimensions | Temper |
|---|---|---|---|---|---|
| Z31 | CuZn40Pb2 | CW617N | C38000 | Ø 16 – 140 mm | M |
| Z32 | CuZn39Pb3 | CW614N | C38500 | Ø 16 – 140 mm | M |
| Z33 | CuZn39Pb3 | CW614N | C38500 | Ø 16 – 140 mm | |
| Z41 | CuZn40Pb2 | CW617N | C38000 | Ø 16 – 140 mm | |
| Z45 | CuZn36Pb2As | CW602N | C35330 | Ø 16 – 140 mm | |
| Z46 | CuZn36Pb2As | CW602N | C35330 | Ø 16 – 140 mm | |
| Z48 | CuZn40Pb2 | CW617N | C38000 | Ø 16 – 140 mm |
* Material not standardized in EN
Learn more
Strips for connector
Hot dip tinned copper and copper-alloy strip
Strip for semiconductor packages
Materials
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| K09 | Cu-OFE | CW009A | C10100 | C1011 |
| K11 | Cu-OF | CW008A | C10200 | |
| K12 | Cu-HCP | CW021A | C10300 | |
| K14 | Cu-PHC | CW020A | C10300 | |
| K19 | Cu-DHP | CW024A | C12200 | C1220 |
| K32 | Cu-ETP | CW004A | C11000 | C1100 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K65 | CuFe2P | CW107C | C19400 |
| K80 | CuFe0,1P* | - | C19210 |
| K81 | CuSn0,15 | CW117C | C14415 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K55 | CuNi3Si1Mg* | - | C70250 |
| K57 | CuNi1Co1Si* | - | C70350 |
| K58 | CuNi3Si1Mg | - | C70250 |
| K73 | CuNi1ZnSi* | - | C19005 |
| K75 | CuCrSiTi* | - | C18070 |
| K76 | CuNiSiP* | - | C19010 |
| K82 | - | - | C15100 |
| K88 | CuCrAgFeTiSi* | - | C18080 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M42 | CuZn42 | CW510L | - | |
| Z21 | CuZn38Pb2 | CW608N | C3713 | |
| Z30 | CuZn39Pb2 | CW612N | C37700 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M05 | CuZn5 | CW500L | C21000 | C2100 |
| M10 | CuZn10 | CW501L | C22000 | C2200 |
| M15 | CuZn15 | CW502L | C23000 | C2300 |
| M20 | CuZn20 | CW503L | C24000 | C2400 |
| M30 | CuZn30 | CW505L | C26000 | C2600 |
| M33 | CuZn33 | CW506L | C26800 | C2680 |
| M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
| M37 | CuZn37 | CW508L | C27200 | C2720 |
| M38 | CuZn37 | CW508L | C27200 | C2720 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| S12 | CuSn3Zn9 | CW454K | C42500 | C4250 |
| S23 | CuZn23Al3Co | CW703R | C68800 |
* Material not standardized in EN
We can offer you a wide range of materials, geometries, and surface qualities to choose from. Many geometries are available from our sheets stores.
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| K55 | CuNi3Si1Mg* | - | C70250 |
| K57 | CuNi1Co1Si* | - | C70350 |
| K58 | CuNi3Si1Mg | - | C70250 |
| K73 | CuNi1ZnSi* | - | C19005 |
| K75 | CuCrSiTi* | - | C18070 |
| K76 | CuNiSiP* | - | C19010 |
| K82 | - | - | C15100 |
| K88 | CuCrAgFeTiSi* | - | C18080 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| Z21 | CuZn38Pb2 | CW608N | C3713 | |
| Z30 | CuZn39Pb2 | CW612N | C37700 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M05 | CuZn5 | CW500L | C21000 | C2100 |
| M10 | CuZn10 | CW501L | C22000 | C2200 |
| M15 | CuZn15 | CW502L | C23000 | C2300 |
| M20 | CuZn20 | CW503L | C24000 | C2400 |
| M30 | CuZn30 | CW505L | C26000 | C2600 |
| M33 | CuZn33 | CW506L | C26800 | C2680 |
| M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
| M37 | CuZn37 | CW508L | C27200 | C2720 |
| M38 | CuZn37 | CW508L | C27200 | C2720 |
* Material not standardized in EN
Available materials
| Wieland | EN | EN-Nr. | UNS |
| K20 / K21 / K28 | Cu-DHP | CW024A | C12200 |
Materials
Reliable for all areas of home installation
For many years, installers have been relying on SANCO branded copper tubes. The tubes are very reliable, suitable for all areas of domestic installation and have more than proven their worth in practice. Whether drinking water supply (hot and cold), heating systems, oil, gas and liquid gas supplies as well as thermal solar systems: Wieland SANCO tubes are always the right choice and, of course, covered by the relevant regulations.
Technical features
- Patented manufacturing process: SANCO tubes are significantly better than required by standards and regulations.
- Design according to EN 1057, quality assured
- Made of pure copper Cu-DHP
- With quality mark and DVGW certification:
DV-7204AU2106 (12 to 159 mm outside diameter). - Universal use in a range of finely differentiated dimensions
- Optimum availability and compatibility with a wide range of fittings
- Maximum operating temperature: 250 °C
- Fire resistance: EN 13501-1-A1 (non-flammable)
- Dimensions according to DVGW GW 392 (12 to 159 mm) with closed tube ends
- For optimal drinking water hygiene
- Wide range of certifications available, such as Kitemark, Afnor, KIWA, DVGW and many others
Fields of application
- Domestic hot and cold water supply
- Heating systems
- Gas and oil services for heating and cooking
- Solar systems
- Rainwater
- Industrial compressed air
- Sprinkler and Fire-fighting-systems
- Further applications in consultation with our technical advisory service
* Material not standardized in EN
| Wieland | EN Designation | EN No. | ASTM UNS-No. |
|---|---|---|---|
| Z31 | CuZn40Pb2 | CW617N | C38000 |
| Z32 | CuZn39Pb3 | CW614N | C38500 |
| Z33 | CuZn39Pb3 | CW614N | C38500 |
| Z35 | CuZn36Pb2As | CW602N | C35330 |
| Z41 | CuZn40Pb2 | CW617N | C38000 |
| Z48 | CuZn40Pb2 | CW617N | C38000 |
| Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
|---|---|---|---|---|
| M37 | CuZn37 | CW508L | C27200 | C2720 |
| M38 | CuZn37 | CW508L | C27200 | C2720 |
| eco M41® | CuZn38As | CW511L | C27453 |
* Material not standardized in EN
Capabilities
Empty container pick-up
Let’s protect the environment together! We will pick up undamaged wooden packaging such as barred crates, empty packing crates, etc. free of charge.
Reworking
We accept scrap and swarf for your reworking account or will purchase the material from you at market prices.
Arrange for us to come pick up your waste with just a few clicks.
Contact person
Get in touch - Your contact person at Wieland Metal Services Germany GmbH | Hagen
Sabrina Freudenreich
Sales
Wieland Metal Services Germany GmbH | Hagen
+49 2334 9603 82
Send email
Lutz Vollmerhaus
Sales
Wieland Metal Services Germany GmbH | Hagen
+49 2334 9603 83
Send email
Carsten Eckstein
Sales
Wieland Metal Services Germany GmbH | Hagen
+492334960341
Send email
Deborah Rößler
Sales
Wieland Metal Services Germany GmbH | Hagen
+49 2334 9603 43
Send email
Wieland Fudickar GmbH
Verbandsstrasse 99
58093 Hagen
Germany
+49 2334 9603 0
+49 2334 9603 40
fudickar@wieland.com
Managing Director:
Christoph Altrichter
Registered Office: Hagen
Court of Registration: Hagen HRB 8300
VAT Identification Number: DE815109180
Career
Start your career at Wieland Metal Services Germany GmbH | Hagen
Unleash potential.
Welcome to Wieland. I am your virtual assistant.
Do you need help finding information?
Already know your search term? Then go ahead and use our full text search. You will get a list of all relevant results.
